The world of HVAC (Heating, Ventilation, and Air Conditioning) systems is vast, with numerous components working together to ensure that your home or office stays comfortable year-round. While most people are familiar with the larger components such as the air handler, furnace, or condenser unit, many are unaware of the critical role played by the transformer in an HVAC system. In this article, we will explore what a transformer is, how it works, and why it is an essential component in your HVAC system.
A transformer is an electrical device that changes the voltage of electricity passing through it. Simply put, it is used to either increase (step-up) or decrease (step-down) the voltage of an electrical signal. The basic principle behind a transformer is based on electromagnetic induction, where an alternating current (AC) in one coil induces a current in another coil that is placed near it. A transformer consists of three key components:
Primary Coil (Winding): This is the coil that receives the electrical power from the power source. The current in this coil produces a magnetic field that induces an electrical current in the secondary coil.
Secondary Coil (Winding): This coil is where the transformed electrical current is delivered. Depending on the number of turns in the secondary coil, the voltage can either be stepped up or stepped down.
Core: The core of the transformer is typically made of iron or other magnetic materials. It serves to concentrate and direct the magnetic field generated by the primary coil to the secondary coil.
In simple terms, the primary coil generates a magnetic field when electricity flows through it. This magnetic field induces a current in the secondary coil, which is then used to power electrical devices. The voltage is altered based on the number of coils in the primary and secondary windings.
The Role of a Transformer in Your HVAC System
In the context of HVAC, a transformer plays a key role in powering the low-voltage control circuits. While your HVAC system runs on high voltage (usually 220-240V or 120V for standard residential systems), it also requires a lower voltage (typically 24V) to operate the thermostat, control board, sensors, relays, and other control systems.
Powering Low-Voltage Components

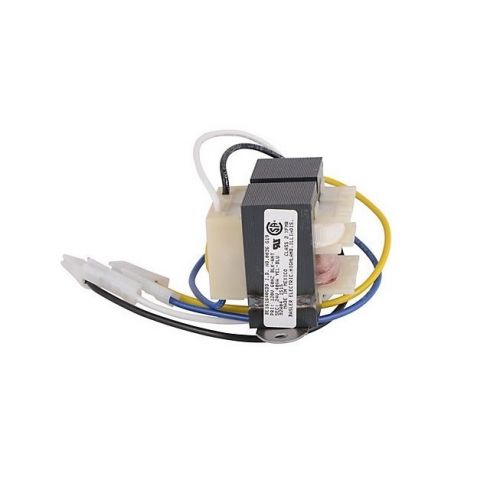

The most obvious role of a transformer in an HVAC system is to supply the 24V of electricity required by most HVAC control components. Without the transformer stepping down the voltage from the incoming high voltage to 24V, these components would either not function or be damaged by the excess voltage. The transformer allows the HVAC system to operate safely, reliably, and efficiently.
Here are a few specific HVAC components powered by the transformer:
Thermostat: This device controls the temperature of the space by regulating the heating or cooling output.Thermostats typically operate on 24V power, which is provided by the transformer.
Control Board: The control board is essentially the "brain" of the HVAC system. It governs all the system’s operations, including fan speed, temperature, and heating or cooling cycles. The control board usually operates on 24V DC (direct current), which is also supplied by the transformer.
Relay and Contactor: These are electromagnetic switches that allow low-voltage signals to control high-voltage components. For instance, a thermostat's low-voltage signal might activate a relay, which, in turn, powers the fan or compressor.
Blower Fan: The blower fan in an HVAC system is powered by 24V electricity, which is provided through the transformer. The fan circulates air throughout the system and the space, making it an essential part of both heating and cooling functions.
Zoning Systems: Some HVAC systems have zoning capabilities, where different areas of a building can be heated or cooled independently. These systems often rely on 24V signals from the thermostat to control dampers and ensure proper airflow.
Ensuring Safe Operation
A transformer ensures that the HVAC system operates within safe voltage limits. Many HVAC units are connected directly to the home’s main electrical system, which typically operates at 120V or 240V. If components like the thermostat, control board, or relays were powered by this high voltage, they would quickly be damaged or even pose a fire hazard.
The transformer prevents these safety issues by stepping down the voltage to a safe, manageable 24V for control components. Without the transformer, it would be nearly impossible for an HVAC system to function properly, as the control circuits would be incompatible with the high voltage provided by the home’s electrical supply.
Different types of HVAC transformers
There are different types of transformers used in HVAC systems. They include furnace transformers, AC transformers, heat pump transformers, and others.
Furnace Transformers:
The furnace receives power through a furnace transformer. The furnace transformer's main function is to convert high voltage input into a lower voltage output.
Timers, ignitions, circuits, and temperature controls are primarily managed by these furnaces. It serves to maintain the machine's voltage at a set level.
Air Conditioner Transformers:
A device that modifies the voltage in electrical circuits using alternating current (AC) is known as an Air conditioner transformers. Stepping voltage levels up and down is significantly simpler with AC than with DC, which is one of the main advantages of AC over DC for electric power distribution.
A magnetic circuit is not used by AC transformers to carry the electrical power produced by the voltage and their supply support from one winding to another, nor do they alter their frequency in any way. It can be used to increase or decrease the present level.
The components of a transformer for AC unit that make it function properly are primarily the core, winding, insulating materials, transformer oil, tap changer, conservator, breather, cooling tube, Buchholz relay, and explosion vent.
Heat Pump Transformers:
Heat pumps rely on transformers to regulate the voltage for the system's operation in both heating and cooling modes. These transformers help manage components like the compressor, reversing valve, and fan motors, ensuring that the system works effectively throughout the year.
Air Handler Transformers:
These transformers supply the necessary voltage to the air handler, which is responsible for circulating air throughout the system. The air handler transformer ensures proper operation of the blower motor and other components within the air handler.
Other HVAC Transformers:
Some HVAC systems also use transformers for specific applications, such as powering humidifiers, zone control systems, and low-voltage control circuits. These specialized transformers support the overall operation, ensuring energy efficiency, safety, and reliable performance across various HVAC functions. Each transformer type plays a vital role in maintaining a properly functioning HVAC system.
How Does a Transformer Work in Your HVAC System?
Now that we understand the role of the transformer, let’s delve into how it functions in a typical HVAC system.
Power Input
The first step in the process is the input of electrical power into the system. The main electrical panel of the building supplies AC voltage, which can range from 120V to 240V, depending on the HVAC system and the power needs of the building. This power travels to the transformer, where it enters the primary coil.
Voltage Step-Down
Once the electricity enters the transformer, the primary coil generates a magnetic field, which then induces a current in the secondary coil. The secondary coil has fewer turns of wire than the primary coil, and this difference in the number of turns causes the voltage to decrease. This process is referred to as "stepping down" the voltage.
For HVAC systems, this typically results in a 24V output in the secondary coil. This is a lower and safer voltage that is compatible with the control systems of the HVAC unit.
Powering the Control Circuit
Once the voltage has been stepped down to 24V, it is used to power the various components in the HVAC system. These components include the thermostat, control board, relays, and fan motors. The transformer sends the 24V AC power to these parts, which operate based on electrical signals that direct the functioning of the heating and cooling cycle, airflow, and other system operations.
For example, when the thermostat senses that the temperature has deviated from the set point, it sends a signal to the control board. This low-voltage signal then activates the appropriate components of the HVAC system to heat or cool the space. Similarly, when a zoning system is in use, the 24V signals activate the dampers to direct airflow to specific areas of the building.
Protection Mechanisms
Transformers in HVAC systems are usually equipped with safety features, including circuit breakers or fuses that can prevent damage from power surges or faults. In the event of a short circuit, these protective components will disconnect the power to the HVAC unit, preventing further damage to the system.
Common signs of a bad transformer
There are a few signs of a bad transformer. These include:
Humming and Vibrating - Transformers typically make a humming sound. It is created as a result of the iron core or laminations' expansion and contraction. However, if this sound suddenly increases and is accompanied by powerful vibrations, your HVAC system may have a faulty transformer. Other factors like improper installation or a bad capacitor could be the source of the vibrations and humming sound. Therefore, it is advisable to wait for a specialist to arrive and determine the true source of the issue.
Tripped Circuit Breaker - Thecircuit breaker typically trips when the HVAC unit's transformer malfunctions. It trips in order to prevent a voltage spike. A power spike can seriously damage the furnace and air conditioner by frying numerous elements all over the devices.
HVAC System Not Working - Even with a sufficient power supply, your HVAC equipment won't operate if the transformer is defective. This safeguard guard against serious harm to the device.
The existence of a transformer fault as the cause of the HVAC unit's problem cannot be proved with absolute certainty. This can only be learned through the process of elimination. The HVAC expert will start by addressing the most likely and straightforward reasons why the unit could not be operating. When everything else fails, they will address the more significant reasons, one of which is a faulty transformer.
Importance of Regular Transformer Maintenance
Although transformers in HVAC systems are generally low-maintenance components, they still require regular inspection to ensure they are working optimally. Over time, transformers can suffer from wear and tear, particularly due to excessive heat or physical damage.
Here are some things to look for during transformer maintenance:
Overheating: Transformers generate heat as they convert electrical energy, but excessive heat can indicate an issue. If a transformer becomes too hot, it may cause a failure in the system.
Loose Connections: Over time, electrical connections can loosen, especially in high-vibration environments like HVAC systems. A loose connection can cause electrical faults or disrupt the functioning of the transformer.
Electrical Shorts: A short circuit can cause the transformer to fail. If the transformer is not supplying 24V power to the HVAC system, it may be a sign that the transformer needs replacement.
Burn Marks or Odors: Any signs of burning or unusual smells coming from the transformer are red flags. These could indicate overheating or internal damage, which needs to be addressed immediately.
Looking for quality parts for your HVAC System? Look no further than our inventory! We have everything you need to keep your HVAC unit running smoothly.
We at PartsHnC, specialize in providing the best quality HVAC parts and accessories to customers. We offer a wide range of HVAC parts, such as filters and condensers, but also carry circuit breakers and transformers from well-known manufacturers that are 100% reliable and cost-effective. Transformers are essential components in modern HVAC systems, playing a crucial role in reducing voltage to levels that are safe and suitable for the system's various control components. Without transformers, HVAC systems would be unable to function efficiently, and sensitive parts like thermostats, relays, and control boards would be at risk of damage. By understanding how transformers work and their function in your HVAC system, you can appreciate the complexity and importance of these devices in ensuring your home or office remains comfortable year-round. Regular maintenance and attention to your HVAC system, including the transformer, will help prolong its life and prevent costly repairs.
FAQs
What causes a furnace transformer to blow?
A HVAC transformer keeps blowing in the furnace due to lightning strikes, overloading, corrosion, power surges, and moisture. These causes lead to excessive heat, sparks, and overpressure. Eventually, the transformer may burst, creating a loud noise, flash, or fireball. This can produce significant smoke visible from a distance.
How to test the furnace transformer?
Testing a furnace transformer requires knowledge of electricity. Before connecting to power, use a tester to check the voltage. If it's out of safe limits, replace the transformer. This prevents potential damage or injury from faulty transformers.
How to test your transformer on your AC?
To test your AC transformer, use a multimeter and voltmeter. Measure voltage across the terminals or current through them. Both methods help get accurate readings of voltage and amperage, revealing the performance of the transformer in your AC system.
What happens when a transformer goes bad?
A bad transformer can disrupt the power grid, often due to a faulty contactor, wiring issues, or a power surge. These problems put stress on the transformer, leading to failure. Replacing the transformer is essential to restore normal function.
Can I replace the transformer myself?
The question of whether you can replace a transformer yourself is a common one. It’s not as easy as it sounds. If you have the knowledge and skill, then yes, you can replace your transformer yourself.

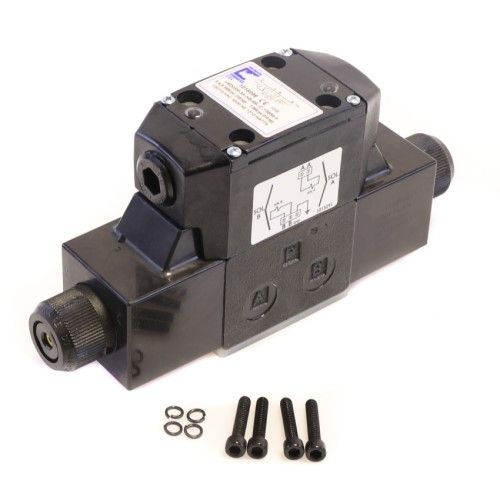

York 025-30464-000 4-Way Solenoid Valve Special Price $685.05 Regular Price $760.40
