A furnace flame rollout switch is an important safety feature that prevents your furnace from overheating and potentially causing damage or dangerous situations. If your furnace isn't working right or the flame rollout switch keeps tripping, it's important to troubleshoot the problem quickly. A faulty switch can cause a system to perform poorly or even shut down altogether, leaving you in the cold. In this guide, we will walk through common causes of issues with the flame rollout switch and provide step-by-step solutions to help you get your furnace back to optimal performance. Whether you are dealing with clogged vents, poor airflow, or other problems, understanding how to troubleshoot this switch will save you time and costly repairs.
The furnace flame rollout switch functions as a protective device which tracks the flame status inside the combustion chamber. The chamber design should maintain the flame inside its boundaries to ignite air and heat it. The combustion chamber overheating or clogging could lead to escaped flames that create fire risks.
The flame rollout switch functions as a safety device that detects abnormal furnace conditions to automatically shut down the system before dangerous damage or safety risks occur. The flame rollout switch functions as a safety mechanism that safeguards your furnace and residential property.
At PartsHnC, find a wide range of furnace parts online, including burners, heat exchangers, igniters, and flame sensors. Shop from trusted brands and enjoy quick, reliable service. Whether you need to replace or upgrade, our selection ensures your furnace runs efficiently. Get your furnace parts today at PartsHnC for hassle-free repairs!
How the Flame Rollout Switch Works in a Furnace?
The furnace flame rollout switch functions as a critical safety element which detects and stops fire from leaving the combustion chamber. The device detects potential hazards which trigger it to shut down the furnace to protect both the system and your home.
Monitoring Flames: The flame rollout switch performs continuous flame and heat monitoring of the combustion chamber to detect abnormal conditions. The switch maintains flame confinement inside the chamber to prevent safety threats.
Detection of Abnormalities: The flame rollout switch detects abnormal conditions when flames leave the combustion chamber. The furnace venting system with overheating and blockages can trigger this condition.
Shut Down: A dangerous condition detected by the flame rollout switch automatically shuts down the furnace. The shutdown function stops operation to safeguard both the furnace system and your home from fire and gas dangers.
Common Symptoms of a Faulty Furnace Flame Rollout Switch
The malfunctioning flame rollout switch creates problems for your furnace operation which produces multiple symptoms. A faulty flame rollout switch shows itself through these main indicators
Furnace Not Turning On
The furnace cannot start or even run when the flame rollout switch is faulty. It is a switch that auto-shuts down the furnace in case it identifies something is wrong with the combustion process. It will never let the furnace turn on in case this faulty switch cannot execute its intended purposes. A faulty flame rollout switch can completely shut down the operation of the furnace until it is repaired.
Frequent Furnace Shutdowns
Repeated furnace shutdowns right after startup suggest that the flame rollout switch detects a problem with the system. The switch would turn on due to combustion anomalies or safety hazards. This is followed by a shutdown of the furnace to avert potential danger or damage. Repeated shutdowns indicate the furnace is not running safely and requires professional maintenance.
Flames Visible Outside the Combustion Chamber
Visible flames outside the combustion chamber is a sign that there is a problem in the combustion of the furnace. The furnace flame rollout switch is an essential component, which is set to detect the flame that moves out of the combustion chamber. If flames exist outside the combustion chamber, the system is defective, and that may be a dangerous situation. This problem calls for urgent remedy to prevent damage or fire.
Furnace Overheating
If the flame rollout switch is faulty, it can cause the furnace to overheat because of improper venting of the combustion chamber. Overheating occurs when the furnace fails to vent gases correctly, causing the temperature to rise to unsafe levels. The switch activates to shut the system down in response to the high temperatures. Without proper ventilation, overheating can cause significant damage to the furnace.
Burning Smell
A burning smell coming from the direction of the furnace may indicate the flame rollout switch has detected an important problem. The burning may be caused by overheating, electrical faults, or leakage from the combustion chamber due to the gas. Upon detecting such anomalies, the switch can cause shutdown to safeguard the system. It is a critical problem signified by the presence of a burning smell and it needs immediate rectification to ensure that damage is not worsened.

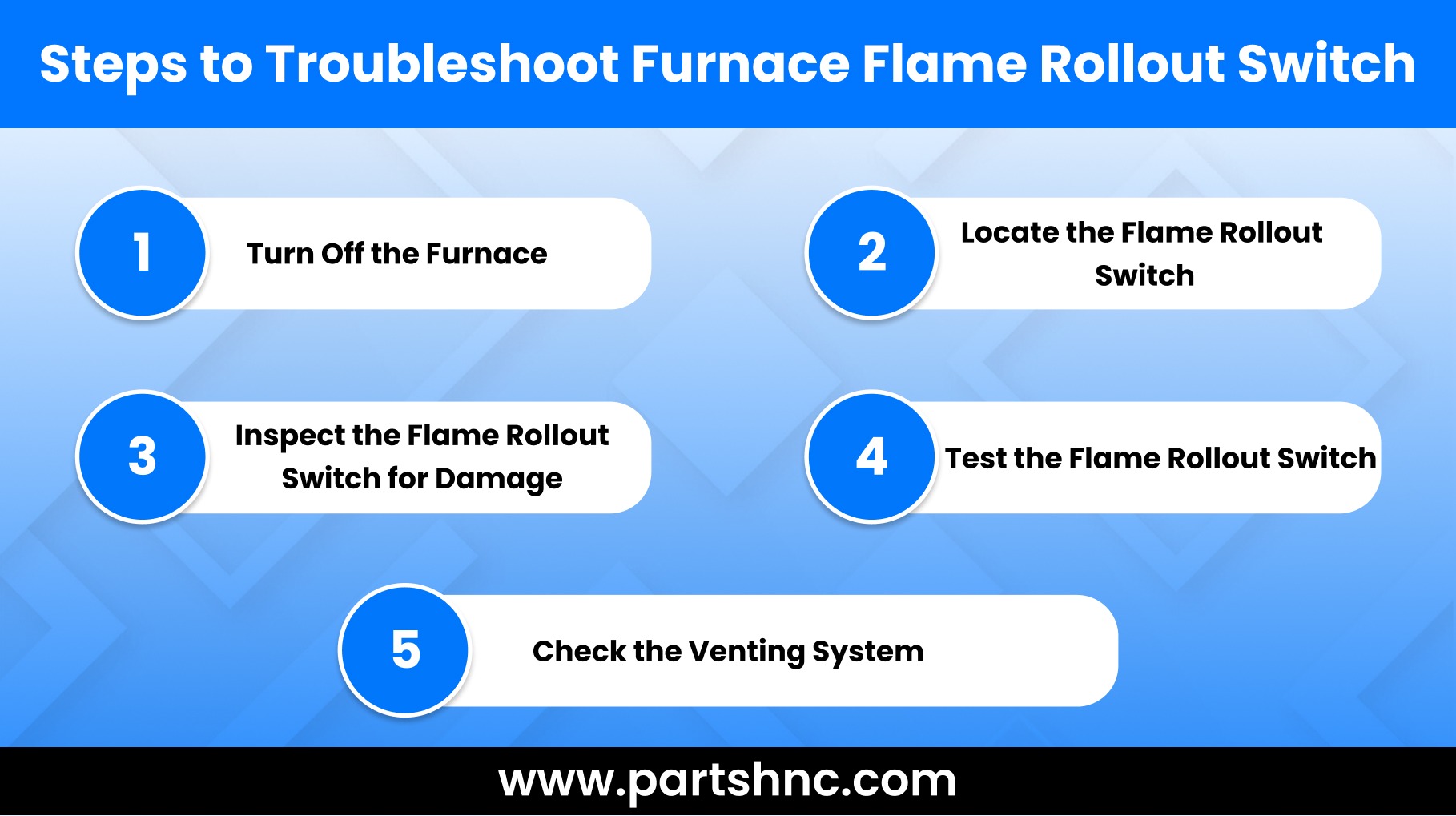

Steps to Troubleshoot Furnace Flame Rollout Switch
When your furnace displays the listed symptoms you need to perform troubleshooting tests to identify if the flame rollout switch is causing the issue. This basic troubleshooting guide requires you to try fixing through the following steps:
Step 1: Turn Off the Furnace
The first step should always be to shut off the furnace to stop both gas and electrical power from flowing. Safety is ensured through this step because it prevents both sparks and leaks during troubleshooting activities.
Step 2: Locate the Flame Rollout Switch
Follow the manual instructions to locate the flame rollout switch which exists near the burner assembly or combustion chamber. Check the switch to verify if damage or wear exists which can influence its performance. The flame rollout switch location is typically close to the combustion area, but it may vary by model.
Step 3: Inspect the Flame Rollout Switch for Damage
Check for overheating signs through burn marks or discoloration because these indicate possible damage to the system. Before testing the switch the wiring needs inspection to verify there is no loose wiring and no frayed areas while checking for the absence of dust or other obstructions on or near the switch.
Step 4: Test the Flame Rollout Switch
A multimeter on the continuity or resistance mode should be used to test the switch's operational state. The multimeter will display no continuity reading when the switch is activated which indicates the switch needs replacement.
Step 5: Check the Venting System
Check the flue pipe for blockages and debris to maintain clear venting system conditions. The furnace may overheat when a blocked vent activates the flame rollout switch.
Furnace’s flame rollout switch tripped causing it to stop functioning completely. This is an important safety feature, as it stops the furnace from overheating or catching fire. When this happens, it stops the furnace from operating until it is reset. Here’s how you can easily reset your furnace flame rollout switch:
Shut down the power: Before you carry out any type of maintenance on your furnace, it is mandatory to shut down the power. This will save you from a possible electric shock or further damage in the furnace components. You can do this either by switching off the furnace at the thermostat or by shutting off the breaker attached to the furnace. Always confirm that the furnace is fully turned off before attempting any repairs or resets.

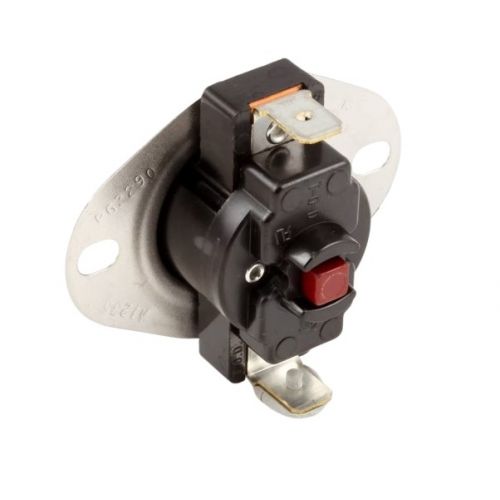

Locate the switch: The flame rollout switch is usually located near the burner assembly or control board of your furnace. It’s a small, round button typically placed on the furnace metal housing. Some models may have the switch inside the furnace door or near the flame sensor. Be sure to consult your flame rollout switch manual reset instructions if you’re unsure of the exact location.
Check for obstruction: Before the flame rollout switch can be reset, ensure that there is no obstruction in the burner or the venting system. The obstructions here may be dirt, debris, or even soot buildup, causing overheating, which can trigger the switch to flip. Check on the furnace for visible buildup, and clean parts that appear clogged. This step is an essential preventive measure against recurrence.
Reset the switch: After taking a closer look to clear out any blockages, look for the reset button on the flame rollout switch. A reset button has to be pressed hard to successfully reset. Firmly press the button until you hear or feel a click to know the switch is reset. Avoid forcing it, as this might cause damage.
Restore power: Once the reset button has been pressed, restore power to your furnace by turning the breaker or thermostat back on. Allow the furnace to cycle and test whether it is operating properly. If the furnace begins heating as normal, the reset was successful, and the issue is resolved. If the furnace does not start, further troubleshooting may be needed.
Preventing Future Flame Rollout Switch Issues
Regular furnace maintenance serves as a preventive measure to prevent future problems with a faulty flame rollout switch. These guidelines will help maintain efficient operation of the switch and other components which reduces the possibility of system failures.
Regular Maintenance: Schedule regular maintenance with a licensed HVAC professional. A technician will check your furnace components while cleaning them before verifying proper combustion operation.
Clear the Venting System: The furnace venting system needs to remain free from all the obstructions for being completely clean. Professional maintenance experts should inspect both flue pipes and intake vents at least once annually.
Check the Air Filter: Your furnace faces overheating when its air filter becomes clogged. Annual replacement of air filters produces proper airflow and enhances efficiency.
Ensure Proper Gas Flow: Check the gas lines function normally by making sure they are clean and working correctly. The combustion process and flame rollout switch activation can result from gas line blockages.
Install a Carbon Monoxide Detector: Homeowners should place carbon monoxide detectors near the furnace to detect dangerous gas leaks. The extra safety protection from system failures will be provided by this installation.
How to Know When It's Time to Replace the Flame Rollout Switch
The flame rollout switch gets worse through regular operation and heat exposure. When you observe regular furnace shutdowns or detect physical damage to its structure, then the flame rollout switch replacement is compulsory. A multimeter test for continuity provides valuable information about the correct operation of the switch.
Frequent Shutdowns: Your furnace continues shutting down after resets because the flame rollout switch requires replacement. The switch shuts off the furnace as a safety precaution after detecting an issue.
No Continuity Test Results: A multimeter test of the flame rollout switch without showing any continuity signals the switch has failed to operate. A faulty switch will produce no continuity readings which indicates that it needs replacement.
Physical Damage: The switch requires replacement when physical damage such as burns, cracks or discoloration becomes visible. The safety functions of the furnace require a new flame rollout switch when this component fails.
Age of the Furnace: The flame rollout switch deteriorates with time when your furnace operates for many years and becomes less efficient. The age of the furnace together with its operational problems might need replacement for the switch as a part of an overall system upgrade.
Persistent Symptoms: The flame rollout switch needs replacement if you cannot resolve the same issues after performing troubleshooting steps. The persistence of operational problems indicates that a replacement is necessary to guarantee safe furnace operation.
A furnace flame rollout switch functions as an essential safety to protect both the efficiency and safety of your furnace operation. The understanding of this system component and its repair techniques enables users to avoid severe problems while maintaining their equipment's extended lifespan. Regular maintenance combined with symptom observation will help you maintain your furnace at its best performance level. You should contact a professional immediately when your furnace flame rollout switch develops persistent issues.
Implementing proactive maintenance and solving furnace problems immediately results in avoiding expensive maintenance costs and dangerous equipment malfunctions. The safety of your home depends on both safe operation and correct functionality of your heating system because you need warmth alongside total security.
FAQs
What are the three items that might cause a gas furnace flame to roll out?
A gas furnace flame will roll out when the flue pipe becomes blocked or the heat exchanger cracks or the combustion chamber becomes dirty. The blocked airflow and overheating conditions create unsafe flame conditions that result from these issues.
