Alternating relays help balance equipment operation in HVAC systems by switching between pumps or compressors. Replacing faulty relays ensures balanced workload distribution, protects motors, improves efficiency, and maintains reliable system performance.
-10%Hubbell Industrial Controls 47AB10BH Alternating Relay 480VSpecial Price $1,944.48 Regular Price $2,158.37
-13%

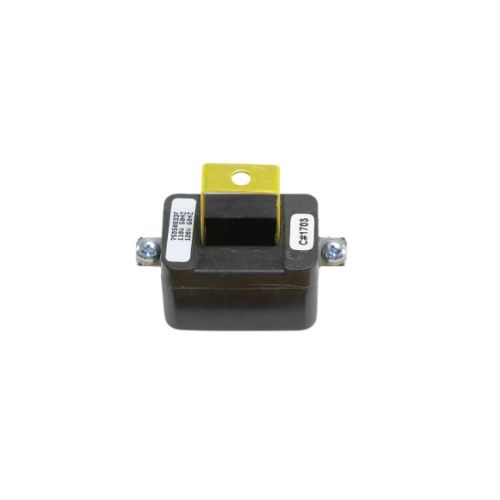

-10%Hubbell Industrial Controls 75D50833F Alternating Relay Coil 120VSpecial Price $255.17 Regular Price $283.23Out of stock- -13%Miscellaneous Product ARA-120-ADA DPDT ATC Alternating Relay 10ASpecial Price $94.75 Regular Price $108.97Out of stock

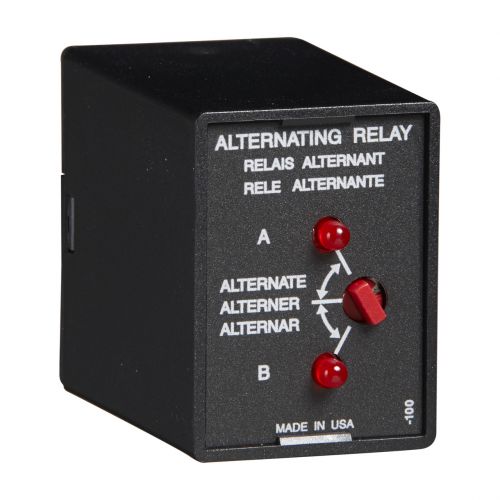

- -13%Littelfuse ARP23S DPDT 8-Pin Alternating Relay 250VSpecial Price $107.63 Regular Price $123.77Out of stock

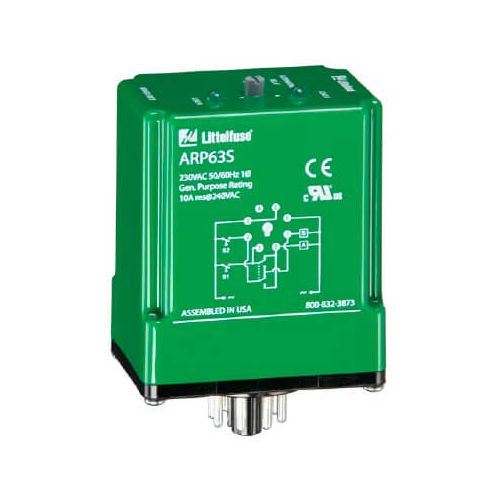

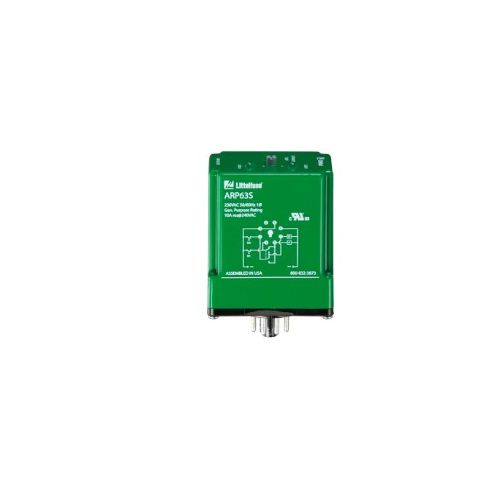

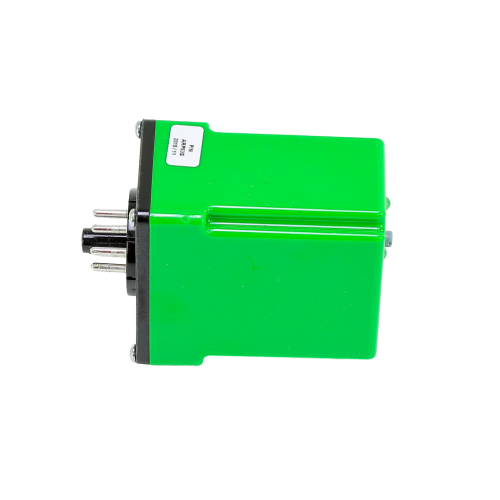

- -13%Littelfuse ARP63S DPDT 8-Pin Cross-Wired Alternating RelaySpecial Price $115.16 Regular Price $132.43

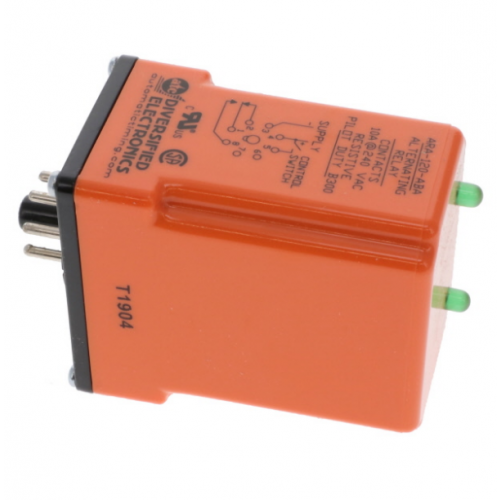

- -13%Miscellaneous Product ARA-120-ABA Alternating Relay Diversified ElectronicsSpecial Price $139.30 Regular Price $160.19Out of stock
- -13%
HVAC Alternating Relays for Pump & Compressor Control
Alternating relays are key electrical components in HVAC systems that balance operating time between two connected loads, such as pumps or compressors. A pump alternating relay automatically switches operation each cycle, reducing wear on a single unit and helping maintain consistent system operation.
A sump pump alternating relay is used in drainage systems with two pumps. It switches the active pump each cycle so both share the workload, improving reliability and ensuring a backup is ready if the primary pump fails during heavy water flow.
An air compressor alternating relay is used in HVAC and compressed air systems that operate multiple compressors. By alternating compressor operation, these relays help reduce mechanical stress, improve efficiency, and extend the lifespan of compressors and related equipment.
Signs of a failing alternating relay include pumps or compressors not switching properly, uneven operating time between units, or unexpected system interruptions. Timely replacement helps maintain balanced equipment operation and dependable HVAC performance.
PartsHnC supplies alternating relay components, including relay timers, control transformers, terminal blocks, wiring harnesses, contactor assemblies, and control panel connectors from trusted brands such as Schneider Electric, Siemens, and Johnson Controls, which are available with fast shipping.
FAQs
How does an alternating relay work in HVAC systems?
An alternating relay switches operation between two connected loads, like pumps or compressors, each time the system cycles. This balances usage, prevents continuous operation of one device, and improves system reliability.
What voltage ratings are common for HVAC alternating relays?
Most operate on 24V, 120V, or 240V control circuits. The contact rating should match the pump or compressor load to ensure safe operation.
Are alternating relays only used for pumps?
No. Alternating relays are used with pumps, compressors, and other dual-load systems to balance operation, improve efficiency, and protect equipment from excessive wear.
How do I know if my alternating relay needs replacement?
Signs include pumps not alternating, irregular compressor cycles, buzzing sounds, or delays in switching. These indicate worn relay contacts or internal failure, requiring replacement.
How do I wire an alternating relay for two pumps?
Connect the control voltage to the relay coil terminals. Then wire the output contacts to each pump contactor according to the manufacturer’s wiring diagram.
How can I test an alternating relay for proper switching?
Apply control voltage and use a multimeter to check output contacts. The active output should alternate with each control cycle, confirming correct operation.
