General-purpose relays are key components in HVAC systems, controlling compressors, fans, and heating elements safely. Proper testing, maintenance, and timely replacement ensure reliable operation, prevent downtime, and protect electrical equipment.

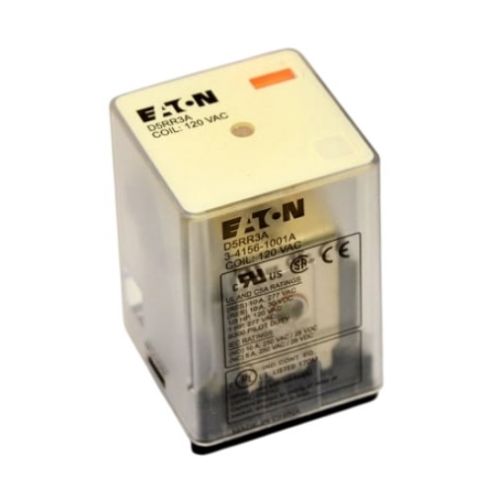

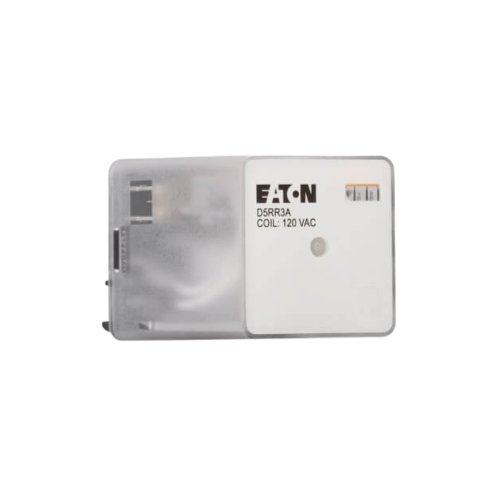

-13%Cutler Hammer-Eaton D5RR3A 11-Pin DPDT General Purpose Relay 15A 120VSpecial Price $70.61 Regular Price $81.20
-23%
-23%

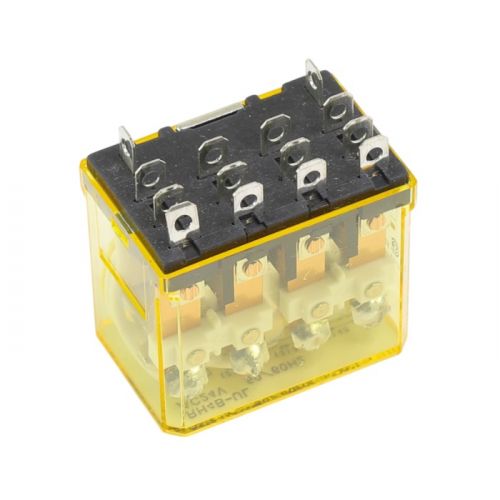

-23%- -23%IDEC Relays RH4B-ULAC24V 4PDT General Purpose Power Relay 10A 24VACSpecial Price $25.93 Regular Price $33.71
- -23%IDEC Relays RH2B-UDC12V DPDT General Purpose Relay 10A 12VDCSpecial Price $16.93 Regular Price $22.00
- -13%
- -23%IDEC Relays RH2B-UAC110-120V DPDT General Purpose Relay 110-120VSpecial Price $13.56 Regular Price $17.63
- -23%IDEC Relays RH2B-ULDC24V DPDT General Purpose Relay Plug-In 10A 24 VDCSpecial Price $21.98 Regular Price $28.57
- -23%IDEC Relays RH4B-UDC24V 4PDT General Purpose Relay 10A 24 VDCSpecial Price $32.73 Regular Price $42.55Out of stock
HVAC General Purpose Relay Replacement Parts
General purpose relays are essential switching components used in HVAC electrical systems to control circuits and automate equipment operation. These relays help manage power flow to components such as compressors, fan motors, and heating elements within HVAC control panels.
A general-purpose relay operates by energizing a coil that opens or closes electrical contacts. This mechanism allows low-voltage control signals from thermostats or controllers to safely operate higher-voltage circuits used by HVAC equipment and electrical components.
HVAC systems commonly use relay types such as pilot duty switch relays, DPDT switching relays, DPDT general purpose relays, and general purpose power relays. These relays support reliable circuit switching, equipment protection, and stable system performance in residential and commercial HVAC applications.
Signs of a failing general-purpose relay include delayed equipment startup, irregular cycling, clicking noises without activation, or complete circuit failure. Electrical arcing, worn contacts, or excessive load conditions can reduce relay performance and affect HVAC system reliability.
PartsHnC offers HVAC general-purpose relays, including time delay relays, plug-in cube relays (24V–240V), socket mount control relays (24V–277V), heavy-duty power relays (120V–480V), and industrial switching relays from trusted brands like Omron, TE Connectivity, Trane, and IDEC, with fast nationwide shipping available.
FAQs
What should technicians check before installing a replacement relay?
Always verify coil voltage, contact type, amperage rating, terminal configuration, and mounting style to ensure proper compatibility.
How can I test a general purpose relay in an HVAC control panel?
Use a multimeter to measure the relay coil resistance and confirm that the contacts switch when the rated voltage is applied.
Why is my general purpose relay clicking but not activating the load?
This usually means the coil is energizing but the relay contacts may be worn or damaged and unable to pass electrical current.
Why do relay contacts burn out in HVAC equipment?
Burnt contacts usually occur due to high inrush current, repeated switching cycles, or electrical arcing during operation.
How can I check if a 24V general purpose relay is compatible with my HVAC system?
Verify that the HVAC control circuit provides a 24-volt signal and confirm the relay contact rating matches the equipment load.
Can a faulty relay prevent an HVAC system from starting?
Yes, if the relay fails to close the circuit, power cannot reach key components like compressors or blower motors.
How do I fix a relay that is not energizing in an HVAC system?
First, check the control voltage from the thermostat or control board. If voltage is present but the relay does not activate, the relay may need replacement.
