HVAC Circuit Board Replacement Parts

HVAC circuit boards act as the central control unit for heating and cooling systems. They process signals from thermostats and sensors, directing compressors, blowers, ignitors, and motors to operate correctly, supporting smooth startups, precise temperature control, and efficient system operation.

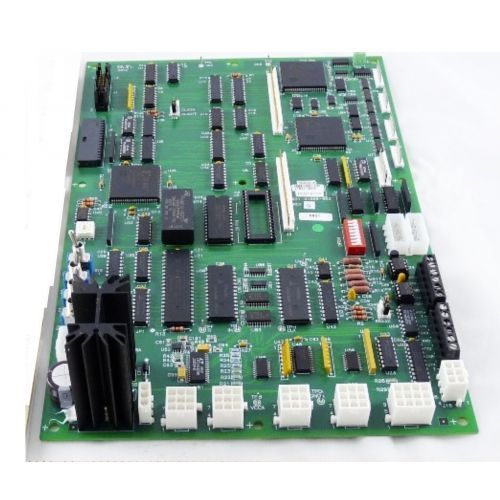

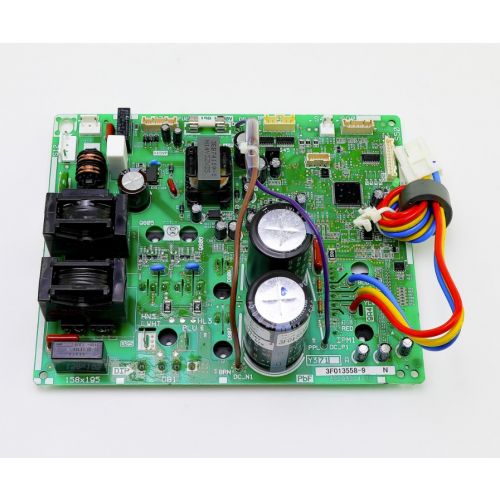

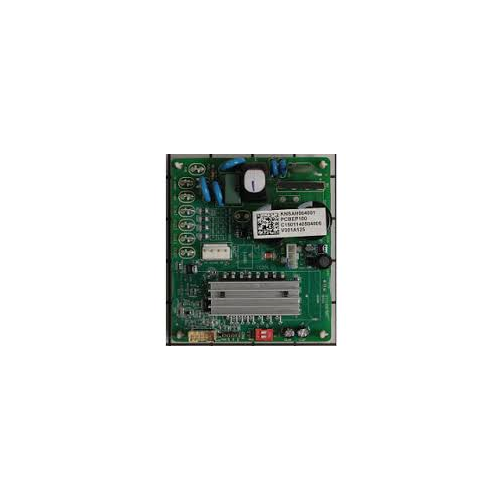

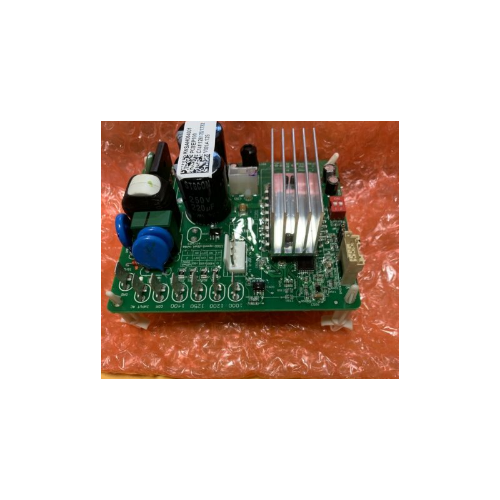

Microprocessor boards manage advanced system logic, while indoor PC boards regulate air handler operations. Printed circuit assemblies integrate multiple electronic pathways for coordinated control. Motor control boards oversee blower speed and performance, and integrated circuit boards support communication between various HVAC components.

When an HVAC circuit board fails, symptoms may include system short cycling, unresponsive thermostats, flashing diagnostic codes, failure to ignite, or complete system shutdown. Electrical surges, moisture exposure, or aging components commonly cause board damage. Prompt HVAC circuit board replacement restores system communication and prevents further equipment strain.

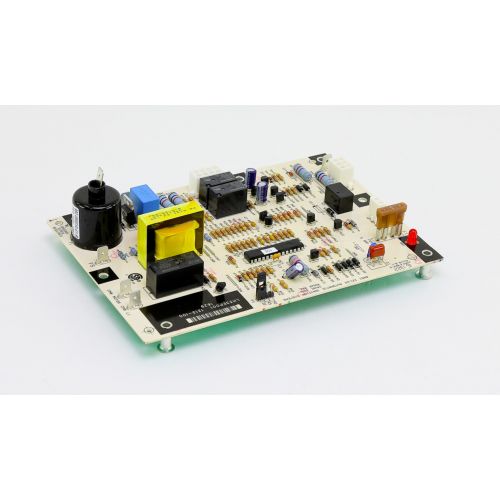

PartsHnC offers high-quality HVAC circuit board replacements, including 2-stage cooling, 2-stage HSI, economizer, fan timer, defrost, IGC, ignition control, inducer, and dual cap X13 circuit boards, compatible with leading manufacturers such as Carrier, Amana-Goodman, Lochinvar, and International Comfort Products, with fast shipping at the best prices.

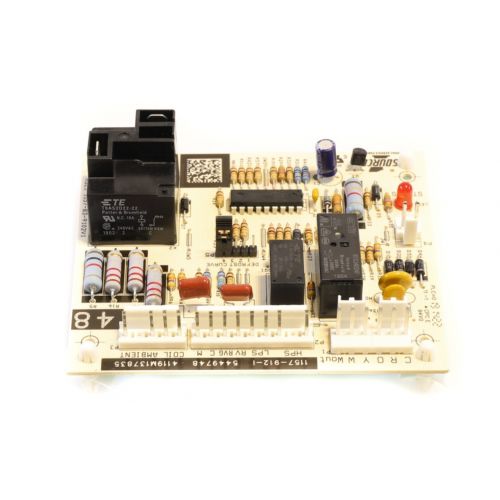

How do I know if a defrost circuit board is bad?

Indicators include improper damper operation or failed defrost cycles; test input voltage and continuity to confirm.

Can I replace a 2-stage cooling or HSI board myself?

Yes, but ensure power is off and follow the manufacturer's wiring diagrams to avoid damage or shocks.

How long do HVAC circuit boards last?

They generally last 5–10 years, depending on voltage stability and environmental conditions. Excessive heat or moisture reduces lifespan significantly.

How do I test a faulty circuit board?

Check voltage inputs, continuity, and component response with a multimeter. Board failure is confirmed when expected outputs or signals are missing.

How should I install and secure a circuit board?

Mount boards in their designated slots using proper screws or clips. Ensure all connectors are snug and wiring matches the diagram.

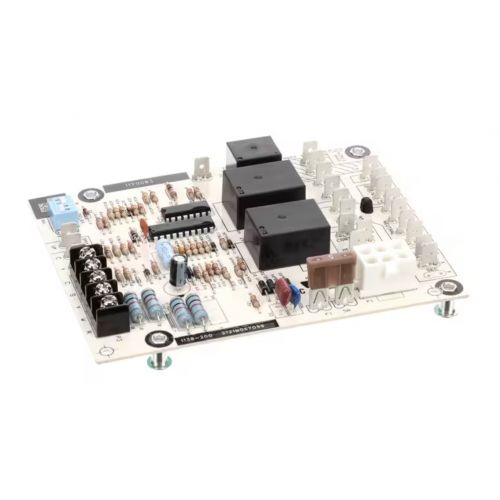

When should I replace a fan timer or dual-cap X13 circuit board?

Replace if the blower runs intermittently or the X13 motor doesn’t start; check for continuity and voltage first.
