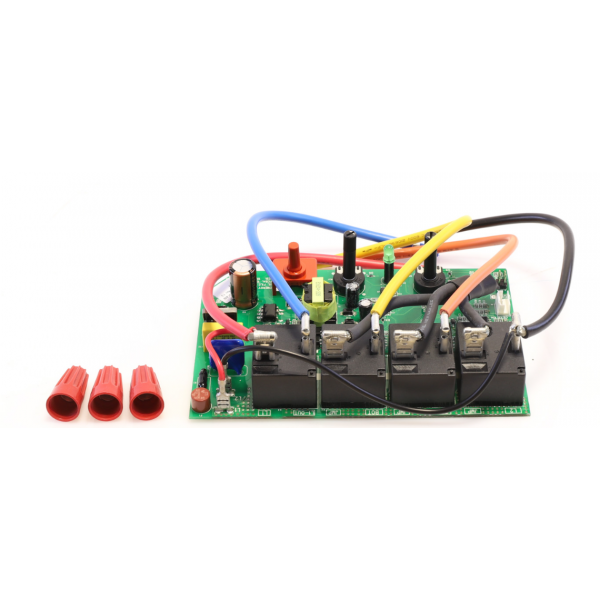

Lochinvar & A.O.Smith 100093769 Thermodisc Board Replacement Kit AWHC

Rating:
5 5 8
8  Reviews Add Your Review
Special Price $228.33 Regular Price $253.45
In stock
SKU
100093769
The Lochinvar & A.O. Smith 100093769 Thermodisc Board Replacement Kit AWHC should be considered necessary equipment for water heaters and boilers. The components of this kit are a thermodisc board that allows the control of the heating process and temperature and safety-related functions. It contributes to efficient heating of water since it constantly adjusts to the required performance and heating at the same time, it does not overheat. This is a genuine Lochinvar and A.O. Smith replacement part which brings back efficiency in a system that has failed. The advantages include enhanced efficacy and reliability in performance, and ultimately, longevity of the heating equipment; consequently, cost effective for maintaining the heated systems.
Add to Wish List
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/1/1111.png

Specifications

  • Type: Thermodisc Board Replacement Kit



    Manufacturer Name: Lochinvar & A.O. Smith
    Product Number: 100093769
    OEM Part Number: 100093769
    Product Description:  The Lochinvar & A.O. Smith K 100093769 Thermostatic Control Board is a replacement board for Lochinvar and A.O. Smith boilers and furnaces. It controls the boiler or furnace's ignition, flame, and safety functions. It is a high-quality replacement part that is made to the same specifications as the original board.  The primary function of the control board is to regulate the temperature of the water or fluid within the heating system. This is crucial to provide the desired level of warmth for various applications, whether it's domestic hot water, radiant heating, or industrial processes. The control board offers precise temperature control, allowing users to set and maintain the water temperature at specific levels. This is especially important for applications where accurate temperature control is critical for safety, comfort, or process efficiency. This control board is specifically designed to be compatible with Lochinvar and A.O. Smith heating systems. This ensures that the control algorithms and functions are optimized for these particular brands, ensuring seamless integration and efficient performance.

    Here are the key features of Lochinvar & A.O. Smith 100093769-K are:

    • Precise control
    • user interface
    • Compatible
    • energy efficient
    Weight:1.01lbs/458.13g

    Choose the best HVAC equipment parts and supplies from PartsHnC!

    • Same Day Shipping

    • Best Quality And Best Price

    • Wide Range of Inventory

    • Best Customer Service

    Have More Questions or Need Help to Place The Order?
    Reach us at (866)773-0907 or [email protected]



    Reviews 8
    Write Your Own Review
    You're reviewing:Lochinvar & A.O.Smith 100093769 Thermodisc Board Replacement Kit AWHC
    Your Rating
    Related Posts
    1. How to Replace a Dual Venturi Motor in a Navien Water Heater
    2. Rheem Water Heater Troubleshooting: Common Problems, Causes, and Fixes
    3. How Much Does It Cost to Install a Water Heater
    4. AO Smith Water Heater Troubleshooting Guide
    5. How to Reset Honeywell Water Heater?
    Product Questions (5)
    Customer Questions
    Can the K Thermostatic Control Board be used with various types of heating systems?

    The K Thermostatic Control Board is designed for specific Lochinvar and A.O. Smith heating systems. It may not be compatible with other types of heating systems due to differences in specifications.

    Is the K Thermostatic Control Board user-friendly?

    Yes. The K Thermostatic Control Board is generally designed to be user-friendly with straightforward settings and displays for temperature control and mode selection.

    How do I program the K Thermostatic Control Board?

    Programming the control board involves setting temperature preferences, operation modes, and other parameters based on your heating system's requirements. Follow the instructions provided in the manual.

    What maintenance is required for the Lochinvar & A.O. Smith 100093769 Thermodisc Board Replacement Kit?

    Regularly inspect the board and connections for dust, corrosion, or loose wiring. Clean gently with compressed air or a soft brush to prevent shorts. Verify all connections are secure to maintain proper operation. Always power down the unit before servicing to avoid electrical hazards.

    What are common issues with the Lochinvar & A.O. Smith 100093769 Thermodisc Board Replacement Kit?

    • Failure to control heating cycles properly.
    • Intermittent system operation or shutdowns.
    • Loose or damaged wiring connections.
    • Burnt or faulty components affecting system performance.

    Installation Steps

    Step1: Turn off power to the boiler or water heater to prevent electrical shock.

    Step2: Remove the access panel and disconnect wiring from the existing Thermodisc board.

    Step3: Note wire positions or take a photo for reference.

    Step4: Carefully remove the old board from its mounting.

    Step5: Install the replacement board, aligning mounting points securely.

    Step6: Reconnect all wires according to the original configuration.

    Step7: Replace the access panel, restore power, and test the system to ensure proper operation.
