Water Heater Thermocouple Troubleshooting: The Ultimate Guide on How to Fix

A malfunctioning water heater can be extremely frustrating, especially when the issue lies with the water heater thermocouple, a vital safety and operational component. If your water heater isn't producing hot water or repeatedly shuts off, the thermocouple could be the cause. This small but crucial part ensures that the gas valve remains open only when the pilot light is active. When it fails, your water heater may stop heating properly or shut off unexpectedly. This guide will help you identify signs of a faulty thermocouple, walk you through the inspection process, and show you how to troubleshoot and replace it efficiently.

What is a Water Heater Thermocouple and Why it Matters?

A water heater thermocouple is a vital component that acts as a safety device to prevent dangerous gas leaks. A metal probe detects whether the pilot light is on by generating a small electrical current when exposed to heat. The thermocouple is connected to the gas control valve, and if the pilot light goes out, the thermocouple senses the temperature drop and signals the gas valve to shut off, cutting off the gas supply.

Why it Matters:

• Prevents Gas Leaks: The thermocouple ensures that the gas supply is cut off if the pilot light goes out, which prevents the risk of gas leaks and potential explosions.

• Safe Operation: It acts as a fail-safe mechanism, maintaining the safe operation of your water heater by automatically shutting off the gas when needed.

• Faulty Ignition: Without a working thermocouple, your water heater may fail to ignite or stay lit, leaving you without hot water.

• Energy Efficiency: The thermocouple ensures the gas only flows when the pilot light is lit, preventing unnecessary gas usage, helping to optimize your water heater's energy efficiency, and reducing waste.

Without a properly functioning thermocouple, your water heater is at risk of releasing gas into your home, creating a potential fire or explosion hazard.

Looking for reliable water heater repair solutions? PartsHnC offers top-quality replacement parts from trusted brands like Rheem, AO Smith, and Bradford White. Shop essential components such as thermocouples, gas control valves, pilot assemblies, and burners—all in one place, fast and hassle-free!

Different Types of Thermocouples Used in Water Heaters

Water heaters use different types of thermocouples depending on the model and ignition system. Understanding these variations helps ensure you choose the right replacement for safe, efficient, and long-lasting operation.

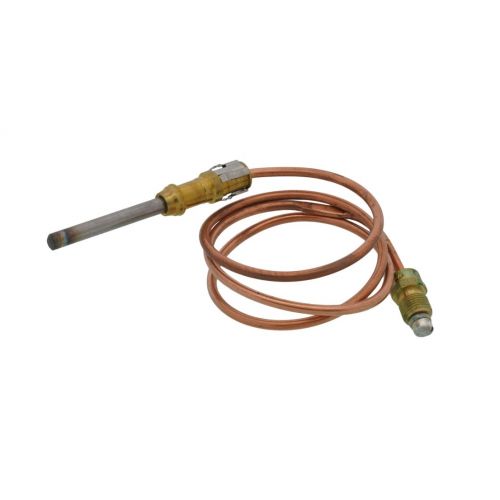

Standard Copper Thermocouple: This is the most commonly used thermocouple in residential gas water heaters.

• Typically, a few inches long

• Connects with a threaded end to the gas control valve

• Designed for standing pilot systems

• Inexpensive and easy to install

• Readily available at most hardware stores

• Ideal for traditional tank-style heaters

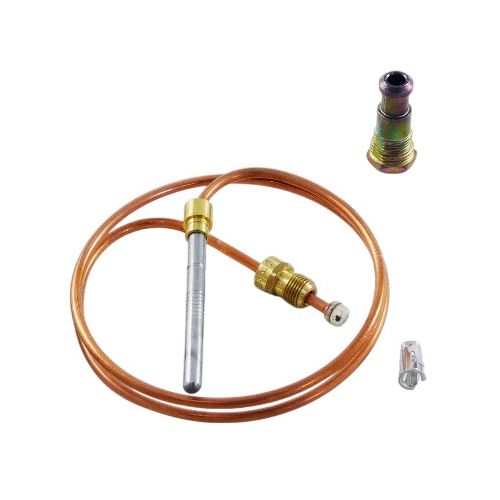

Universal Thermocouple: Universal thermocouples offer flexibility across various appliances.

• Great for DIY repairs when exact model details are unknown

• Comes with various adapters to fit a wide range of heater brands

• It may not fit all units, so checking your heater's specs is essential

• Widely available and affordable

• Easy to install with basic tools

• Helps extend the usability of older water heaters

Thermopiles: Found in modern or high-efficiency water heaters with electronic controls.

• Generates higher voltage than a single thermocouple

• Made up of multiple thermocouples connected in series

• Powers electronic gas control valves

• Suitable for units with advanced safety features or electronic ignition

• Common in energy-efficient, smart water heaters

Common Signs Your Water Heater Thermocouple Is Failing & How to Fix Them

Recognizing the signs of a failing thermocouple early can save you from more significant issues down the line. Here are some common indicators that your water heater thermocouple might be malfunctioning:

Error Codes or Warning Lights

Cause: Modern water heaters are equipped with diagnostic systems that display error codes or warning lights when the thermocouple fails. This usually indicates an unlit pilot light, improper gas flow, or other related issues.

Solution:

• Consult the Manual: When you see an error code or warning light, check your water heater’s manual for the exact meaning of the code.

• Check the Thermocouple: If the error is related to the thermocouple, begin by cleaning it with a wire brush to remove any debris or buildup.

• Test the System: After cleaning, relight the pilot and test if the error code or warning light persists. If it does, further inspection might be needed.

Erratic Heating Cycles

Cause: A failing thermocouple can lead to erratic heating cycles. The water heater may turn on and off unpredictably, resulting in fluctuating water temperatures due to inconsistent burner activity.

Solution:

• Inspect for Debris: Check the thermocouple for dirt, soot, or other debris that could be interfering with its function.

• Clean it Properly: Use a wire brush or soft cloth to clean the thermocouple, making sure it is free of obstructions.

• Test Heating Cycles: After cleaning, observe the heating cycles to ensure the water heater stays on consistently. If it still cycles erratically, further troubleshooting might be required.

Strange Noises

Cause: Strange noises, such as rumbling or popping sounds, may arise from improper gas flow regulation, often caused by a malfunctioning thermocouple. This can result in inefficient combustion and poor water heating.

 Solution:

• Check for Loose Connections: Inspect the thermocouple to ensure it’s securely connected to the gas valve and hasn’t become loose.

• Adjust or Clean the Thermocouple: If the thermocouple is covered in dirt or corrosion, clean it thoroughly. If the noises continue, ensure the thermocouple is properly aligned with the pilot flame.

Thermocouple Corrosion

Cause: Visible rust, corrosion, or discoloration on the thermocouple suggests it is no longer functioning correctly. These signs indicate the thermocouple has degraded and may be unable to detect heat or regulate gas flow properly.

Solution:

• Examine for Visible Damage: Look for signs of rust or discoloration. Corrosion can prevent the thermocouple from properly detecting heat.

• Clean the Thermocouple: If there is minimal corrosion, gently clean the thermocouple with a wire brush. Ensure it is free from buildup or damage.

Gas Odor

Cause: A noticeable smell of gas near the water heater, even when the pilot light is off, may indicate a malfunctioning thermocouple. If the thermocouple fails, it may prevent the gas valve from closing, leading to a gas leak.

Solution:

• Turn Off the gas supply: Immediately shut off the gas valve to prevent any further gas leakage.

• Ventilate the Area: Open windows and doors to allow the area to ventilate and reduce the risk of gas buildup.

• Ensure Proper Closure: Check if the gas valve is functioning properly to stop gas flow when the pilot light is off. If the smell persists, further inspection of the gas components may be necessary.

If you're experiencing any of these issues, it’s worth inspecting or replacing the thermocouple before it causes further problems.

Check out our Rheem Water Heater Troubleshooting Guide for detailed solutions.

When to Call a Professional for Thermocouple Repairs

While many thermocouple issues can be fixed through DIY methods, there are situations where calling a professional is the safest and most effective option. The following are some key scenarios when it's time to bring in an expert:

• Gas Valve or Wiring Issues: If cleaning the thermocouple doesn’t resolve the issue, it could signal a deeper problem with the gas valve or wiring. A professional can accurately diagnose and fix the issue.

• Handling Gas Safely: Repairing a thermocouple involves working with gas connections. If you’re not experienced, it’s safest to hire a professional to ensure everything is connected securely and properly.

• Water Heater Not Working: If your water heater isn’t producing hot water, the issue could be a faulty thermocouple or more complex problems like gas valve malfunctions. A professional can quickly identify and resolve the cause.

• Persistent or Recurring Issues: If your water heater keeps failing even after multiple repairs, it’s time to consult a professional who can assess if your system needs replacing or if there are other hidden issues.

Calling a professional ensures your water heater remains safe, efficient, and in proper working condition.

Check out our guide on replacing a dual venturi motor in a Navien water heater to understand when professional service is necessary.

Water Heater Thermocouple Maintenance Tips to Avoid Future Issues

While thermocouples are relatively simple components, they do require regular maintenance to ensure proper function and longevity. Here are a few tips to keep your water heater thermocouple in good working condition:

• Inspect the Flame: Regularly inspect the pilot light flame. A blue, steady flame is ideal. If you notice yellow or flickering flames, it’s worth investigating further.

• Avoid Over-Tightening: When connecting or disconnecting the thermocouple, be sure not to over-tighten the connections, as this can damage the thermocouple or the gas valve.

• Avoid Gas Valve Contamination: Prevent dust, debris, or moisture from accumulating around the gas valve or thermocouple. Contaminants can interfere with the thermocouple’s ability to function correctly, potentially leading to malfunction.

• Inspect for Gas Leaks: Regularly check for gas leaks around the thermocouple, pilot light, and gas connections. A leak could indicate a problem with the thermocouple or gas valve that needs immediate attention.

• Check the Gas Pressure: Ensure that the gas pressure is within the manufacturer’s recommended range. Low or high gas pressure can affect how the thermocouple functions and could lead to inefficient heating or pilot light issues.

• Monitor Water Heater: Keep an eye on your water heater’s performance. If the water temperature is inconsistent or the burner ignites slowly, it might be a sign that the thermocouple is beginning to fail and requires attention.

• Ensure Proper Ventilation: Ensure the water heater’s exhaust vent is clear and unobstructed. Poor ventilation can cause improper combustion, which could negatively affect the thermocouple’s ability to detect heat from the pilot light.

• Regular Temperature Checks: Occasionally, check the water heater’s output temperature. If it’s significantly higher or lower than expected, this may point to a faulty thermocouple that isn’t regulating gas flow correctly.

Check out this guide on how to clean a tankless water heater to prevent future issues with your system.

A malfunctioning thermocouple can lead to significant issues with your water heater, but with the right knowledge and tools, you can troubleshoot and fix the problem yourself. Following the inspection and replacement steps outlined in this guide, you can restore your water heater’s function and enjoy reliable hot water again. Remember, regular maintenance is key to avoiding future thermocouple failures. If you're ever uncertain about diagnosing or repairing your water heater thermocouple, don’t hesitate to consult a professional to ensure both your safety and the optimal performance of your water heater.

FAQs

How to replace a thermocouple on water heater?

To replace the thermocouple on a water heater, turn off the gas and power, then disconnect the old thermocouple from the gas control valve and replace it with a new one, ensuring it’s securely connected.

How to change a thermocouple on a water heater?

Changing a thermocouple involves turning off the gas supply, removing the access panel to the pilot light, disconnecting the faulty thermocouple, and installing the new one, making sure it is properly aligned.

How to clean the thermocouple on water heater?

To clean a thermocouple, turn off the gas, then gently use a wire brush to remove any dirt or debris, ensuring it has a clear contact with the pilot light flame for accurate detection.

What happens when a thermocouple goes out on a hot water heater?

When a thermocouple fails, it can no longer detect the pilot light, causing the gas valve to shut off as a safety measure. This means your water heater won’t stay lit or produce hot water until the thermocouple is repaired or replaced.
