Modine Hot Water Heater Troubleshooting: Expert HVAC Tips

Modine hot water heaters provide efficient heating performance, but like any system, they can experience issues over time that affect comfort and energy costs. Effective troubleshooting of Modine parts is key to detecting issues early and preventing expensive repairs or replacements. This guide offers expert HVAC tips tailored specifically for Modine hot water heaters, helping homeowners and technicians diagnose common issues such as inconsistent heating, leaks, or unusual noises. Knowing the essential Modine parts and following proper maintenance practices helps keep your system running smoothly throughout the year. Whether you’re a seasoned HVAC professional or a homeowner looking to handle minor repairs, these troubleshooting strategies will empower you to restore your Modine hot water heater’s optimal function quickly and safely.

Understanding How a Modine Hot Water Heater Works

Before troubleshooting Modine water heater parts, it’s essential to have a clear understanding of how the system operates. Modine hot water heaters use a closed-loop system to heat water and distribute it through radiators or heating panels, efficiently warming a space. Below is a breakdown of the primary components and their functions:

• Heat Source: Most Modine units rely on natural gas, propane, or electricity to warm the water inside the boiler tank.

• Boiler Tank: The water is heated to the desired temperature and stored in this insulated tank.

• Circulation Pump: Pumps heated water from the boiler through the system’s pipes and radiators, ensuring even heat distribution.

• Thermostat: It signals the boiler to turn on or off based on the predetermined heat level, regulating the temperature.

• Expansion Tank: Allows for system pressure variations brought on by the heating and expansion of water.

• Piping and Radiators: Transport the hot water throughout the building and emit heat to warm the rooms.

• Safety Valves: Prevent excessive pressure build-up and protect the system from damage.

Understanding these components helps identify where issues might occur, making troubleshooting more effective and targeted.

Common Modine Hot Water Heater Issues in HVAC Applications

Modine heater hot water is efficient, but it can experience common problems that impact its performance. Knowing these problems helps with faster diagnosis and repair.

• Thermostat Malfunction: The thermostat may fail, causing uneven or no heating throughout the system.

• Leaking Pressure Relief Valve: A faulty pressure relief valve can cause water leaks and damage the system.

• Sediment Buildup: Accumulated sediment inside the tank can cause noisy operation and reduce heating efficiency.

• Circulation Pump Failure: When the circulation pump stops working, hot water cannot flow properly, leading to cold radiators.

• Pilot Light or Ignition Problems: Gas units may fail to ignite due to dirty or malfunctioning pilot light components.

• Corrosion on Tank or Pipes: Corrosion can create leaks and shorten the lifespan of the heater.

• Expansion Tank Issues: A failing expansion tank can cause pressure fluctuations and frequent pressure relief valve activation.

Troubleshooting Heating Performance Problems in a Modine Hot Water Heater

If your heater isn’t heating like it should, effective Modine heater troubleshooting can help you spot and fix the problem fast. Follow these simple steps to restore proper heating.

Check the Thermostat Settings:

• Verify Temperature Setting: Confirm the thermostat is set to the desired temperature.

• Inspect for Damage: Check the thermostat for any visible damage or malfunction.

• Replace If Malfunctioning: Replace the thermostat when it cannot maintain a stable temperature.

• Check Wiring: Ensure the thermostat wiring is secure and connected properly.

Inspect the Circulation Pump:

• Listen for Unusual Sounds: Pay attention to any grinding or rattling noises.

• Monitor Operation: Observe whether the pump is running nonstop or not running at all.

• Clear Blockages: Clean any debris or blockage around the pump.

• Repair or Replace: Repair or replace the pump if it’s not circulating water effectively.

Examine Water Levels:

• Check Water Gauge: Check the water gauge or sight glass for proper water levels.

• Refill Boiler: Refill the boiler with water if levels are low, following manufacturer guidelines.

• Inspect for Leaks: Inspect for leaks that may cause water loss.

• Regular Monitoring: Monitor the system regularly to prevent future low water conditions.

Look for Airlocks:

• Bleed Radiators: Bleed radiators and valves to release trapped air pockets.

• Use Proper Tools: Use radiator keys or bleed valves to expel air safely.

• Listen for Signs: Listen for gurgling or knocking sounds indicating trapped air.

• Repeat if Needed: Repeat bleeding if heating remains uneven.

Check for Sediment Buildup:

• Flush System: Flush the boiler system periodically to remove accumulated sediment.

• Use Descalers: Use a chemical descaler if recommended by the manufacturer.

• Monitor Noises: Monitor for banging or popping noises that suggest sediment presence.

• Professional Cleaning: Schedule professional cleaning if sediment is severe.

Inspect Valves and Safety Devices:

• Test Valve Operation: Verify that all valves operate smoothly and leak-free.

• Replace Faulty Valves: Replace faulty pressure relief valves or check valves immediately.

• Inspect the Expansion Tank: Check the expansion tank to ensure it’s functioning properly and effectively maintaining system pressure.

• Regular Safety Checks: Regularly inspect safety devices to prevent dangerous pressure buildup.

By taking these steps, you can efficiently identify and resolve common Modine heater issues, such as inadequate heating, leaks, or circulation problems.

Check out this guide on DIY repair for Bradford White water heater thermocouple issues to help you quickly identify and fix common heating problems.

Addressing Noises, Vibrations, and Airflow Issues

Noises, vibrations, and airflow issues can reduce your Modine heater’s efficiency and comfort. Identifying and fixing these problems early prevents further damage.

Unusual Noises (Rattling, Whistling, or Humming):
Signs: Loud rattling sounds, high-pitched whistling, or continuous humming noises.

Fixes:

• Secure Loose Parts: Secure any loose panels or parts that might be the source of the vibrations.

• Examine Fan Motor: Inspect the fan motor and bearings for signs of wear or damage, and lubricate or replace them as necessary.

• Clear Debris: Remove debris or obstructions inside vents or blower assemblies causing whistling sounds.

Excessive Vibrations:
Signs: Noticeable shaking or trembling of the heater, rattling sounds during operation.

Fixes:

• Secure Mounting: Ensure the heater is firmly mounted on a stable surface.

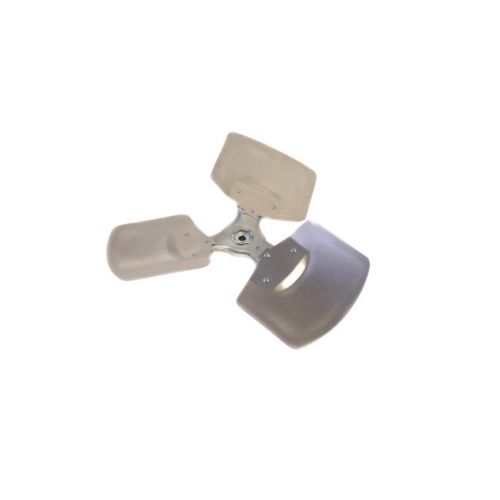

• Balance Fan Blades: Realign or balance fan blades if wobbling is detected.

• Check Mounting Hardware: Inspect brackets and fasteners, tighten or replace if worn.

Airflow Issues (Weak or Blocked Airflow):
Signs: Reduced heat output, uneven heating, or feeling weak airflow from vents.

Fixes:

• Maintain Proper Airflow: To maintain ideal airflow, clean or replace air filters on a regular basis.

• Inspect Ductwork: Look for blockages, leaks, or disconnections in ductwork.

• Check Vents and Registers: Verify that every register and vent is open and clear of impediments.

• Check Blower Motor: Confirm the blower motor operates at the correct speeds and functions properly.

Addressing noise, vibration, and airflow issues promptly improves your Modine heater’s efficiency and lifespan.

Diagnosing Water Flow and Leak Issues in Modine Hot Water Heaters

Identifying water flow and leak problems early in your Modine hot water unit heater is crucial to prevent damage and ensure efficient operation. Accurate diagnosis identifies the underlying issue and supports prompt, effective repairs.

Step 1: Check Water Flow Rate

Observe the water pressure at the faucet. Reduced or uneven water flow could signal clogged filters, sediment accumulation, or partially closed valves.

Step 2: Check Inlet and Outlet Pipes

Examine the pipes for bends, obstructions, or damage that might be limiting water flow.

Step 3: Examine All Joints and Connections

Check pipe joints, fittings, and connections for signs of moisture, corrosion, or rust stains, which often indicate leaks.

Step 4: Test Pressure Relief Valve and Drain Valve

Check if these valves are loose or faulty by looking for water dripping or pooling nearby.

Step 5: Use a Dry Cloth to Detect Leaks

Wipe suspicious areas and recheck after a few minutes to confirm if moisture reappears.

Step 6: Listen for Internal Sounds

Pay attention to hissing, dripping, or unusual noises inside the heater, which may signal internal leaks or damaged seals.

Step 7: Inspect the Tank Surface

Look for rust, cracks, or wet spots on the tank body that might indicate leaks or corrosion.

Step 8: Follow Safety Precautions

Always turn off and depressurize the unit before inspection to prevent injury and further damage.

Following these steps allows you to precisely determine if your Modine hot water heater requires repair, maintenance, or replacement.

Electrical and Control Troubleshooting in a Modine Hot Water Heater

Troubleshooting electrical and control issues in a Modine hot water heater is crucial for safe, efficient operation. These faults can cause shutdowns, erratic heating, or unresponsive controls.

Power Supply Failure

Issue: The unit receives no power due to a tripped breaker, blown fuse, or disconnected wiring.

Signs: The heater won’t turn on, no indicator lights, and no operational sounds.

Fix: Check the electrical panel for any blown fuses or tripped breakers, and repair or reset them as needed. In addition to making sure the power line is firmly attached, look for any obvious damage or loose wiring.

Thermostat Malfunction

Issue: The thermostat fails to regulate temperature accurately or initiate heating cycles.

Signs: Water is too hot, too cold, or the heater fails to activate.

Fix: Verify the thermostat's continuity and proper voltage with a multimeter. Replace the thermostat if necessary. if it is unresponsive or reading incorrectly.

Faulty Control Board

Issue: Internal damage to the control board affects system communication and function.

Signs: The heater cycles unpredictably or does not respond to temperature settings.

Fix: Inspect the control board for burnt components, loose connections, or corrosion. Replace the control board if visible damage or functional failure is detected.

Loose or Damaged Wiring

Issue: Wiring problems cause electrical interruptions or shorts within the system.

Signs: Flickering power, intermittent heating, or sudden shutdowns.

Fix: Check all connections for tightness, clean off corrosion, and ensure good contact. Replace any frayed, corroded, or damaged wires to restore reliable operation.

Pump or Valve Control Failure

Issue: Electrically operated pumps or valves fail to engage due to motor or signal failure.

Signs: The unit runs, but there is no hot water circulation to the heating zones.

Fix: Test the pump and zone valves for electrical response and motor function.

Replace any faulty components that fail to activate or operate correctly.

Safety Tip: Before performing any repairs or inspections, make sure the equipment is powered off.

Preventive Maintenance Tips for Modine Hot Water Heaters in HVAC Systems

Consistent maintenance of Modine water heater parts is essential for maintaining long-term efficiency and dependable performance. These simple checks can prevent major breakdowns and extend the life of your HVAC system.

• Inspect and Clean Heat Exchangers: Accumulated dust and debris can hinder heat transfer efficiency. Clean the exchanger surfaces to prevent overheating and performance issues.

• Flush the System Annually: Perform an annual flush to eliminate internal sediment buildup that may clog pipes and decrease heating efficiency.

• Check for Leaks: Keep an eye out for any indications of water leakage around joints, valves, and the tank. Corrosion and water damage can be avoided with early leak identification.

• Test the Thermostat: Make sure the thermostat is operating correctly because a malfunction may cause temperature fluctuations. Ensure it reads accurately and responds to adjustments.

• Inspect Electrical Components: Loose or corroded wires can lead to system failure. Look for wear or damage on all electrical connections.

• Lubricate Pumps and Moving Components: Applying proper lubrication minimizes friction and helps prolong motor lifespan. Apply lubricants where recommended by the manufacturer.

• Verify Safety Controls: Pressure relief valves and safety switches must function correctly. Test them regularly to ensure system protection.

Check out this guide on cleaning tankless water heaters to learn effective methods for maintaining your system and preventing buildup.

Conclusion

Regular troubleshooting and maintenance of your Modine hot water heater play a crucial role in preventing unexpected breakdowns and maintaining efficient operation. Being aware of common issues and how to resolve them enables you to maintain the smooth operation of your HVAC system. By taking timely action on issues like water flow disruptions, leaks, and mechanical noises, you can extend the heater’s lifespan and reduce energy costs. Ultimately, staying vigilant and following expert HVAC advice ensures consistent heating performance and a comfortable environment for your home or business.

FAQs

What is the most common problem with water heaters?

The most common problem is a lack of hot water, often caused by a faulty thermostat or heating element. Sediment buildup and leaks also frequently affect performance.

How to reset Modine heater?

Locate the reset button on the heater’s control panel, usually a red button. Press and hold it for a few seconds to reset the system.

How to troubleshoot water heater problems?

Start by checking the power supply and thermostat settings. Inspect for leaks, unusual noises, or water temperature issues to identify the cause.

Is there a reset button on a hot water heater?

Yes, many electric water heaters have a reset button, often called a high-limit switch. It’s typically located behind the access panel on the thermostat.
