How to Diagnose and Replace a Faulty Bradford White Water Heater Thermocouple at Home

Bradford White thermocouple plays a critical role in maintaining safe and consistent water heater operation by detecting the pilot flame and controlling gas flow. A defective thermocouple can cause pilot light failure, burner shutdowns, and loss of hot water. Identifying the issue early helps prevent unnecessary repairs and restores proper heater performance.

This guide explains how to diagnose a faulty Bradford White water heater thermocouple and replace it at home using the correct tools and procedures. Follow each step carefully to ensure a safe and effective replacement process.

What Is a Bradford White Thermocouple and Why Does It Fail?

A Bradford White water heater thermocouple is a safety sensor that detects whether the pilot flame is burning. It sits near the pilot burner assembly and generates a small electrical signal when heated by the flame. This signal tells the gas control valve that it is safe to continue supplying gas to the burner.

If the thermocouple does not generate enough voltage, the gas valve automatically shuts down. This safety feature prevents unburned gas from entering the room.

A Bradford White water heater thermocouple can fail because of several common issues:

• Normal wear after years of heating cycles

• Carbon buildup on the thermocouple tip

• A weak or improperly positioned pilot flame

• Loose connections at the gas control valve

• Physical damage to the thermocouple tube

• Corrosion caused by moisture exposure

• Contamination from dust or debris around the burner assembly

Most thermocouples last several years, but frequent cycling and poor burner conditions can shorten their lifespan.

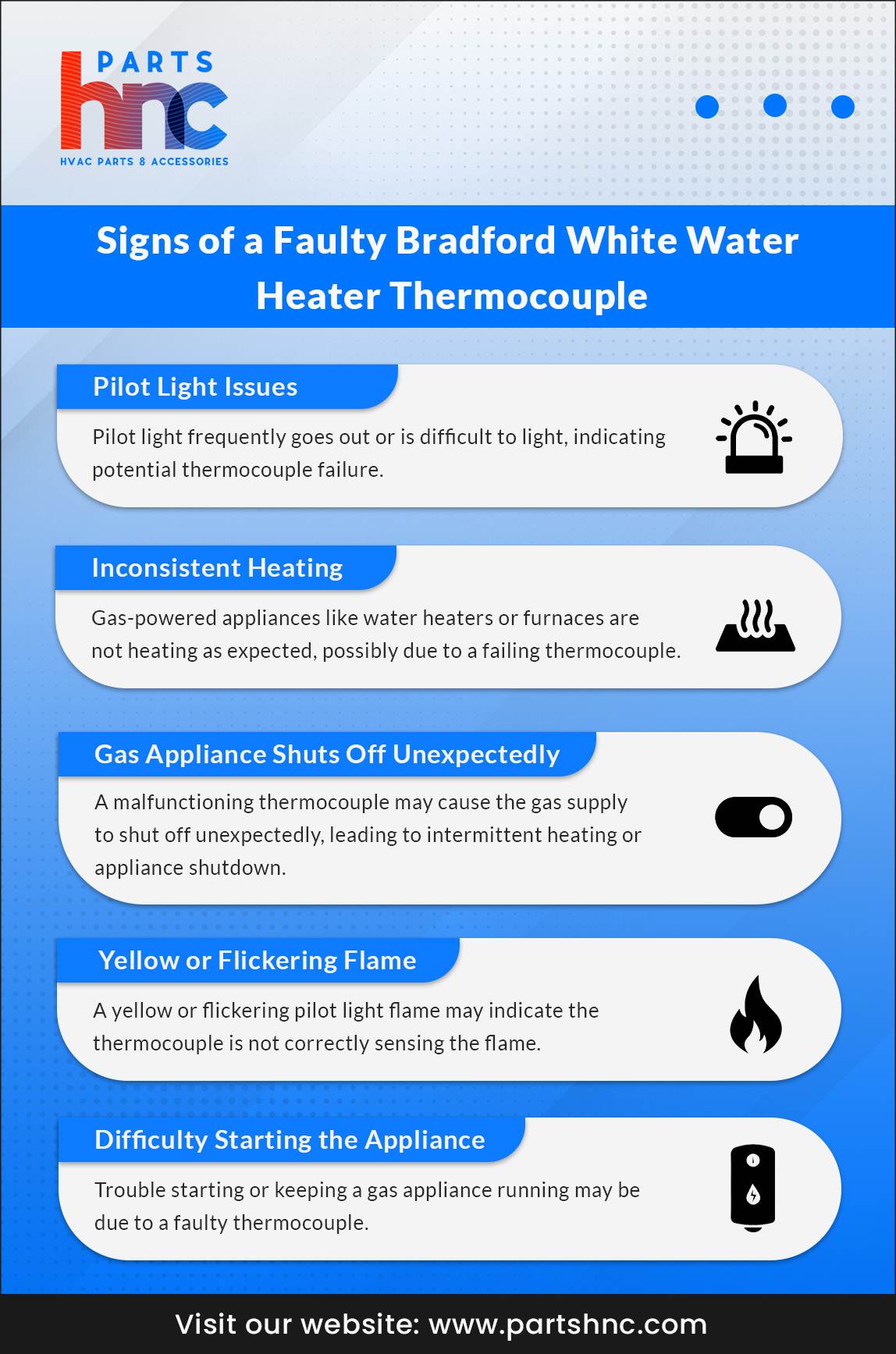

Common Signs of a Faulty Bradford White Thermocouple

A faulty Bradford White thermocouple can affect the performance of your gas water heater by interrupting pilot light and burner operation. The following signs can help identify a thermocouple-related issue:

1. Bradford White Pilot Light Will Not Stay Lit

If the pilot light on a Bradford White water heater shuts off after releasing the pilot button, the thermocouple may not be generating enough voltage to keep the gas control valve open.

2. Bradford White Burner Does Not Ignite

When the pilot remains lit, but the main burner fails to start, a weak thermocouple signal may prevent the Bradford White gas valve from allowing burner operation.

3. Bradford White Water Heater Loses Hot Water

A failing thermocouple can stop the burner from operating correctly, causing the Bradford White water heater to produce cold or lukewarm water.

4. Bradford White Defender Pilot Light Keeps Going Out

A Bradford White Defender pilot light keeps going out when the thermocouple fails to maintain proper operation, requiring frequent relighting during normal use.

Using genuine Bradford White water heater parts reduces installation errors and ensures heater operation. Regular inspections and timely repairs prevent pilot failures.

How to Diagnose and Replace a Faulty Bradford White Thermocouple

A faulty Bradford White water heater thermocouple can prevent the pilot light from staying lit. Diagnose it by checking the flame, cleaning the sensor, and testing the voltage before replacing it if needed. Below are the steps:

Test the Thermocouple

• Check that the pilot flame fully covers the thermocouple tip.

• Clean any soot, corrosion, or buildup from the sensor.

• Test with a multimeter set to DC millivolts; a reading below 15–30 mV or unstable voltage indicates failure.

Gather Tools Needed

• Adjustable wrench

• Small screwdriver

• Flashlight

• Soft brush or compressed air

• Replacement Bradford White-compatible thermocouple

• Leak detection solution for checking gas connections

Step 1: Turn Off Gas Supply
Turn the gas control knob to the OFF position and close the gas supply valve before starting the replacement process.

Step 2: Remove Access Panels
Carefully remove the outer access door and inner burner compartment panel to reach the thermocouple assembly.

Step 3: Disconnect the Old Thermocouple
Use a wrench to loosen the thermocouple nut from the gas control valve. Remove the thermocouple tip from the pilot bracket inside the burner area.

Step 4: Install the New Thermocouple
Insert the new thermocouple through the same path as the old one. Secure the tip in the pilot bracket and ensure it is positioned correctly in the pilot flame.

Step 5: Reconnect the Thermocouple
Thread the thermocouple nut into the gas valve by hand, then tighten it slightly with a wrench. Avoid overtightening to prevent damage.

Step 6: Reassemble the Water Heater
Replace the burner access panels and ensure all covers are properly secured.

Step 7: Restore Gas and Test Operation
Turn the gas supply back on, relight the pilot, and check that it remains lit. Use a soap-and-water solution to test for gas leaks around connections.

Step 8: Final Check
If the pilot still will not stay lit, inspect the gas control valve, thermal cutoff switch, or combustion air supply for further issues.

Explore how to properly drain a water heater through the complete step-by-step tutorial in the video:

Common Mistakes When Replacing a Bradford White Thermocouple

Replacing a thermocouple requires proper installation and testing to ensure the water heater operates safely. Here are the common mistakes to avoid:

• Using the Wrong Thermocouple: Always match the replacement part with your Bradford White model to ensure proper compatibility.

• Incorrect Sensor Placement: The thermocouple tip must sit directly in the pilot flame. Poor positioning can prevent it from generating enough voltage.

• Over-Tightening the Connection: Tighten the fitting securely, but avoid excessive force that can damage the gas valve threads.

• Handling the Thermocouple Roughly: Avoid bending, twisting, or damaging the thermocouple tube during installation, as this can affect performance.

• Skipping Final Testing: After replacement, check that the pilot stays lit, the burner operates correctly, and there are no gas leaks.

• Ignoring Other Problems: If the new thermocouple fails, inspect for issues like a dirty pilot assembly, weak flame, restricted gas flow, or a faulty gas control valve.

When to Call a Professional Water Heater Technician

A thermocouple replacement is one of the simpler water heater repairs, but some situations require professional service.

Contact a licensed technician if:

• You smell gas

• The burner flame is abnormal

• The gas valve appears damaged

• The pilot will not ignite after troubleshooting

• The water heater repeatedly shuts down

• The unit is leaking water

• You are uncomfortable working with gas appliances

Gas water heaters require careful handling because improper repairs can create fire, carbon monoxide, or gas leak risks.

Find out how to clean a tankless water heater safely and efficiently.

Summary: Keep Your Bradford White Water Heater Running Efficiently With Regular Maintenance

Proper care of your Bradford White water heater goes beyond fixing problems when they occur. Regular inspections, cleaning, and performance checks help maintain safe operation, reduce unexpected failures, and keep the system working efficiently. Understanding early warning signs allows you to address minor issues before they become major repairs.

Key Takeaways:

• Monitor changes in heating performance, such as slower recovery time or inconsistent hot water.

• Keep the burner area clean and ensure proper airflow around the water heater.

• Check the pilot flame regularly for correct color, strength, and stability.

• Inspect connections and components for signs of wear, corrosion, or damage.

• Flush the tank periodically to reduce sediment buildup and improve efficiency.

• Follow the manufacturer’s maintenance guidelines to maximize reliability and service life.

Looking for Bradford White water heater replacement parts? Order HVAC parts and supplies from PartsHnC. We offer Bradford White thermocouples, pilot assemblies, gas control valves, thermostats, burner assemblies, and other essential replacement parts. Fast shipping available for quick delivery.

References:
https://www.cpsc.gov/Recalls/2002/cpsc-bradford-white-corporation-announce-recall-of-gas-water-heater
http://waterheatertimer.org/pdf/Bradford-White-service-manual.pdf
https://www.building-center.org/bradford-white-water-heater-age/

FAQs

How often should I check the thermocouple on my water heater?

The thermocouple does not require frequent replacement, but it should be inspected during routine water heater maintenance to check for dirt, corrosion, damage, or improper positioning near the pilot flame.

Can I clean a dirty thermocouple instead of replacing it?

Yes. If the thermocouple is only covered with soot, dust, or minor buildup, gently cleaning the tip may restore proper operation. However, a thermocouple that is damaged or fails voltage testing should be replaced.

Why does my new thermocouple still not keep the pilot lit?

The problem may not be the thermocouple itself. Other possible causes include a weak pilot flame, a clogged pilot tube, incorrect thermocouple positioning, poor airflow, or a faulty gas control valve.

How do I position a Bradford White thermocouple correctly?

The Bradford White thermocouple tip should be positioned directly in the pilot flame so it receives enough heat to generate the millivolt signal required by the gas control valve. Incorrect placement can prevent the pilot from staying lit.
