How to Troubleshoot Raypak Water Heater Flame Sensor: Step-by-Step Guide

Posted: January 05, 2026

A Raypak water heater relies on a flame sensor to ensure safe and efficient operation. This small yet crucial component detects whether the burner’s flame is present, preventing gas from flowing when ignition fails. Over time, dirt, soot, or wear can cause the flame sensor to malfunction, leading to ignition issues or error codes.

Troubleshooting a Raypak flame sensor doesn’t always require professional help. With careful observation, basic tools, and a step-by-step approach, you can often perform a flame sensor replacement to restore proper flame detection without waiting for a full system failure. This guide will walk you through the process safely and effectively.

Table of Contents:
How Raypak Flame Sensors Work in Pool and Spa Heaters
Common Raypak Flame Sensor Issues That Cause Heater Shutdowns
Main Reasons Raypak Flame Sensors Fail Over Time
How to Diagnose and Fix Raypak Flame Sensor Problems Step by Step

How Raypak Flame Sensors Work in Pool and Spa Heaters

The flame sensor is a critical safety component in Raypak pool and spa heaters. It ensures the burner lights safely and that gas only flows when a flame is present. A malfunctioning flame sensor can prevent the heater from igniting properly, making understanding its function essential for maintenance and troubleshooting.

How the Flame Sensor Functions:

Detects Flame Presence: The flame sensor consists of a small metallic rod that senses the electrical charge created by the burner’s flame, confirming ignition is successful.
Communicates with the Control Board: Once the flame is detected, the sensor sends a signal to the heater’s control board, allowing the gas valve to remain open for continuous heating.
Shuts Off Gas for Safety: If no flame is detected within a few seconds, the sensor triggers the system to cut off the gas supply, preventing the risk of gas buildup or leaks.
Monitors Constantly: The sensor continuously checks the flame during the entire heating cycle, ensuring the heater operates safely and efficiently.
Identifies Flame Failures: External factors like soot, drafts, or minor electrical glitches can cause flame interruptions, which the sensor detects immediately, prompting an automatic safety shutdown.

Understanding the Raypak flame sensor’s role helps maintain safety, prevent costly repairs, and ensure your pool or spa heater operates reliably.

Looking to replace or maintain your Raypak heater parts in 2026? Order HVAC replacement parts and supplies from PartsHnC. We offer flame sensors, igniters, control boards, and filters from trusted brands like Raypak, Trane, and Carrier. Fast shipping available, get your parts delivered to your door without delay!

Common Raypak Flame Sensor Issues That Cause Heater Shutdowns

A malfunctioning flame sensor is one of the leading reasons a Raypak heater may fail to ignite or shut down unexpectedly. Identifying flame sensor issues early can save time and prevent unnecessary repairs. Common issues to watch for include:

Issue	Symptoms	Possible Cause	Solution / Fix
Heater ignites then shuts off quickly	Lights then turns off in seconds	Dirty, misaligned, or failing flame sensor	Wipe the sensor, realign it; replace if worn
Error codes on display	“FS” or flame sensor error shows	Control board not receiving flame signal	Inspect the sensor, reset the heater; replace if needed
Inconsistent operation	Starts and stops randomly	Corrosion, buildup, or loose wiring	Tighten connections, remove buildup from sensor; replace if faulty
Repeated ignition attempts	Cycles ignition but flame won’t stay	Sensor not detecting flame	Verify installation, check for obstruction; replace sensor if necessary
Extended heating delays	Burner ignition slow or delayed	Sensor delay or buildup	Align the sensor properly, remove soot; replace if delays persist

Recognizing these patterns allows pool and spa owners to troubleshoot efficiently and avoid replacing more costly components like the control board or the gas valve unnecessarily.

Disclaimer: The information provided is intended for general guidance on Raypak flame sensor troubleshooting. Always follow the manufacturer’s safety instructions. Improper handling can cause injury or damage. When in doubt, seek professional service.

Learn how to clean a tankless water heater safely and efficiently to maintain optimal performance and extend its lifespan.

Main Reasons Raypak Flame Sensors Fail Over Time

Flame sensors are vital for the safe operation of Raypak pool and spa heaters. Over time, they can degrade, causing ignition problems or heater shutdowns.

Key Factors Leading to Flame Sensor Failure:

Accumulation of Residue: Dust, soot, and mineral deposits can coat the sensor rod, reducing its sensitivity and preventing accurate flame detection.
Environmental Corrosion: Pool chemicals, humidity, and moisture exposure can corrode the metal sensor, weakening its performance.
Thermal Stress: Constant heating and cooling cycles may cause the metal rod to bend, crack, or wear out, especially in older heaters.
Electrical Malfunctions: Loose wiring, frayed connectors, or short circuits can interrupt the signal from the sensor to the control board.
Incorrect Positioning: If the sensor is misaligned or improperly installed, it may fail to detect the flame consistently, causing repeated shutdowns.
Natural Wear Over Time: Even with proper care, flame sensors eventually lose effectiveness and need replacement to maintain heater reliability.

Regular inspection, proper cleaning, and timely replacement of Raypak pool heater parts help prevent shutdowns shortly after ignition, avoid ignition issues, and maintain consistent pool heating performance, extending the life of your heater.

How to Diagnose and Fix Raypak Flame Sensor Problems Step by Step

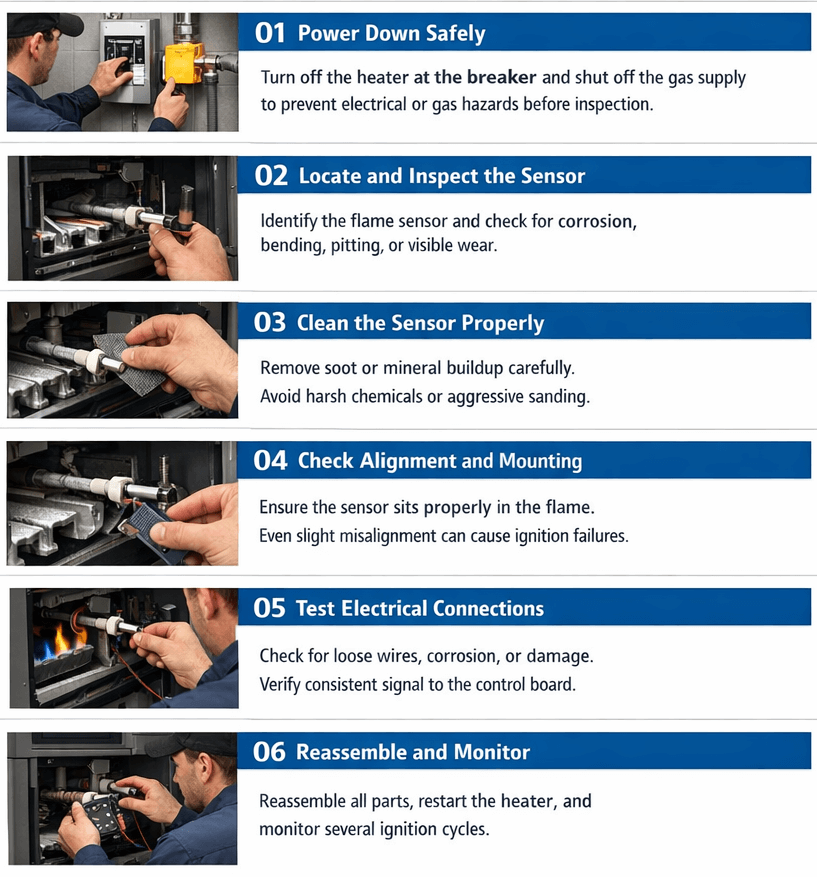

A faulty flame sensor can cause your Raypak heater to shut down or fail to ignite. Follow these six detailed steps for flame sensor troubleshooting to diagnose the issue accurately and fix the problem effectively.

Caution: Handling a Raypak heater’s flame sensor involves exposure to electricity and gas. Always shut off power and gas before inspecting or cleaning components. Mistakes can cause burns, electric shock, or damage to the heater. Only perform tasks you are confident managing safely.

Additional Tips for Troubleshooting Raypak Flame Sensors

Keep your heater running smoothly by following these practical tips to spot subtle flame sensor issues early.

Observe Sensor Behavior During Startup: Watch the flame during ignition for flickering or delays that indicate alignment or buildup issues.
Check for Hidden Residue on Wiring: Inspect wiring insulation for moisture or chemical buildup that may reduce conductivity.
Inspect Mounting Brackets: Ensure the sensor bracket is secure and properly positioned to avoid false flame loss readings.
Verify Flame Pattern Across the Burner: Confirm the flame evenly contacts the sensor rod to prevent shutdowns.
Use a Multimeter to Test Continuity: Measure the sensor’s voltage or resistance to detect partial failures not fixed by cleaning.
Document Recurring Patterns: Track shutdowns and operating conditions to identify underlying environmental or operational causes.

When to Seek Professional Help

While minor cleaning and inspection can often fix flame sensor issues, contact a licensed HVAC or pool technician if:

You are unsure how to safely power down or access the heater components.
The sensor continues to fail after cleaning, alignment, or testing.
You notice repeated error codes or irregular ignition cycles.
Wiring or mounting brackets appear damaged or corroded.
You are uncomfortable working with gas, electricity, or sensitive electronics.

Find out how to drain a water heater: step-by-step guide to safely flush and maintain your tank

Conclusion: Preventing Future Raypak Flame Sensor Problems

Proactive care of your Raypak flame sensor ensures your pool or spa heater operates safely without unexpected interruptions. Recognizing subtle signs of sensor wear and addressing them promptly keeps your system reliable. Small preventive actions can save you from larger repairs and extend the heater’s lifespan.

Key Takeaways

Even minor buildup on the sensor rod can gradually reduce sensitivity and cause ignition issues.
Environmental factors like humidity, pool chemicals, and heat cycles accelerate sensor wear.
Periodic testing with a multimeter can detect hidden sensor faults before failure.
Proper positioning of the sensor in the flame path is just as important as cleaning.
Recording unusual ignition patterns or shutdown timings helps identify underlying problems.
Using genuine Raypak replacement parts prevents compatibility issues and ensures consistent performance.
Combining visual inspections, electrical checks, and performance tracking provides the most reliable maintenance approach.

Summary: Maintaining your Raypak flame sensor with careful observation, preventive checks, and timely water heater flame sensor replacement ensures long-term heater efficiency. Addressing wear early reduces the risk of unexpected failures. Following these strategies promotes safe, reliable, and uninterrupted pool and spa heating.

FAQs

How to clean a RayPak flame sensor?

Turn off the power and gas, remove the sensor, and gently polish the rod with fine emery cloth. Reinstall it carefully, ensuring proper alignment in the flame path.

Why does my RayPak heater say sensor failure?

This usually occurs when the flame sensor cannot detect the burner flame due to dirt, corrosion, misalignment, or wiring issues. Cleaning or replacing the sensor often resolves the error.
