What Does MFD on a Capacitor Mean?

Posted: October 27, 2022

What Does MFD On A Capacitor Mean

An mfd capacitor is an electrical component that alters the current flowing to one or more windings in a single-phase induction motor that operates on alternating current. The basic purpose of using a capacitor is to produce a magnetic field. Some examples of HVAC Capacitor Parts are capacitors for refrigerants, capacitors for air conditioning compressors, and caplets for water chillers.

Start capacitors and run capacitors are the two types of mfd capacitors that are available. A start capacitor only functions during the motor's starter phase before being unplugged from the circuit.

Index of Content

What does MFD mean for HVAC?
The Basic Capacitor Types
Is There a Difference Between MFD and uF?
What Do the Ratings on a Capacitor Mean?
Four MFD Capacitors Facts You Must Know
Choosing the Right MFD Capacitor Size
What happens if you use a higher MFD capacitor?
How to Check MFD Capacitor

A run capacitor, on the other hand, alters the phase or current shift to a motor or machine's winding continually. The performance, torque, and effectiveness of the motor must be optimized. An air conditioner, spa pump, large fans, and motorized gates all contain motor capacitors. HVAC Capacitor Parts can be found online in a wide variety of sizes to suit a wide variety of needs.

What does MFD mean for HVAC?

Numerous capacitors come marked with the letters mFD or MFD after the capacitance value. You can see it as a microfarad (MFD), as well as as the symbol F, which stands for microfarad.

Therefore, the query arises: Are mFD and µF  the same thing? The straightforward response is that they both fall under the same measuring scale, with mFD standing for "milli-Farad" and µF for "micro-Farad." mFD capacitors rather than µF capacitors are typically used by older capacitor manufacturing businesses.

Previously, capacitors were labeled mFD or MFD, which is why they were labeled this way. The machines' inability to print the symbol on the motor's casing was most likely the cause.

Top Selling Products

It's also possible that the manufacturer called their capacitors MFD capacitors for personal reasons only. MFD ratings are a method for measuring capacitors. The level of capacity of a capacitor is described technically as an MFD or micro-Farad. As a result, your capacitor can store more electrical current the higher its MFD rating.

An average capacitor could have an MFD of 5 to 80 MFD. If you were looking for an MFD capacitor but were unsuccessful, you may always purchase µF.

The Basic Capacitor Types

MFD capacitors operate like a battery would. It is their responsibility to conserve energy and then release it when needed. Capacitors, on the other hand, accomplish this far more quickly, which is why they are usually a superior choice. A capacitor releases its energy 60 times per second when it is connected to a source with a 60Hz frequency.

However, their capacitance determines the overall amount of energy they can discharge. In a similar vein, a larger capacitor will use more power. Running and starting capacitors are the two primary kinds of capacitors. Their capacitance MFD ranges are different.

Let's examine each one individually.

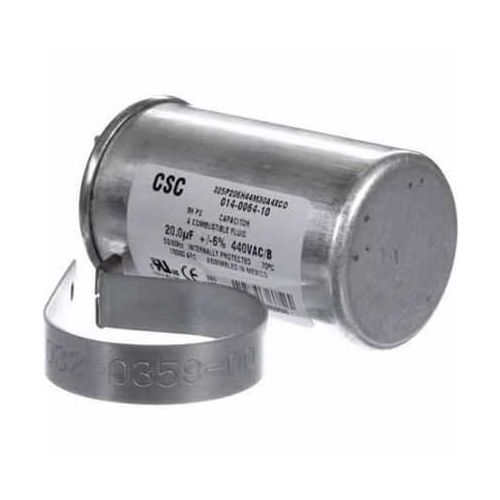

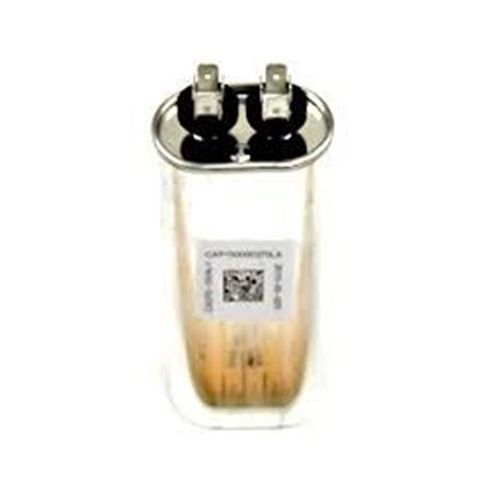

Run Capacitors

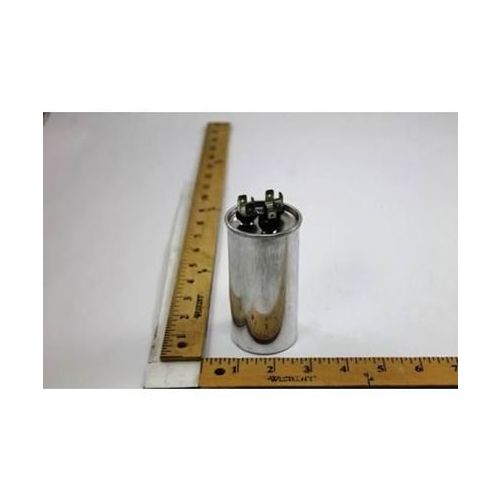

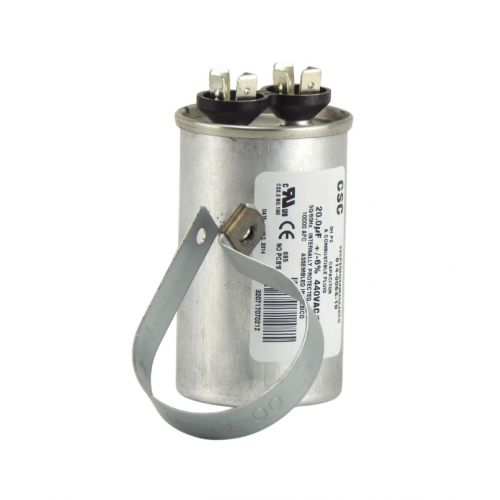

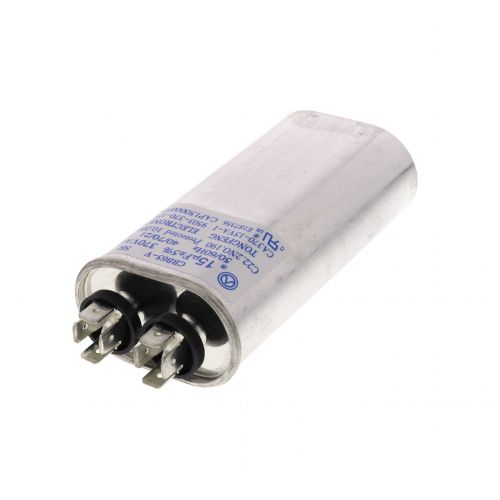

Run capacitors range in size from 3-70 MFD. As a result, either 370V or 440V is their voltage limit. Additionally, the unique architecture of these capacitors enables them to function consistently. They are a great option for single-phase motors because they continually drain power due to this.

In order to power the secondary winding in such a motor, an MFD capacitor is essential. In this situation, you must pick the appropriate size capacitor. On the other hand, if this isn't done, an uneven magnetic field will form inside the motor.

In addition, rotor speeds will change at the precise locations where the field is imbalanced. As a result, there will be a significant energy loss and a decline in performance. Additionally, the machine can keep overheating, which is detrimental to efficiency.

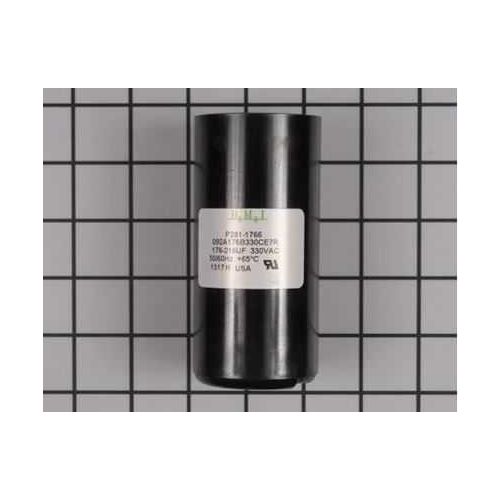

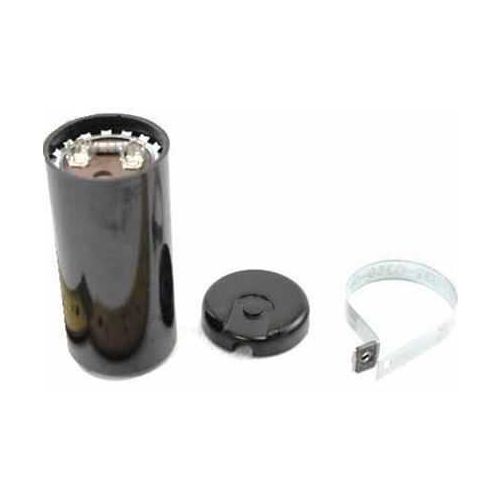

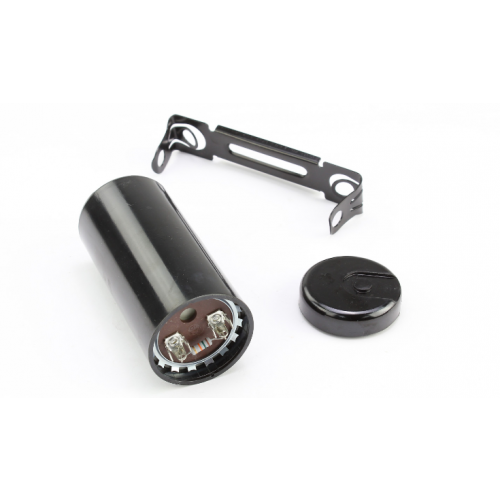

Start Capacitors

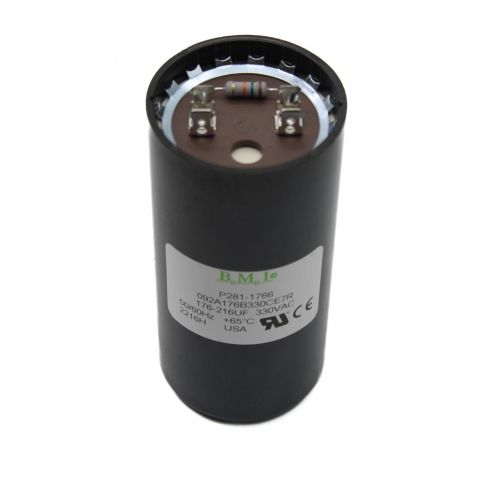

Start capacitors frequently have a wider range of capacitance. The running capacitor limit of 70 MFD is frequently exceeded. Because of this, the voltage ratings may be 330V, 250V, or 125V. Start capacitors are used in single-phase motors to help increase the beginning torque.

A start MFD capacitor's design also strives to maximize for brief usage. The capacitor finally detaches from the circuit after the motor generates the required torque.

Potential relays are the cause of this electronic disconnect. These relays operate within voltage restrictions. In essence, the start capacitor disconnection is triggered by a specified voltage level. High capacitor values are therefore preferred. The cause is that it will need more energy to produce enough starting torque.

Is There a Difference Between MFD and uF?

An MFD capacitor stores electrical charge through parallel conducting plates with a dielectric in the space in between. The term "capacitance" in this context refers to the maximum charge that a capacitor can withstand. A measurement tool called a digital multimeter is used to calculate capacitance and other electrical properties.

Some capacitors display their capacitance ratings in MFD, whereas others use up to do the same. The short answer is that microfarads will always be used to measure capacitor values. You are correct to wonder if MFD and uF refer to the same thing.

The term "MFD" in this context refers to microfarads, which are more frequently written as uF in physics. But when you take into account the millifarad units that can also be used to represent mfd, confusion sets in. The millifarad unit is of a higher calibre than the microfarad.

Microfarads are frequently represented by older capacitor manufacturers as MFD, which was the industry standard at the time. These days, the majority of manufacturers favour using uF to denote capacitance. As a result, finding a capacitor with a millifarad rating is rather uncommon. The established norm for representing capacitor ratings is now uF for consistency's sake.

What Do the Ratings on a Capacitor Mean?

Thankfully, the ratings of practically all capacitors are displayed on their labels. There are two ratings that outline the upper and lower bounds of voltage and capacitance capability. When defining the maximum voltage at which a capacitor would operate normally, the symbol V is frequently used to denote voltage in volts.

Voltage can be compared to the amount of current flowing through your MFD capacitor. Similar comparisons could be made between voltage and pipe water pressure. Additionally, the water volume in this instance indicates the current. The flow outside the line also increases as the pressure rises.

A capacitor's current will flow significantly more quickly the higher the voltage rating. The capacitor will blow and disintegrate if the voltage is exceeded. The microfarad (MFD) rating is the second rating. The amount of capacitance is typically represented by this parameter. In other words, it is a number that indicates the capacitor's storage capacity. Therefore, a capacitor that has a high microfarad rating can store more electrical energy. Capacitor ratings typically range between 5 MFD and 80 MFD. Nevertheless, you'll discover that some capacitors display this rating as F to show their capacity.

Four MFD Capacitors Facts You Must Know

Here are four things you need to know about MFD capacitors.

  • Only various charges can be stored in MFD capacitors. They are unable to raise the voltage you are receiving. However, they can only increase the voltage inside the circuit. You might observe a higher voltage passing through your capacitor than the actual line voltage, but that is due to the EMF. Back EMF is essentially a counter electromotive force produced by the motor rather than the capacitor.
  • More current flows through the start winding the greater the capacitance level.
  • Always adhere to the capacitor's voltage rating, which specifies the maximum voltage that it can withstand. If it states 370 volts, for instance, you can change it to 440 volts for a bigger capacity. If your capacitor is already 440 volts, you cannot swap it out with one with a 370 volt capacitance.
  • While the device is in use, you may always test your capacitor. The amps of the start winding exiting the capacitor can be easily measured. If you are using 60 Hz power, multiply the amps by 2652, and if you are using 50 Hz power, multiply them by 3183. The voltage across the capacitor is then divided by the result you just obtained.

Choosing the Right MFD Capacitor Size

Where you plan to use the capacitor is the main factor in choosing the appropriate size. You must also make sure that the MFD capacitor you buy is the correct size, especially if you plan to use it to power a motor. Refrigeration and air conditioning are something that motors are accustomed to. At the end of the day, whether or not a motor starts will depend on the capacitor.

The voltage and requirements for a motor's beginning are a couple of the main aspects affecting the capacitor's size. It will assist to change your MFD capacitor rating if you want your motor to have more starting torque.

The capacitor should be changed out with one with a higher rating; that would be the best course of action. To ensure that there is adequate power efficiency, there are some aspects that you must take into account. Additionally, you must consider the temperature, the rated motor speed, and the power constraints.

When choosing the appropriate MFD rating for capacitors, there is always some leeway. The recommended tolerance level for a capacitor powered motor is 6%. Therefore, a 50 MFD capacitor can have a value of between 47.6uF and 52.4uF and still function properly. Anything below that score is therefore not functionally ideal.

What happens if you use a higher MFD capacitor?

The amount of energy stored and the start winding amperage increase with the capacitor's MFD. A capacitor that has totally failed and zero capacitance is equivalent to a start winding that is open.

Want to Know more about Common HVAC Problems During the Winter Click Here

How to Check MFD Capacitor

The most common way to check the capacitor is by taking it out and putting it on a set of test leads. If the capacitor is good, it will show a small amount of leakage current. This leakage current can be measured with a voltmeter.

If you are not sure how to do this, you can also use a digital multimeter to measure the voltage across the Capacitor Terminals while measuring for leakage current. It is important to note that if you measure for voltage, you should also measure for leakage current when checking your capacitors.

The next step is to desolder the capacitor, so that you can replace it with a new one. In order to desolder the capacitor, use a soldering iron and solder. Be careful with this step as it may cause heat damage if you do not pay attention to how much heat is given off from your soldering iron.

After removing the capacitor from its socket, solder in a new one. The area where the old capacitor had been will now have exposed leads which should be connected to the new capacitor in order to complete the process.
