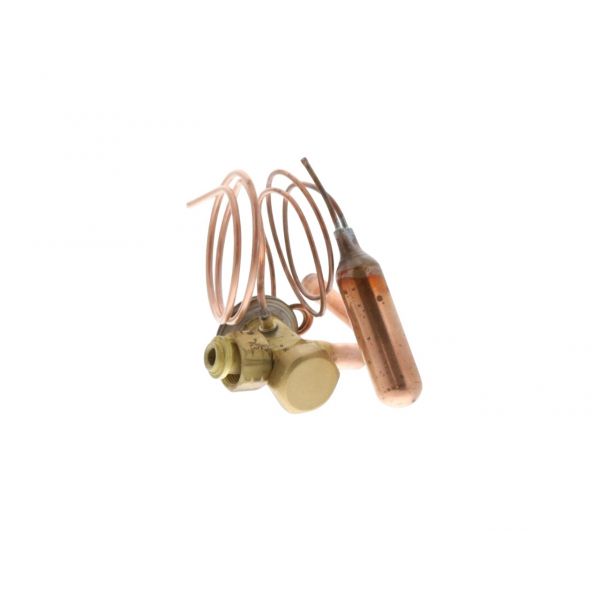

Carrier EA36YP274 Thermal Expansion Valve

Rating:
5 5 8
8  Reviews Add Your Review
Special Price $157.35 Regular Price $180.96
Out of stock
SKU
EA36YP274

The Thermal Expansion Valve, model EA36YP274 from Carrier, plays a vital role in numerous HVAC setups, spanning air conditioning units, heat pumps, and refrigeration systems. It works by carefully controlling the flow of refrigerant in response to variations in temperature. More heat-absorbing refrigerant can flow through the TXV when the temperature of the evaporator coil rises. On the other hand, the TXV contracts to lessen refrigerant flow in order to prevent overcooling when the temperature drops. The best possible system performance, efficiency, and component protection are ensured by this careful supervision. To put it another way, the TXV functions as an automated gatekeeper, making sure that the proper quantity of refrigerant circulates to maintain the smooth and effective operation of your HVAC system.

Add to Wish List
Air Conditioner Parts, Expansion Valve
Manufacturer:
https://www.partshnc.com/media/catalog/product/e/a/ea36yp274_1.jpg

PRODUCT OVERVIEW:
Functioning as an essential OEM refrigerant control component, the Carrier EA36YP274 Thermal Expansion Valve regulates the volume of liquid refrigerant entering the evaporator coil. By maintaining precise metering, the valve optimizes the refrigeration cycle while protecting the compressor from unevaporated liquid return. This component serves as the physical pressure boundary between the high-pressure liquid line and the low-pressure balance area within the cooling system.

THERMOSTATIC REFRIGERANT METERING:
A thermal expansion valve operates by dynamically adjusting liquid refrigerant expansion based on thermal load conditions at the evaporator coil outlet. The internal diaphragm responds to fluid pressure shifts from a remote sensing bulb attached to the suction line, counterbalancing internal spring tension and evaporator pressure to alter the internal metering passage. As high-pressure liquid refrigerant passes through this restricted opening, its pressure drops rapidly, expanding it into a low-temperature mixture ready to absorb heat within the coil.

EVAPORATOR SUPERHEAT REGULATION:
Within the primary refrigeration circuit, this valve balances evaporator flooding with active heat absorption requirements across varying ambient conditions. By modulating fluid entry in response to changing heat loads, the component maintains consistent superheat levels at the evaporator exit. This precise fluid regulation ensures full refrigerant vaporization prior to suction line discharge, preserving system efficiency and compressor reliability.

REPLACEMENT GUIDELINES:
Replacement may be appropriate when the existing expansion valve restricts refrigerant flow, allows excessive refrigerant passage, responds improperly to changing evaporator conditions, or shows physical damage or leakage. The Carrier EA36YP274 should be selected by matching the valve type, refrigerant application, connection arrangement, equipment model, and refrigeration-system requirements of the existing component. Verify these characteristics against the equipment documentation before selecting the replacement.

Common Failure Symptoms:

  • Frost buildup along the liquid line or coil distributor tubes due to restricted refrigerant flow.
  • Elevated suction line superheat readings caused by persistent refrigerant underfeeding.
  • Liquid floodback or abnormally low superheat resulting from an internally stuck-open valve position.
  • Fluctuating suction and discharge pressures during steady cooling operation.

EQUIPMENT COMPATIBILITY:
The Carrier EA36YP274 Thermal Expansion Valve is an OEM component for residential air conditioners, heat pumps, and packaged cooling units specifying this part number. Before purchasing, verify that the OEM replacement part matches the exact attributes listed in the Technical Specifications table, including the brand, part number, product type, and refrigerant media application requirements.

Technical Specifications:
Product identification:
Brand: Carrier
Part Number: EA36YP274
Product Type: Thermal Expansion Valve (TXV)

Reviews 8
Write Your Own Review
You're reviewing:Carrier EA36YP274 Thermal Expansion Valve
Your Rating
Product Questions (14)
Customer Questions
What are the benefits of using a thermal expansion valve in my HVAC system?

Using a TXV can lead to improved cooling performance, increased energy efficiency, and better dehumidification. It helps maintain consistent indoor temperatures and can reduce energy consumption.

What are the signs that my thermal expansion valve may be malfunctioning?

Common signs of a faulty TXV include poor cooling performance, inconsistent temperature control, and ice formation on the evaporator coil. If you notice any of these issues, it's advisable to have a professional technician inspect and potentially replace the valve.

How can I ensure my thermal expansion valve operates optimally for the life of my HVAC system?

Regular maintenance and servicing of your HVAC system, including the TXV, is key to ensuring it operates optimally. It's essential to follow the manufacturer's recommendations and have a qualified technician inspect and maintain your system regularly.

What maintenance is required for the Carrier EA36YP274 Thermal Expansion Valve?

Regularly inspect the valve for leaks, corrosion, and debris buildup. Clean external surfaces carefully and ensure all fittings are tight. Check for proper refrigerant flow and responsiveness. Always turn off power and relieve system pressure before servicing.

What are common issues with the Carrier EA36YP274 Thermal Expansion Valve?

  • Failure to regulate refrigerant flow properly.
  • Leaking at valve connections.
  • Restricted or uneven cooling performance.
  • Valve sticking due to dirt or corrosion.

Where is the EA36YP274 positioned within the refrigeration circuit?

It is positioned between the refrigerant supply path and the evaporator section, where it controls refrigerant entry.

Why is a thermal expansion valve used in an HVAC system?

It meters refrigerant entering the evaporator, helping regulate refrigerant delivery according to changing cooling conditions.

How does the valve respond when cooling conditions change?

The valve adjusts refrigerant delivery in response to changing operating conditions, supporting controlled flow into the evaporator.

What does the thermal expansion valve control at the evaporator inlet?

It provides controlled refrigerant metering at the evaporator inlet to regulate how refrigerant enters the cooling circuit.

How does the valve support refrigerant movement through the evaporator?

The valve regulates the amount of refrigerant delivered to the evaporator, supporting controlled refrigerant movement during the cooling cycle.

What does the Carrier EA36YP274 thermal expansion valve do?

The Carrier EA36YP274 regulates refrigerant flow into the evaporator as part of the refrigeration circuit, allowing refrigerant delivery to respond to changing operating conditions.

Why is a thermal expansion valve used in an HVAC refrigeration circuit?

A thermal expansion valve meters refrigerant and allows the refrigeration circuit to respond to changes in evaporator operating conditions.

What information helps identify the correct Carrier EA36YP274?

The equipment model, refrigerant application, valve configuration, and connection arrangement help verify whether the EA36YP274 corresponds to the required component.

When should the Carrier EA36YP274 be inspected?

Inspect the EA36YP274 when the refrigeration system shows abnormal refrigerant-flow behavior, inconsistent cooling operation, or other conditions that may indicate a metering issue.

Installation Steps

Step1: Turn off power and refrigerant flow before beginning.

Step2: Recover refrigerant following safe HVAC procedures.

Step3: Remove the old expansion valve and clean the connection ports.

Step4: Install the new valve in the correct orientation and tighten flare or solder connections.

Step5: Evacuate and recharge the system per specifications.

Step6: Restore power and test system pressures and cooling performance.
