Mitsubishi Electric E22C24300 8-Pole Motor 280-340V 30W

Rating:
5 5 7
7  Reviews Add Your Review
Special Price $140.60 Regular Price $186.95
Out of stock
SKU
E22C24300
The Mitsubishi Electric E22C24300 is an 8-pole Motor, which is a high-performance DC motor that can be used dependably in HVAC systems. This motor is suitable for use in heating, ventilation, and air conditioning applications and it can operate in temperatures of between -10°C and 50°C, it is a 208-230VAC motor with a frequency of 50/60Hz. It is an 8-pole design that increases torque and efficiency besides being designed to operate at 1,000 RPM, making it suitable for use in areas where rotational dependability is key. It is energy efficient, it uses 30 watts of power and 0.3 amps of current.
Add to Wish List
Air Conditioner Parts, Mitsubishi Electric Heat Pump Parts
Manufacturer:

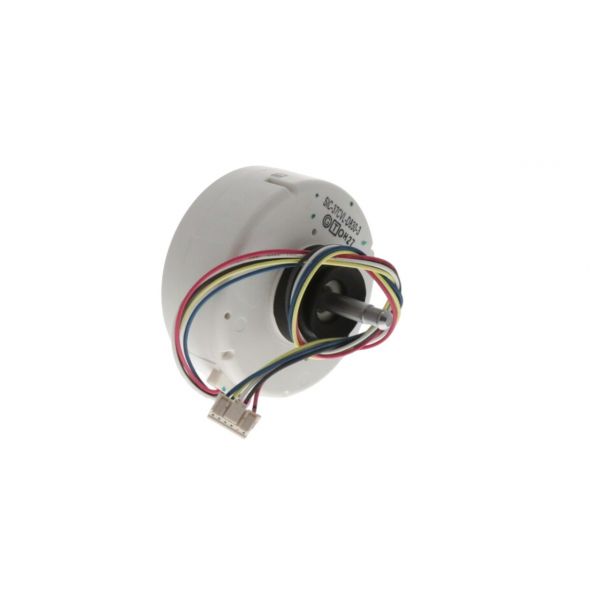

https://www.partshnc.com/media/catalog/product/e/2/e22c24300.jpg

Specifications

  • Temperature Range: -10°C to 50°C
  • Type: 8-Pole Motor
  • Motor Type: DC Motor
  • Voltage: 208-230 VAC
  • Frequency: 50/60 Hz
  • Current Rating: 0.3 Amps
  • Power Consumption: 30 Watts
  • Speed: 1,000 RPM
  • Pole Type: 8
  • Diameter: 5/16"
  • Length: 1-1/2"
  • Weight: 1.97 Lbs

Indoor air-handling sections use fan motors to drive the fans responsible for moving air through HVAC equipment. The Mitsubishi Electric E22C24300 is an 8-pole indoor fan motor designed for compatible HVAC applications. It provides the mechanical rotation required by the connected indoor fan, while its 280-340V and 30W specifications identify key electrical characteristics of the motor.

Indoor Fan Motor Operation:
The E22C24300 converts electrical energy into mechanical rotation for the connected indoor fan. This rotation allows the fan to move air through the HVAC equipment. The motor provides the mechanical movement required for the indoor fan to perform its intended function.

Motor Power and Electrical Characteristics:
The E22C24300 is specified for a 280-340V electrical range and a 30W power rating. The voltage range identifies the specified electrical supply, while the 30W rating identifies the motor's specified power level. These characteristics should be compared with the original equipment requirements when selecting a replacement.

Replacement Guidelines:
Replacement may be appropriate when the existing motor fails to start, operates intermittently, develops irregular rotation, produces unusual noise or vibration, or no longer provides the required mechanical movement. Before selecting a replacement, verify the original part number, 280-340V requirement, 30W rating, 8-pole configuration, and other applicable equipment requirements.

Common Failure Symptoms:

  • Motor fails to start
  • Intermittent motor rotation
  • Irregular rotational movement
  • Unusual noise or vibration
  • Motor rotation stops during operation

Equipment Compatibility:
The Mitsubishi Electric E22C24300 Indoor Fan Motor should be selected for equipment requiring the corresponding indoor fan motor configuration. Before purchasing, verify the existing motor's part number, 280-340V requirement, 30W rating, 8-pole configuration, and other applicable equipment requirements to confirm compatibility.

Technical Specifications:
Part Identification:
Brand: Mitsubishi Electric
Part Number: E22C24300
Type: Indoor Fan Motor

Electrical:
Voltage: 280-340V
Power: 30W

Mechanical:
Pole Count: 8 Pole

Reviews 7
Write Your Own Review
You're reviewing:Mitsubishi Electric E22C24300 8-Pole Motor 280-340V 30W
Your Rating
Product Questions (10)
Customer Questions
Are there fan motors specifically designed for HVAC systems in extreme weather conditions, such as extremely hot or cold climates?

Yes, some fan motors are designed to withstand extreme temperatures. If you live in such a climate, consider motors with robust insulation and temperature-resistant features.

Can I use a fan motor with a higher horsepower rating in my HVAC system to achieve better airflow and cooling or heating performance?

It's essential to consult an HVAC technician before changing the fan motor's horsepower. An oversized motor may disrupt the balance of the system and lead to inefficiencies.



What are the signs that my fan motor may need replacement, and how can I troubleshoot motor issues before seeking professional assistance?

Signs of a failing fan motor may include unusual noises, reduced airflow, or frequent system cycling. Basic troubleshooting may involve checking electrical connections and ensuring proper lubrication.

What maintenance is required for the Mitsubishi Electric E22C24300 Motor?

Inspect the motor regularly for dust buildup, loose mounting bolts, and secure electrical connections to ensure stable operation. Clean the exterior to prevent overheating and check for abnormal noise or vibration that may indicate wear. Verify voltage supply matches specifications to avoid electrical stress. Always disconnect power before performing maintenance to ensure safety.

What are common issues with the Mitsubishi Electric E22C24300 Motor?

  • Motor failing to start.
  • Overheating during operation.
  • Excessive vibration or noise.
  • Electrical connection faults.

What does the E22C24300 indoor fan motor do?

The motor provides the rotation needed to drive the indoor fan and support air movement within the HVAC equipment.

Why is the 8-pole configuration important when replacing the E22C24300?

The 8-pole configuration is part of the motor's design. The replacement should match the pole configuration required by the original equipment.

What does the 8-pole configuration indicate on the E22C24300?

The 8-pole designation identifies a specific characteristic of the motor's internal design and should be matched when selecting a corresponding replacement.

What signs may indicate that the E22C24300 needs replacement?

Failure to start, intermittent rotation, irregular movement, unusual noise or vibration, or loss of rotation during operation may indicate that replacement is appropriate.

What should I verify before purchasing the E22C24300?

Verify the existing part number, 280-340V requirement, 30W rating, 8-pole configuration, indoor fan application, and other applicable equipment requirements.

Installation Steps

Step1: Turn off power to the equipment and lock out/tag out for safety.

Step2: Remove the access panel and disconnect wiring from the old motor.

Step3: Remove the old motor, install the new 8-pole motor in the correct orientation, and secure it.

Step4: Reconnect wiring, replace the panel, restore power, and test for proper operation.

Check items to add to the cart or
