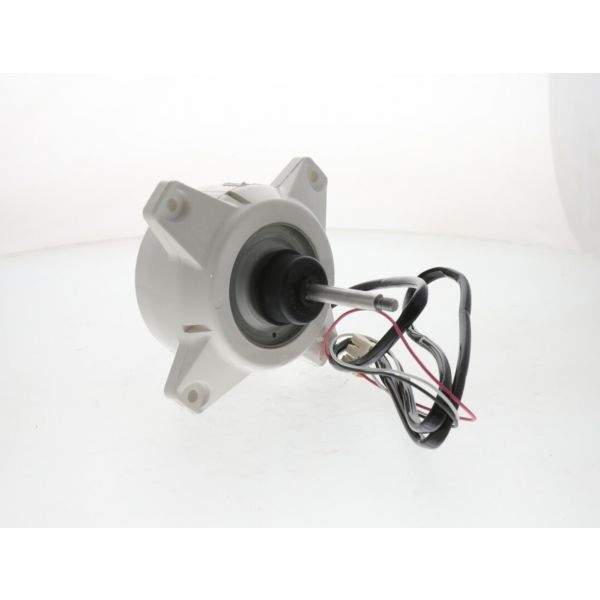

Mitsubishi Electric E22C34301 Outdoor Fan Motor

Be the first to review this product
Special Price $198.91 Regular Price $228.75
In stock
SKU
E22C34301
The Mitsubishi Electric E22C34301 is an Outdoor Fan Motor that is a single-phase AC fan motor designed for HVAC applications. Running at 60 Hz and having a voltage of 208-230V. This type of fan motor can be found in outdoor units of HVAC including air conditioners and heat pumps to provide proper inflow of air and effective heat transfer processes. Through the operation of the external fan, the heat from the refrigerant is expelled effectively so that the operation of the system is not limited by high temperatures.
Add to Wish List
Mitsubishi Electric Air Conditioner Parts, Circulating Fan
Manufacturer:
https://www.partshnc.com/media/catalog/product/e/2/e22c34301-mitsubishi-electric_partshnc.jpg

Specifications

  • Type: Fan Motor
  • Motor Type: Single-phase, AC Fan Motor
  • Frequency: 60 Hz
  • Voltage: 208-230V
  • RPM (Speed): 1075 RPM
  • Power: 1/3 HP
  • Current: 1.6 Amps
  • Weight: 3.67 Lbs
Manufacturer Name: Mitsubishi Electric
Product Number: E22C34301
OEM Part Number: E22C34301
Product Description: Outdoor Fan Motor
Weight:3.67lbs/1664.68g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Mitsubishi Electric E22C34301 Outdoor Fan Motor
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Mitsubishi Electric E22C34301 Fan Motor?

Inspect the fan motor regularly for dirt, debris, and signs of wear. Lubricate bearings if applicable and ensure mounting bolts are tight. Clean blades and vents to maintain airflow, and always disconnect power before performing any work.

What are common issues with the Mitsubishi Electric E22C34301 Fan Motor?

  • Excessive noise or vibration.
  • Motor failing to start or stopping intermittently.
  • Overheating or burnt windings.
  • Worn or seized bearings.
  • Reduced airflow due to blade obstruction.

Installation Steps

Step 1: Turn off all power to the HVAC system and disconnect power supply.

Step 2: Remove the access panel and disconnect wiring from the old fan motor.

Step 3: Unscrew and remove the old outdoor fan motor from the condenser unit.

Step 4: Install the new outdoor fan motor in place and secure mounting hardware.

Step 5: Reconnect wiring per the manufacturer’s diagram and ensure secure connections.

Step 6: Restore power and test fan operation for correct rotation and airflow.
