Johnson Controls VG1245AF 2-Way Ball Valve 1/2" 2.9Cv

Special Price $64.69 Regular Price $74.39
In stock
SKU
VG1245AF

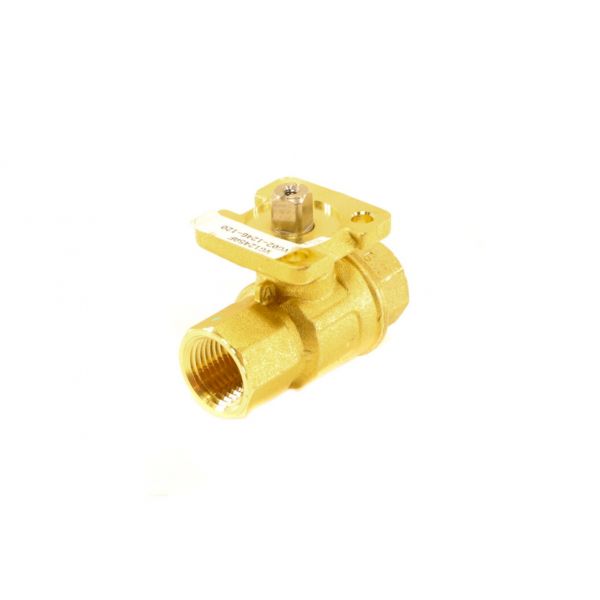

The Johnson Controls VG1245AF is a 2-way ball valve for controlling hot and chilled water flow in HVAC systems with closed loop. It has a forged brass body for strength and a 316 stainless steel ball for wear to those applications that require a lot of work. The VG1245AF has a small footprint and full-port design to reduce flow restriction and has a Cv of 2.9, which enables high flow rate with accurate pressure regulation. In use, the handle of the valve turns a ball inside the valve body to control the flow of water. A quarter turn of the handle places the ball in a position for full flow or complete blockage. This basic design provides leak-tight shut-off and makes the valve quite easy to use.
Manufacturer:
https://www.partshnc.com/media/catalog/product/v/g/vg1245af.jpg

Specifications

  • Temperature: 23° to 250°F
  • Size: 1/2"
  • Weight: 0.72lbs
  • Connection: NPT
  • Cv: 2.9 CV
  • Type: Valve
  • Pattern: 2-way
  • Material: Brass
  • Actuator Type: Electric
  • Pressure Range: 580 PSI
Manufacturer Name: Johnson Controls
Product Number: VG1245AF
OEM Part Number: VG1245AF
Product Description: 1/2" 2W Ball Valve 2.9Cv
Weight:0.69lbs/312.98g
