Product Overview:

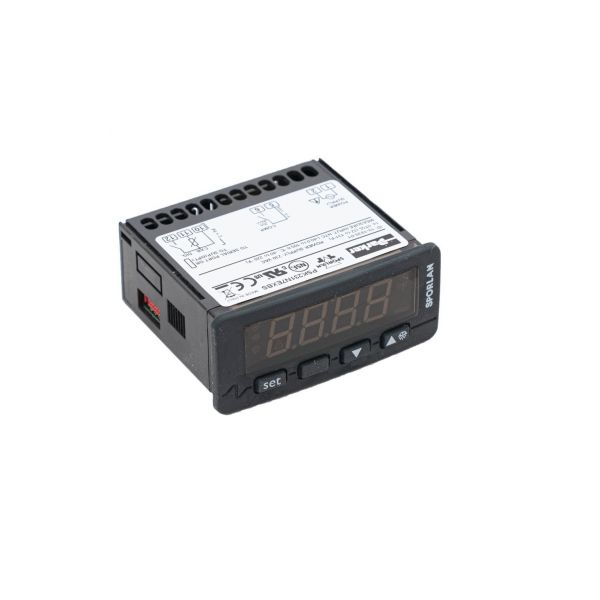

Medium-temperature refrigeration systems require electronic controls to monitor cabinet temperature and regulate compressor operation. The Sporlan Controls PSK231N7EXBS is an OEM digital refrigeration controller designed to manage compressor operation in medium-temperature refrigeration units. It uses a temperature probe to monitor operating conditions and a high-capacity relay to control the compressor circuit. Its 230 VAC power supply and configurable input support refrigeration control applications requiring temperature monitoring and switching.
Digital Temperature and Compressor Control:
The PSK231N7EXBS monitors refrigeration temperature through an NTC or PTC sensor connected to its input. Based on the configured temperature settings, its digital control system switches the compressor relay to maintain the required operating conditions. The controller provides one 30A digital relay output rated for compressor applications up to 2 HP at 230 VAC. Its multifunction input can be configured for a door switch or an additional temperature probe for evaporator monitoring, condenser temperature monitoring, and related control functions.
Display, Alarms, and Communication:

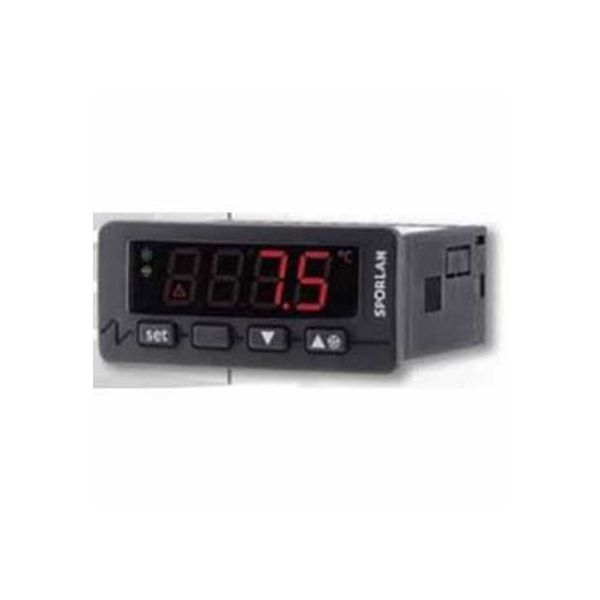

The controller features a 3½-digit digital display with multicolor operating indicators for monitoring refrigeration status. An integrated buzzer provides audible alarm notification, while the TTL serial communication interface supports RS485 Modbus communication through the appropriate adapter. The front panel has an IP65 protection rating for resistance to dust and water exposure. Its optional programming key supports controller setup and configuration.
Replacement Guidelines:
Replace the controller if its display stops functioning, temperature readings become inaccurate, or the compressor relay fails to switch correctly. Before purchasing, verify the complete controller part number, 230 VAC supply requirement, compressor relay rating, sensor configuration, and terminal arrangement. Confirm that the replacement supports the existing refrigeration control sequence and connected sensor type. Disconnect electrical power before servicing and have a qualified refrigeration technician verify the wiring and controller settings.
Common Failure Symptoms:
- Digital display does not turn on or show temperature readings
- Compressor fails to start or stop according to the configured temperature settings
- Incorrect temperature readings from the connected NTC or PTC probe
- Alarm buzzer activates because of a temperature or sensor fault
- Controller fails to respond to the configured multifunction input
- Communication problems with the connected monitoring system
Equipment Compatibility:

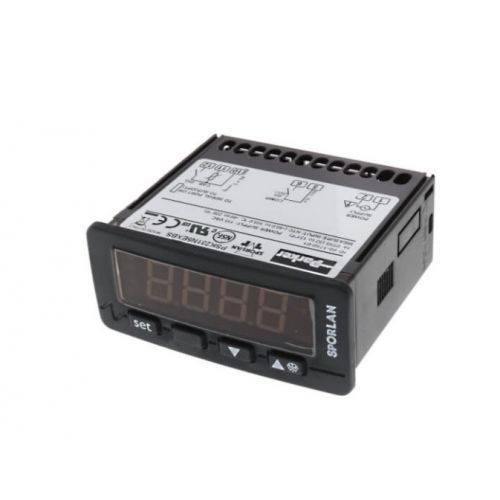

The Sporlan Controls PSK231N7EXBS is designed for medium-temperature refrigeration units using a 230 VAC supply and compressors rated up to 2 HP. Related PSK controller models include PSK231N5EXBS (115 VAC, 1 HP), PSK221N7EXBS (230 VAC, 1.5 HP), and PSK221N5EXBS (115 VAC, 0.5 HP); these are alternative controller configurations, not confirmed direct replacements. Supported accessories include NTC temperature probes 952899 and 952898, PSK programming key PSKey, power supply PSPS01, and TTL-to-RS485 adapter PSIF20TSX. Verify voltage, compressor capacity, sensor inputs, and control requirements before selecting a replacement.
Technical Specifications:
Brand: Sporlan Controls
Part Number/SKU: PSK231N7EXBS
Product Type: Digital Temperature Controller
Controller Series: PSK231
