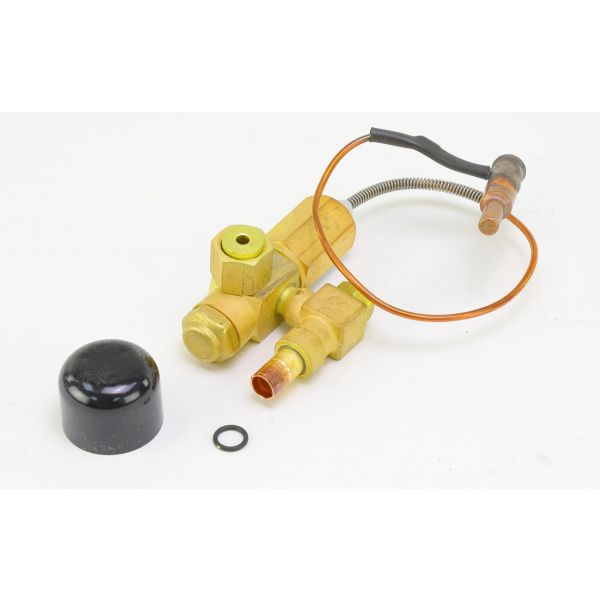

Copeland 998-0500-00 3/8" Discharge Temperature Control Sweat Fitting Valve

Special Price $401.12 Regular Price $445.24
In stock
SKU
998-0500-00
The Copeland model 998-0500-00 is a temperature control sweat valve with a single discharge of 3/8 “, used in HVAC systems. The valve is made of durable metals, can withstand high temperatures, up to 300°F, and allows refrigerants to flow at preferred rates. This helps reduce the number of leaks while simultaneously enhancing performance and it is suitable for heat exchangers and compressors. Further, these components improve operations within heating/cooling systems through their efficiency and reliability. By controlling discharge temperature, this valve prevents equipment from overheating which leads to greater system efficiency and thus prolongs the lifetime of HVAC elements.
Manufacturer:
https://www.partshnc.com/media/catalog/product/9/9/998-0500-00.jpg

Specifications

  • Type: Discharge Temperature Control Valve
  • Size: 3/8"
  • Material: Metals
  • Temperature Range: 300°F
  • Weight: 1.42 lbs

PRODUCT OVERVIEW:
Liquid injection system components respond directly to rising operating temperatures to maintain safe thermal conditions within refrigeration equipment. The OEM Copeland 998-0500-00 3/8" Discharge Temperature Control Sweat Fitting Valve regulates internal system heat by metering liquid refrigerant flow when high temperatures are detected at the discharge port. Featuring a 3/8-inch sweat fitting connection, this component mounts directly into system liquid lines to provide reliable mechanical temperature regulation.

LIQUID INJECTION OPERATING PRINCIPLE:
This discharge temperature control valve operates as an automated liquid injection device designed to prevent thermal overload. While its sensing element monitors heat buildup at the compressor discharge port, the physical valve body regulates the release of subcooled liquid refrigerant into the compressor body. When discharge temperatures exceed operating thresholds, the internal mechanism opens to introduce liquid refrigerant, lowering internal temperatures and protecting compressor components from thermal stress.

SWEAT CONNECTION DESIGN:
The 3/8-inch sweat fitting provides a standardized ODF interface for direct brazing into 3/8-inch liquid line piping. This brazed joint configuration eliminates threaded connection points along the liquid supply, creating a permanently sealed metal-to-metal bond capable of withstanding standard operating pressures and mechanical system vibrations.

REPLACEMENT GUIDELINES:
Replacing the Copeland 998-0500-00 Discharge Temperature Control Sweat Fitting Valve is recommended during routine compressor overhauls or when the existing valve fails to meter refrigerant properly during thermal events. Prior to installation, technicians should verify that the 3/8-inch sweat connection size, line routing, and manufacturer part number match the original equipment specification sheet.

COMMON FAILURE SYMPTOMS:

  • Compressor thermal overload trips during heavy operating loads
  • Uncontrolled high discharge temperatures at the compressor outlet
  • Failure of liquid refrigerant injection during elevated thermal conditions
  • Visible solder or refrigerant residue surrounding the sweat connection joints

EQUIPMENT COMPATIBILITY:
The Copeland 998-0500-00 applies to refrigeration compressors and condensing units equipped for 3/8-inch liquid injection discharge temperature control assemblies. Before purchasing, verify that the replacement part matches the exact attributes listed in the Technical Specifications table, including the manufacturer, SKU, product type, equipment model, valve configuration, connection size, connection type, and applicable manufacturer documentation.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Copeland
Part Number: 998-0500-00
Product Type: Discharge Temperature Control Valve
OEM Status: Genuine OEM
Physical Specifications:
Connection Size: 3/8 inch
Connection Type: Sweat / ODF
Valve Operation & Control:
Control Type: Discharge Temperature Control / Liquid Injection

Write Your Own Review
You're reviewing:Copeland 998-0500-00 3/8" Discharge Temperature Control Sweat Fitting Valve
Your Rating
Customer Questions
What maintenance is required for the Copeland 998-0500-00 Discharge Temperature Control Sweat Fitting Valve?

Periodically check the valve body and connections for signs of leakage or overheating. Ensure the sweat fittings remain properly sealed and free from corrosion. Verify the valve responds correctly during operation. Always isolate refrigerant pressure and power before performing any inspection or servicing work.

What are common issues with the Copeland 998-0500-00 Discharge Temperature Control Sweat Fitting Valve?

  • Valve not opening at correct temperature setpoint.
  • Restricted flow affecting compressor cooling.
  • Internal sticking causing delayed response.
  • Leakage at sweat joints or connections.
  • Failure leading to excessive discharge temperature.

What role does this valve play in protecting refrigeration compressors?

It helps prevent compressor overheating by regulating liquid refrigerant injection to maintain safe operating temperatures under heavy loads.

How does the temperature-sensing mechanism control refrigerant flow?

The sensing bulb monitors discharge line temperature and signals the valve to meter refrigerant from the liquid line when additional cooling is required.

What installation method is required for the 3/8-inch sweat connection?

The sweat connection requires brazing to compatible copper tubing to establish a secure and leak-resistant joint.

What should be checked before selecting this replacement valve?

Verify the equipment model, temperature control requirements, liquid injection configuration, connection size, and connection type against the manufacturer's service documentation.

Does this valve control refrigerant pressure within the system?

No, it operates as a temperature-actuated control that regulates liquid injection for compressor thermal protection rather than controlling suction or head pressure.

Installation Steps

Step 1: Turn off electrical power and recover refrigerant from the system.

Step 2: Open service access area and place discharge line section.

Step 3: Cut and clean tubing ends for proper sweat fit connection.

Step 4: Position the new valve ensuring correct flow orientation.

Step 5: Braze or sweat fittings carefully to avoid overheating components.

Step 6: Attach and secure temperature sensing element properly.

Step 7: Leak test connections, restore system charge, and check operation.
