Trane SWT3555 Low Pressure Open 24 PSI Close 45 PSI
Special Price $59.08 Regular Price $67.94
In stock
SKU
SWT3555

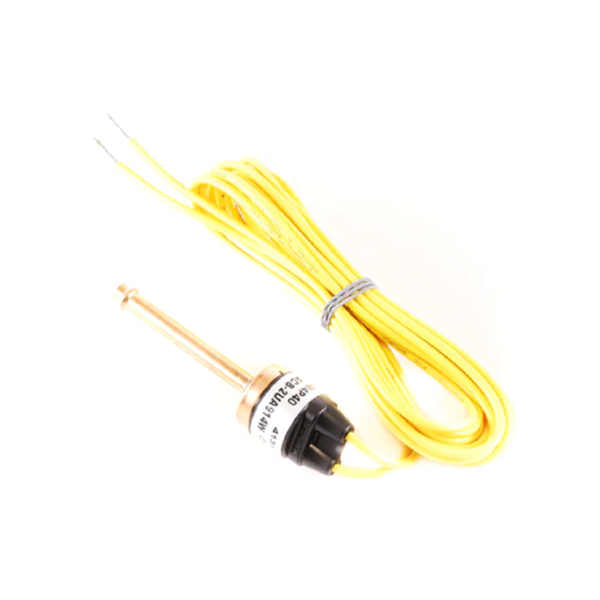

The Trane SWT3555 is an Electronic Low-Pressure Switch that is applied on refrigeration and air conditioning systems. It is a self-resetting button with a stainless steel disk that measures pressure variations within the HVAC system. If the pressure goes down to below 24 PSI, the switch is triggered and breaks the electrical connection. It rises again above 45 PSI and the switch again completes the circuit. It is made to work in hard conditions with an IP65 rating of the outer cover, and it is safe with CE, TUV, UL, and VDE certifications, with the feature of automatic reset, the switch is easy to replace.
Manufacturer:
Specifications
- Contact Configuration: SPST
- Enclosure Type: IP65
- For Use With: Refrigeration and Air Conditioning Systems
- Material: Stainless Steel Disc
- Mounting Type: Direct
- Pressure Rating: Open 24 PSI Close 45 PSI
- Standards: CE,TUV,UL,VDE
- Terminal Type: Lead Wire
- Voltage: 250 VAC
- Height: 1.95"
- Contact Arrangement: Normally Open
- Current Rating: 8A
- Features: Automatic/Manual Reset
- Function: Low
- Mount: Direct
- Number of Poles: 1
- Power Rating: 8.0 FLA, 48 LRA at 120/240 VAC
- 375 VA Pilot Duty at 120/277 VAC
- 125 VA Pilot Duty at 24 VAC
- 2A at 28 VDC
- Size: 22.6 mm Diameter 49.4 mm Length
- Temperature: -22°F to 185°F
- Type: Cartridge Control, Low, Small Disc
- Weight: 0.21lb
