Functional Devices PSH500A-LVC 100VA, Multi-Tap Power Supply converts input voltages from 120-480V to a reliable 24V output. It is used in HVAC systems to power low-voltage controls, thermostats, and components commonly used. Versatile with its multi-tap design, it is suitable for use on a wide range of equipment and installations with a range of voltage requirements. It increases system reliability through consistent power, reduced downtime, and precise equipment performance. It is durable, efficient to operate, and ideal for commercial and industrial HVAC systems, which increases energy efficiency and decreases maintenance requirements.

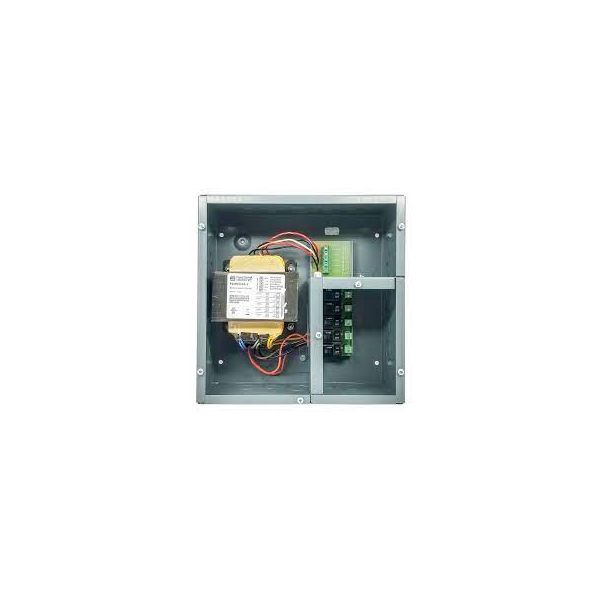

The Functional Devices PSH500A-LVC is an enclosed power supply designed for reliable and versatile low-voltage power distribution in building automation and lighting control systems. The PSH500A-LVC has a metal enclosure and separate wiring compartments for high and low voltage circuits, making it ideal for applications where safety is a concern.
Key Features:
Function:
Converts high voltage (480VAC, 277VAC, 240VAC, or 120VAC) to safe and isolated 24VAC power.
Provides five independently isolated 100VA output circuits. This caters to a wider range of low-voltage devices while maintaining electrical separation for safety and performance.
Features high/low voltage separation: Similar to the PSH300A-LVC, separate compartments ensure safety and code compliance.
Suitable for various applications: Ideal for building automation, lighting control, and HVAC systems, including VAV applications.
Enhanced Features:
Increased capacity: Five 100VA circuits provide a total of 500VA, compared to 300VA in the PSH300A-LVC. This caters to systems with higher power demands.
Removable terminal blocks: Enables easier wiring changes and maintenance compared to fixed terminal blocks.
LED indicators for each output: Provides real-time status information about each circuit's power state.
Specifications:
Input voltage: 480VAC, 277VAC, 240VAC, or 120VAC (depending on model).
Output voltage: 24VAC.
Output current: 4 Amps per circuit.
Output power: 5 x 100VA (total 500VA).
Enclosure: Metal, offering durability and protection.
Mounting: Wall-mountable for convenient installation.
Additional features:
On/off switch and circuit breaker for each output.
Plugable terminal blocks for low-voltage wiring.
UL Listed.
OSHPD-approved for healthcare facilities (in some models).
Benefits:
Enhanced versatility: Five isolated circuits cater to a wider range of low-voltage devices.
Increased power capacity: Ideal for systems with higher power requirements.
Improved serviceability: Removable terminal blocks simplify wiring changes and maintenance.
Real-time monitoring: LED indicators provide clear status information for each circuit.
Safety and reliability: Individual circuit protection and the separation of high and low voltages guarantee dependable and safe operation.
Important notes:
Always consult a qualified electrician before installing or connecting the PSH500A-LVC.
Verify compatibility with your specific system voltage and power requirements.
Observe the safety instructions and installation requirements provided by the manufacturer.
Additional information:
Functional Devices offers various RIB® series power supplies with different configurations and features. Select the model that best fits both your specific demands and the specifications of your system.
Consider consulting with a qualified HVAC or electrical contractor for assistance with selecting and installing the appropriate power supply for your building automation or lighting control system.
Signs of a Faulty Functional Devices PSH500A-LVC power supplies:
The Functional Devices PSH500A-LVC can manifest in various ways, impacting performance and potentially posing safety risks.
Performance Issues:
Low-voltage devices not functioning properly: This could be due to the power supply failing to deliver stable or sufficient voltage to one or more output circuits. Watch for malfunctioning sensors, actuators, or control devices connected to the PSH500A-LVC.
Flickering lights or intermittent operation: If lights connected to the power supply flicker or turn on and off unexpectedly, it might indicate voltage fluctuations or instability.
HVAC system malfunctioning: In VAV systems, a faulty power supply could disrupt damper control, communication with other system components, or lead to temperature control issues.
Unusual noise or vibrations: If you hear buzzing, humming, or other unusual noises coming from the power supply, it could be a sign of internal component failure.
Safety Concerns:
Tripped circuit breakers: If the circuit breakers on the PSH500A-LVC trip frequently, especially on individual circuits, it indicates an overload or potential fault within the unit.
Burning smell: A burning smell emanating from the power supply is a serious indicator of overheating or electrical malfunction. Immediately shut down the system and disconnect power if you experience this.
Visible damage: If you notice any physical damage to the enclosure, wiring, or internal components (accessible through the removable terminal block compartment), it's best to stop using the power supply and seek professional help.
Additional Warning Signs:
Dimmed or flickering LED indicators: While individual circuit indicators can be helpful, dimmed or flickering lights for any output could indicate issues with that specific circuit.
Error codes or indicator lights: Some models of the PSH500A-LVC might display error codes or have additional LED indicators that provide clues about the source of the problem. See the handbook for detailed explanations of codes and instructions for troubleshooting.
Increased energy consumption: In some cases, a faulty power supply might operate inefficiently, leading to higher energy bills.
Remember:
Safety first! If you suspect any safety concerns like burning smells, tripping circuit breakers, or visible damage, immediately shut down the system and disconnect power. For an inspection and repair, get in touch with a licensed electrician.
Avoid attempting to diagnose or fix the PSH500A-LVC power supplies on your own. If you don't have the right abilities and understanding, working with electrical equipment might be risky.
