The Mitsubishi Electric PAC-UKPRC001-CN-1 BACnet Interface is a essential device for connecting Mitsubishi HVAC systems to BACnet networks. It enables connection between Mitsubishi’s indoor units and BACnet-compliant building automation systems (BAS), for integrated control. The BACnet Interface provides a way of improving the efficiency and performance of HVAC systems by allowing easy transfer of data. It allows users to control settings, track energy usage and enhance system performance from one interface, leading to energy efficiency and comfortable indoor climate. It supports the Mitsubishi Electric HVAC products which include the ductless and the ducted systems making it suitable for both commercial and residential use.
PAC-UKPRC001-CN-1 Mitsubishi Electric Bacnet Interface

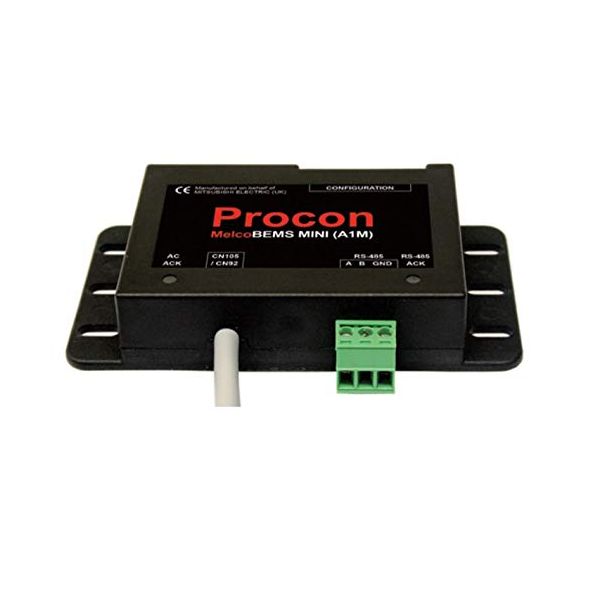

The Mitsubishi Electric PAC-UKPRC001-CN-1, also known as the MelcoBEMS Mini, is a Bacnet and Modbus interface that allows you to connect a single Mitsubishi Electric CITY MULTI®, M-Series, or P-Series indoor unit to a third-party building management system (BMS). This enables you to monitor and control the indoor unit, such as setting the temperature, fan speed, and operating mode, from the BMS interface. Improves energy efficiency by optimizing indoor unit operation. Provides data logging and reporting for analysis and troubleshooting. Simplifies system integration and maintenance
Key features:
One MelcoBEMS MINI (A1M) per indoor unit
Indoor unit connection CN105 it terminal
12VDC power from indoor unit CN105 connector
LED light notification status of valid communication between procon and indoor unit, procon and BACnet/Modbus networks
Compatible with Mitsubishi Electric CITY MULTI® M-Series, and P-Series indoor units
Signs of faulty Mitsubishi Electric Bacnet Interface
Communication Issues:
No communication between PAC and indoor unit: Check for proper connections at CN105, verify power supply (12VDC), and look for blinking LEDs that might indicate errors.
No communication between PAC and BMS: Ensure RS-485 connections are correct, test communication protocols (BACnet MSTP or Modbus RTU), and rule out BMS configuration issues.
Intermittent communication: Loose connections, signal interference, or internal malfunctions can cause sporadic communication drops.
Operational Problems:
Indoor unit not responding to BMS commands: This could be due to faulty communication, incorrect configuration in the PAC or BMS, or issues within the indoor unit itself.
Erratic behavior of the indoor unit: Unexpected temperature fluctuations, malfunctioning fan speeds, or unusual noises might indicate an issue with the interface's control signal transmission.
Data logging or reporting inconsistencies: Inaccurate or missing data from the indoor unit could be due to communication errors or internal PAC malfunctions.
