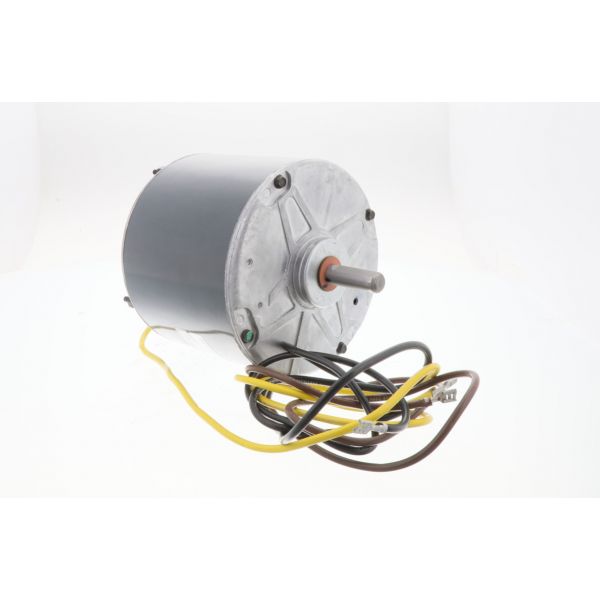

Carrier HC40GE462 Motor 460V 1/4 HP 1100 RPM CW
Special Price $403.16 Regular Price $447.51
Out of stock
SKU
HC40GE462
The Carrier HC40GE462 is a PSC motor that is permanently used in different Carrier HVAC applications. It is a sturdy machine designed for round-the-clock use, with a horsepower of 1/4 and a rotation speed of 1100 RPM. The ball bearings make the operation smooth and the motor has a long life as well as the thermal overload protection motor that has an automatic reset. It is relatively small (5.4” x 5.4” x 6.8”) which makes it easy to install in compatible units of Carrier. This is a 460V single-phase motor with a frequency of 60 Hz and takes a full load current of 0.7 amps.
Manufacturer:
Specifications
- Length: 5.4 "
- Width: 5.4 "
- Height: 6.8 "
- Bearing Type: Ball
- Capacitance : 7.5 MFD
- Frequency: 50 Hz
- Duty: Continuous (S1)
- Full Load Amps: 0.7 Amps
- Motor HP: 1/4 HP
- Motor Type: PSC (Permanent Split Capacitor)
- NEMA Frame: 48
- Number of Phases: 1 Phase
- Protection: Automatic Reset Thermal Overload
- RPM: 1100
- Rotation: Clockwise (CW)
- Shaft Diameter: 0.5 "
- Shaft Length: 1.5 "
- Voltage: 460V
- Weight: 13.44lbs
