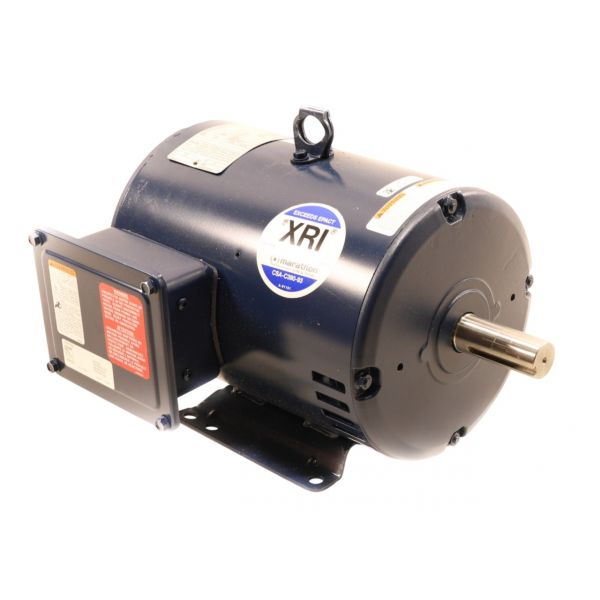

Trane MOT14486 7.5 HP Motor 3490 RPM 230/460V 3PH
Special Price $3,602.90 Regular Price $3,999.22
In stock
SKU
MOT14486
The Trane MOT14486 is a Heavy-Duty Motor for use in powerful air flow applications in large pieces of the HVAC equipment; possibly for fan blower duty use such as high workload centrifugal fan or blower units. This motor is powerful with 7.5 HP and is flexible in operation with various voltage options of 230-460V, 3-phase. A firm steel pedestal and an incorporated guard are provided for stability, and a droplet-proof casing protects it from droplets. This Motor consumes standard frequency of either 50/60 Hz with the revolving speed of 3490 RPM. It is stated that the motor offers reversible rotation to meet the requirements of certain tasks.
Manufacturer:
Specifications
- Voltage: 230-460V
- Weight: 86lbs
- Phase: Three
- Height: 8.67"
- Enclosure Type: Drip Proof
- Frequency: 50/60 Hz
- Size: 1-3/4"
- Mounting Type: Rigid Base
- Protector Type: Automatic
- Rotation: Reversible
- Shaft Diameter: 1.125"
- Speed: 3490 RPM
- Width: 25.12"
- Bearing Type: Ball
- Frame Size: 184T
- Shaft Length: 2.75"
- Temperature Rating: -20°F to 105°F
- HP: 7-1/2HP
