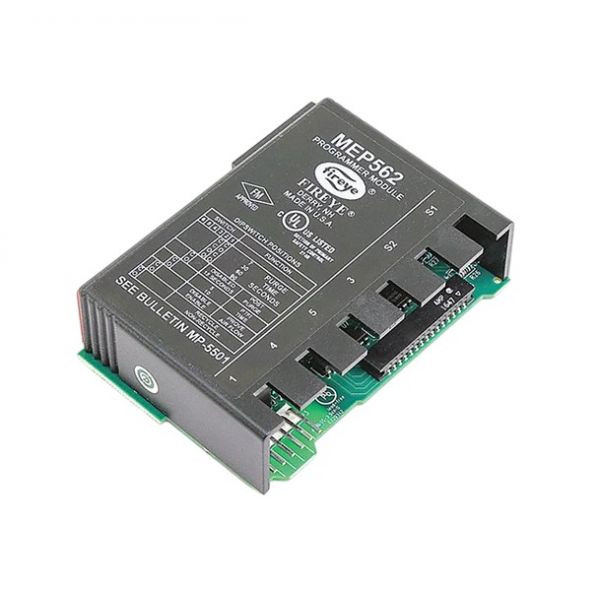

The Fireye MEP562 Programmer-Module with Lockout on Airflow is a necessary HVAC system performance and safety-enhancing component. It works by monitoring air flowing within the system and will lock out the system from operation if any of the air path to the turbo fan, providing safety and system protection. This programmer module is used most often in HVAC systems that require monitoring and control achieved to the smallest part of the airflow such as in burners and heating. Reliability, energy efficiency and reduced risk of damage from airflow issues are the benefits. It Provides better performance and compliance with safety standards in HVAC applications.
The Fireye MEP562 serves as a programmer module within the Fireye Modular MicroM control system, playing a crucial role in determining various operational characteristics. These include relight sequences following a flame outage, the burner's potential for 2-stage capability, automatic pilot cutoff when the main burner is inactive, purge timing for pre-ignition air circulation in the combustion chamber, Pilot Trial for Ignition (PTFI) timing, verification of adequate airflow before burner initiation, post-purge to clear the combustion chamber after shutdown, and the choice between recycle or non-recycle operation after a flame outage. The MEP562 Fireye programmer module is designed with a set of dipswitches, enabling users to easily select and customize the settings for these parameters.
Key features:
Precise configuration of critical operational settings, including relight sequences, 2-stage capability, pilot cutoff, purge timing, PTFI timing, and post-purge.
Equipped with dipswitches for easy setting adjustments, ensuring adaptability across diverse applications.
Enables automatic relighting after a flame outage, ensuring reliable ignition and continuous operation.
Enhances safety and energy efficiency by shutting down the pilot burner when the main burner is inactive.
Offers precise timing adjustments for purge, PTFI, and post-purge, tailoring the combustion process to specific requirements.
Provides 2-stage capability, allowing the burner to operate at different firing rates for enhanced flexibility in meeting varying heating demands.
Signs of a faulty Fireye MEP562 Programmer Module:
While the Fireye MEP562 is a reliable and durable programmer module, it's important to be aware of potential issues that might arise. Here are some signs that your MEP562 might require attention:
Operational Issues:
Burner malfunctions: If the burner exhibits unexpected behavior like frequent shutdowns, failure to ignite, or inconsistent operation, it could be a symptom of an MEP562 malfunction affecting its control parameters.
Incorrect burner settings: Observe if the burner operation deviates from its intended settings, such as improper flame modulation, delayed ignition timing, or prolonged purging. This could indicate misconfigured parameters on the MEP562.
System alarms: The MEP562 might trigger alarm conditions like "flame failure," "air flow fault," or "control error." These alarms indicate specific issues that need investigation.
Physical Indicators:
Visible damage: Check the MEP562 for any signs of physical damage like cracks, burns, or corrosion on the module or its connections. Such damage could affect its functionality.
Loose connections: Ensure all wiring connections to the MEP562 are secure and free of corrosion. Loose connections can disrupt communication and lead to malfunctions.
