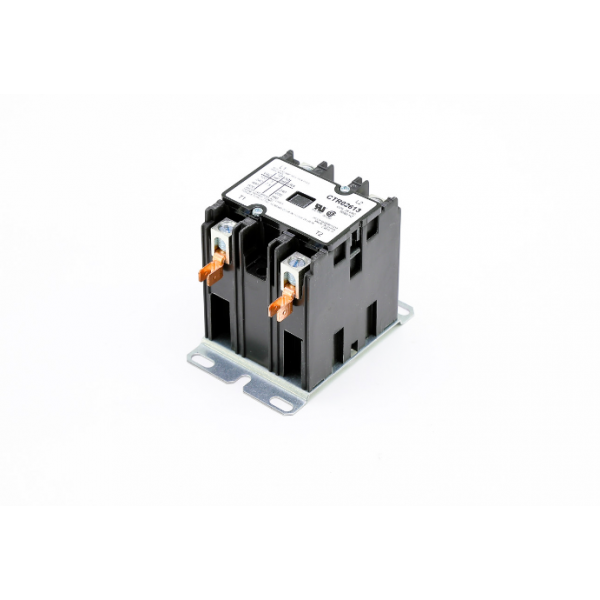

Trane CTR2613 2-Pole/3-Pole Contactor 40 Amp 24V with Lugs
Special Price $49.42 Regular Price $64.25
In stock
SKU
CTR2613
The Trane CTR2613 2-Pole/3-Pole Contactor is a physically built electrical appliance that is developed for containing HVAC systems. Its main specifications include a coil voltage of 24V and comes with silver cadmium oxide alloy contacts to improve its performance through durability and conductivity. Its contact current rating is 40 FLA (Full Load Amps) and 160 LRA (Locked Rotor Amps) which effectively regulates electrical currents up to 40 amps. It measures a small size with dimensions of 2.91 “ length, 2.37” width, and 3.622making it suitable for different HVAC applications. The wire range supported in this contactor is 14 to 4 AWG while its temperature range is -40°C to 65°C making it adaptable to different environmental conditions.
Manufacturer:
Specifications
- Length: 2.91"
- Width: 2.37"
- Height: 3.622"
- Coil Voltage: 24V
- Contact Current: 40 FLA, 160 LRA
- Features: 14 to 4 AWG, 7 Ohm Coil Resistance
- Frequency Rating: 50/60 Hz
- Material: Silver Cadmium Oxide Alloy Contact
- Aluminum Lug
- Mounting Type: Chassis Mount/Vertical
- Resistive Load: 50A
- Standards: CE,CSA,SEMKO,UL
- Temperature Rating: -40°F to 150°F
- Type: Definite Purpose
- Contact Configuration: Normally Opened
- Current Rating: 40A
- For Use With: Optional Auxiliary Switch
- Includes: Universal Mounting Configuration and Termination Options Combo Screw, Screw with Pressure Plate, Or Lug
- Number of Poles: 3
- Switching Voltage: 600 VAC
- Terminal Type: Box Lug
- Voltage Rating: 24V
- Weight: 0.98lb
