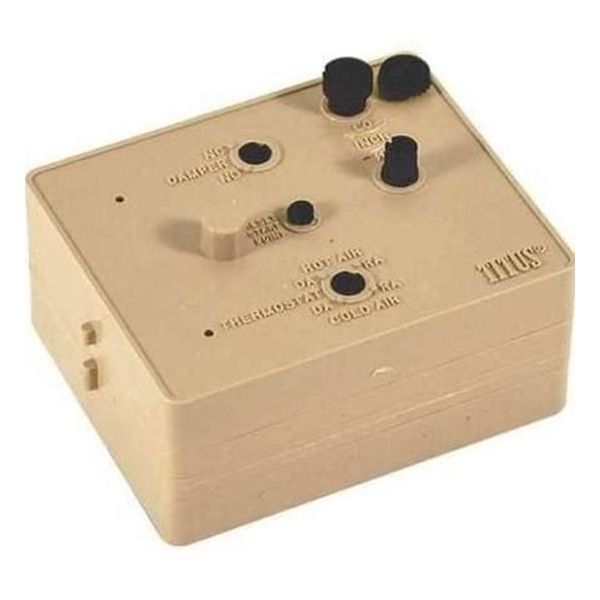

The Titus HVAC CSC-3004 Reset Volume Controller is a small, efficient part to control variable air volume in HVAC systems. This measures the temperature feedback to adjust the airflow, ensuring energy conservation and better indoor comfort. It is generally used for VAV terminal unit applications providing consistent environmental control throughout different spaces. It is a durable performance, seamless integration, and easy installation unit, which makes it suitable for commercial applications. It achieves precisely modulated capability of reducing energy consumption and optimum system efficiency, which also are sustainable for building operations and facilitate improved occupant comforts and long-term operational savings.

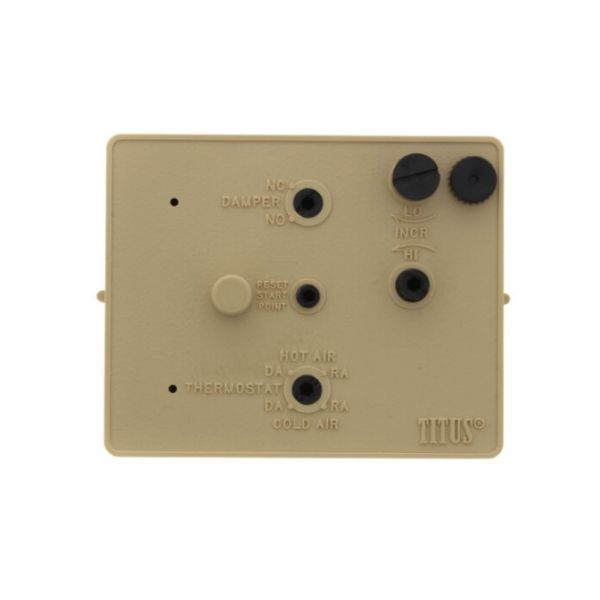

The Titus HVAC CSC-3004 is aReset Volume Controller. It's used in various Titus HVAC systems to manage the airflow volume within ductwork and diffusers, providing precise control over the temperature and comfort in specific zones or spaces. a reset volume controller for Titus II air handling units. Its purpose is to keep the airflow at a fixed volume even when the system pressure varies. The CSC-3004 features a manual damper and a pressure sensor that automatically adjusts the damper position to maintain the desired airflow. The CSC-3004 is typically used in applications where consistent airflow is critical, such as data centers, clean rooms, and hospitals. It is also a good choice for systems with variable air volume (VAV) boxes, as it can help to ensure that the VAV boxes receive the correct amount of airflow.
Key features:
Function:
Precise airflow control: Manages the volume of air flowing through ducts and diffusers to specific zones or spaces.
Improved comfort: Enables consistent and desired temperature control in different areas, enhancing occupant comfort.
Energy efficiency: Minimizes wasted energy by delivering only the necessary airflow, reducing operating costs.
Flexibility: Offers manual or automated control options for adjusting airflow based on specific needs.
Technical Specifications:
Compatibility: Designed for specific Titus HVAC models, primarily air handling units and fan coil units. Always verify compatibility before purchasing.
Control options: Some models offer manual adjustment knobs, while others integrate with building automation systems for automated control.
Additional features: These may include damper actuators, limit switches, or other control components depending on the specific model and application.
Benefits:
Precise temperature control: Creates a more comfortable environment by maintaining desired temperatures in individual zones.
Reduced energy consumption: Saves energy and lowers operating costs by optimizing airflow and preventing over-conditioning.
Customizable comfort: Provides flexibility to adjust airflow based on occupancy, usage, or individual preferences.
Seamless integration: Easy to install and operate, it integrates perfectly with the current Titus HVAC systems.
Additional Points:
The precise model and application may determine different features and capabilities.
Consult the manufacturer's documentation or technical support for detailed information, troubleshooting tips, and compatibility confirmation.
Signs of faulty Titus HVAC CSC-3004 Reset Volume Controller:
Temperature and Comfort Issues:
Uneven temperatures: Noticeable temperature variations between different rooms or spaces, despite thermostat settings, could indicate the controller isn't properly regulating airflow.
Drafts or hot spots: Feeling drafts in certain areas or persistent hot spots might suggest uneven airflow distribution due to a faulty controller.
Difficulty maintaining desired temperatures: The HVAC system struggles to reach or maintain set temperatures within specific zones, potentially related to the controller malfunctioning.
Airflow and System Performance:
Reduced airflow: Noticeably decreased airflow in specific zones or throughout the building, indicating the controller might not be opening the dampers to allow sufficient airflow.
Increased noise: Unusual grinding, humming, or loud clicking noises coming from the controller or damper actuators could suggest mechanical problems or electrical issues.
Frequent cycling: The HVAC unit turns on and off frequently due to issues maintaining desired temperatures within zones, potentially related to the controller not adjusting airflow properly.
Visual and Physical Signs:
Physical damage: Visible damage to the controller housing, wiring, or damper actuators could indicate physical impact or internal component failure.
Rust or corrosion: Rust or corrosion on the controller or actuator components can lead to electrical issues and malfunctions.
Stuck dampers: Dampers controlled by the reset volume controller might be stuck in an open or closed position, preventing proper airflow adjustment.
Electrical and System Malfunctions:
Tripped circuit breaker: If the circuit breaker connected to the HVAC unit trips frequently, it could be due to a fault within the controller causing a power overload.
Error codes: Some HVAC systems display error codes that might point to specific issues with the reset volume controller or its connected actuators. Consult your unit's manual for error code meanings.
Complete system shutdown: In severe cases, a faulty controller can lead to the entire HVAC system shutting down to prevent further damage.
Remember:
These are only a few possible indicators; the precise symptoms could change based on the severity of the issue and the setup of your Reset Volume Controller CSC-3004 system.
You should immediately cease operating the HVAC unit and get in touch with a certified HVAC professional for analysis and repair if you suspect a malfunctioning reset volume controller. If you lack the requisite knowledge and skills, do not try to fix the controller yourself.
Ignoring these warnings can lead to further discomfort, energy inefficiency, and potential damage to your HVAC system.
