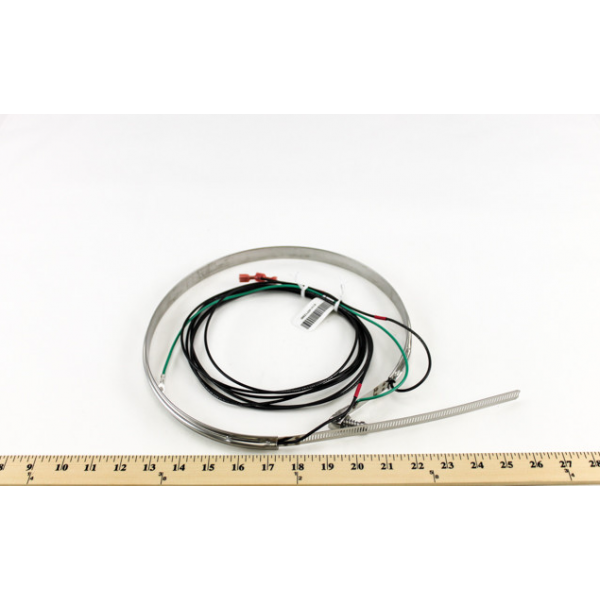

Trane HTR15194 Crankcase Heater Belt 460-480V 90-100W 74" Leads
Special Price $36.76 Regular Price $47.79
In stock
SKU
HTR15194
The Trane HTR15194 Crankcase Heater Belt is one of the components in HVAC systems that are used to stop the refrigerant from moving around in the system and causing harm to the compressor during off cycles. This heater belt runs on 480V AC has a power output of 90-100W, has a belt length of 74 inches, and is built to last, with 18 AWG stranded tin-plated copper wires that are insulated with PVC. It is designed to be dependable, with a green or green-yellow striped bare ground wire and black-sleeved lead wires. Usually placed in the compressor of air conditioners and refrigeration equipment, its function is to regulate the temperature in the crankcase.
Manufacturer:
Specifications
- Length: 10.5"
- Width: 10.5"
- Height: 1"
- Diameter: 10"
- Number of Ground Terminals: 1
- Heating Wire Length: 39.69"
- Overall Length: 25.19"
- Size: 10" Diameter
- Type: Crankcase Heater
- Diameter Size: 10"
- Ground Wire: 18 AWG
- 600V
- PVC
- Stranded Tin Plated Copper
- TEW 105°C
- Color: Green or Green With Yellow Stripe
- UL
- CSA Type
- Lead Wire: Wire Size - 18 AWG
- 600 V
- PVC
- Stranded Tin Plated Copper
- TEW 105 Deg. C
- Color - Black
- UL
- CSA Type
- Power Rating: 90 to 100 W
- Voltage: 480 VAC
- Weight: 0.59lb
