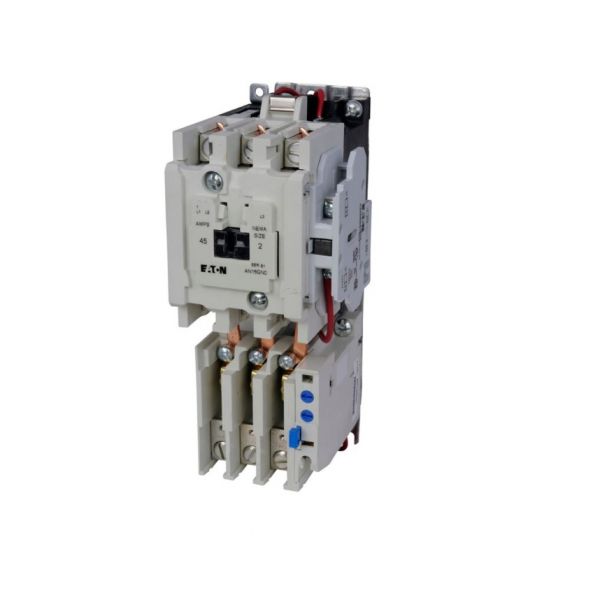

The Cutler Hammer Eaton AN16GN0AB Motor Starter is a well-constructed electrical product used for controlling and protecting electric motors especially in HVAC systems. This Size 2 motor starter is designed for 120V and has three poles for effective control of motor operations. It works through a contactor which opens or closes the circuit to the motor and an overload relay that measures current intensity so as not to overburden the motor. This starter is necessary for HVAC systems like compressors and fans to guarantee the simplification of the initial process and maintenance of expected reliability.
A 3-phase full voltage non-reversing AC motor starter from Cutler Hammer-Eaton's Freedom NEMA series, the AN16GN0AB. In a variety of industrial applications, it is intended to protect and regulate electric motors. An industrial and commercial setting can rely on the Cutler-Hammer AN16GN0AB, a full-voltage, NEMA size 2 motor starter that is non-reversing and built to control three-phase AC motors with reliability. As a member of the FreedomTM Series, it provides a sturdy build, a small footprint, and all the features you need for a motor that operates safely and effectively. A three-phase, full-voltage, non-reversing motor starter made especially for NEMA Size 2 applications is the Cutler-Hammer - Eaton AN16GN0AB. This sturdy, little starter provides dependable motor protection and control in a range of commercial and industrial A three-phase, full-voltage, non-reversing motor starter, the Cutler-Hammer - Eaton AN16GN0AB is intended for a range of industrial.
Key features:
Control and Protection:
3-phase full voltage non-reversing: Directly controls 3-phase motors without additional transformers or reactors.
NEMA size 2: Compact design suitable for medium-sized motors (up to 15 HP).
C306 bi-metallic overload relay: Provides thermal protection for the motor against overloads and overheating.
One normally open (NO) auxiliary contact: Signals motor status (running/stopped) to external control circuits.
Performance and Versatility:
Wide voltage range: Operates from 115V to 480/600V, adapting to various motor configurations.
High amperage rating: 45 Amps, suitable for common motor currents.
Open type enclosure: Easy access for wiring, inspection, and maintenance.
CSA Certified and UL Listed: Ensures safety and quality standards.
Benefits:
Reliable motor control: Ensures smooth and efficient motor operation.
Motor protection: Protects against overloads, preventing motor damage and downtime.
Compact design: conserves important rooms in enclosures and control panels.
Easy installation and maintenance: Simplifies setup and service.
Versatile applications: Ideal for a range of commercial and industrial applications.
Applications:
HVAC systems
Pumps
Conveyors
Fans
Machine tools
And other motor-driven equipment
Additional Features:
Horizontal mounting: Simple and convenient installation of Starter AN16GN0AB on walls or panels.
Heater packs (optional): Can be added for cold weather applications to prevent condensation and ensure reliable operation.
Wide range of applications: Suitable for pumps, fans, conveyors, compressors, and other motor-driven equipment.
Sings of faulty Starter AN16GN0AB Cutler Hammer-Eaton:
General:
Motor not starting: This is the most obvious sign and could be caused by various issues like a faulty contactor coil, overload relay trip, wiring problems, or even a problem with the motor itself.
Humming or buzzing noises: These sounds might indicate a struggling contactor coil or overload relay.
Burning smell: This is a serious indicator and could signify overheating or electrical arcing. Immediately shut down the power and inspect the starter for damage.
Visible damage: Look for physical damage to the starter housing, wiring, or internal components.
Specific to AN16GN0AB:
Overload relay tripping frequently: This suggests the motor might be drawing excessive current due to overload or internal fault. Reduce load or check motor health.
Auxiliary contact failure: The NO contact might not activate or deactivate properly, impacting any connected control circuits.
Open contactor coil: This prevents the starter from energizing the motor, resulting in no start condition.
Stuck contactor contacts: The contactor contacts might get stuck in the open position, preventing power flow to the motor.
Excessive vibration or noise: This could indicate internal component issues or misalignment.
Additional Tips:
Refer to the AN16GN0AB user manual: The manual provides troubleshooting information and specific error codes that can help diagnose the problem.
Check for loose connections: Complete failure or sporadic problems can result from loose wiring.
Verify proper voltage supply: Ensure the motor receives the correct voltage as per its rating.
Consult a qualified electrician: If you're not comfortable troubleshooting electrical equipment yourself, it's best to call a qualified electrician for diagnosis and repair.
Choose the best HVAC equipment parts and supplies from PartsHNC!
