Resideo AM101R-UT-1 Mixing Valve 3/4" Union NPT 70°F-180°F

Special Price $133.16 Regular Price $153.13
In stock
SKU
AM101R-UT-1

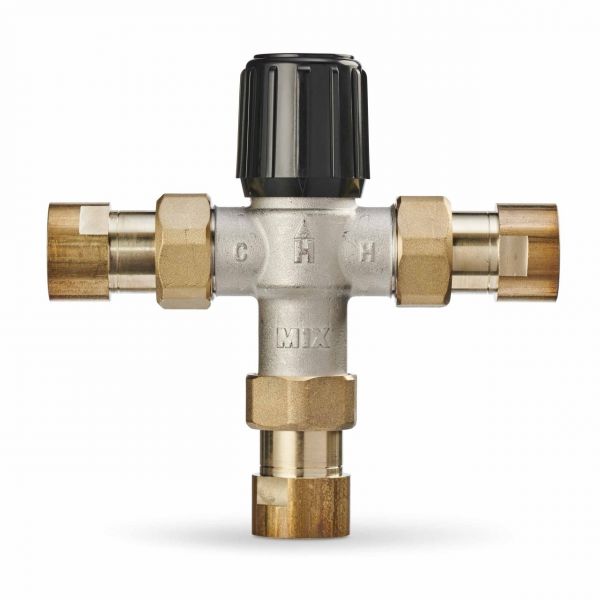

The Resideo AM101R-UT-1 Mixing Valve is a 3/4" Union NPT valve for non-portable water systems with a water temperature range of between 70°F and 180°F. This valve is constructed from Teflon coated, nickel plated brass which makes the valve long lasting and less susceptible to rust. It has control valves at the cold and hot inlets to enhance safety since backflow is prevented. It is easy to make precise temperature changes using the handwheel, and the flow coefficient of 3.9 Cv allows flow rates from 0.50 to 12 gpm. This mixing valve is ideal for use in air conditioning and ventilation systems, particularly in both cooling and heating systems that need a constant water temperature.
Manufacturer:
https://www.partshnc.com/media/catalog/product/a/m/am101r-ut-1-resideo_partshnc.jpg

Specifications

  • Type: Mixing Valve
  • Controlled Media: Non Potable Water
  • Re-Circulation: No
  • Color: Metallic
  • Includes: Check Valves on Hot and Cold Inlets
  • Height: 6.4"
  • Length: 6.5"
  • Adjustment Means: Handwheel
  • Flow Coefficient: 3.9 Cv
  • Flow Rate Range: 0.50 gpm, 1.9 lpm - 12 gpm, 45.4 lpm
  • Number of Check Valves: 2
  • Temperature Range: 70°F to 180°F
  • Max Pressure: 150 PSI
  • Seal Material: EPDM Rubber
  • Valve Body Material: Teflon-coated, Nickel-plated Brass
  • Connection Size: 3/4"
  • Connection Type: Union NPT
  • Nominal Diameter: DN20
  • Number of Connections: 3
  • Valve Body Pattern: Straight Through
Manufacturer Name: Resideo
Product Number: AM101R-UT-1
OEM Part Number: AM101R-UT-1
Product Description: 3/4" 70-180F Union Npt
Weight:2.69lbs/1220.16g
