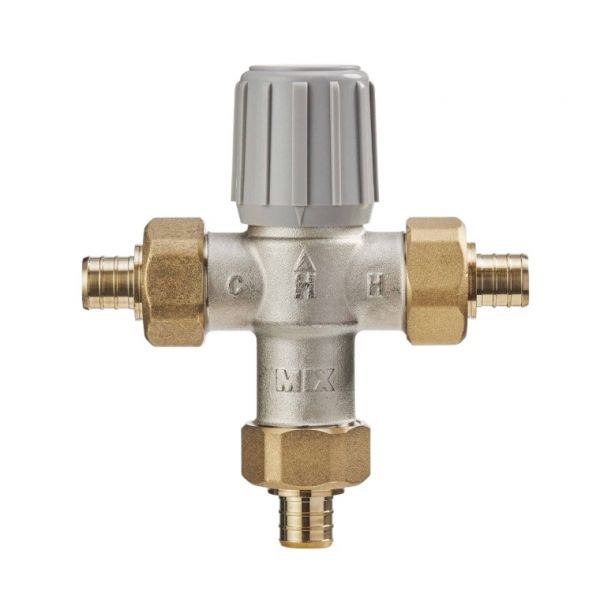

Resideo AM100-UPEX-1LF 1/2" Union PEX Mixing Valve 70°F-145°F AM-1
Special Price $138.81 Regular Price $159.63
In stock
SKU
AM100-UPEX-1LF
The Resideo AM100-UPEX-1LF is a Thermostatic Mixing Valve for precise control of water temperature in the range of 70°F to 145°F for safety and comfort. This product is commonly applied in homes and offices to avoid water that is either too hot or too cold on the skin. The mixing valve ensures that the correct temperature of the water is kept over time by blending cold and hot water regardless of the type of water supply coming in. It can be used in any type of HVAC system including home hot water, radiant floor heating, and industrial uses.
Manufacturer:
Specifications
- Type: Mixing Valve
- Approvals and Standards: ASSE 1017 Certified, IAPMO Listed
- Color: Metallic
- Includes: Check Valves on Hot and Cold Inlets
- Height: 6"
- Length: 5.1"
- Adjustment Means: Handwheel
- Domestic Hot Water: Valve
- Flow Coefficient: 3.9 Cv
- Flow Rate (Min): 0.50 gpm, 1.9 lpm
- Number of Check Valves: 2
- Temperature Range: 70°F to 145°F
- Max Pressure: 150 PSI
- Seal Material: EPDM Rubber
- Valve Body Material: Teflon-coated, Nickel-plated Brass
- Connection Size: 1/2"
- Connection Type: Union PEX
- Nominal Diameter: DN15
- Number of Connections: 3
- Valve Body Pattern: Straight Through
