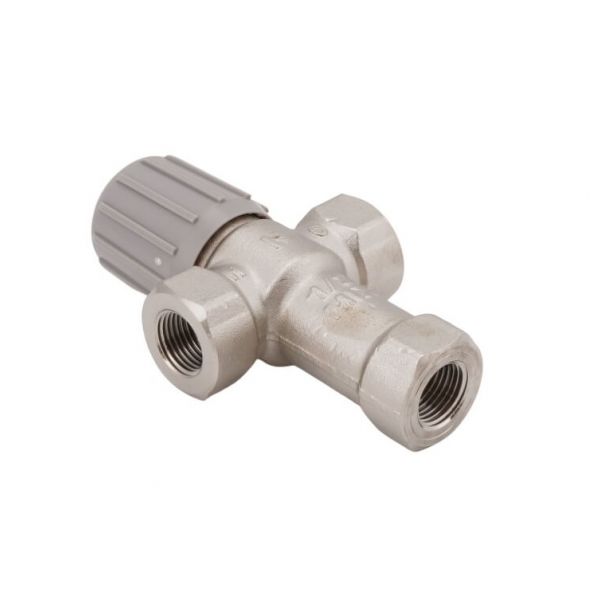

Resideo AM100-1LF Mixing Valve 1/2" NPT 70-145°F
Special Price $124.59 Regular Price $143.28
In stock
SKU
AM100-1LF
The Resideo AM100-1LF Mixing Valve is a 1/2" NPT valve used in many different HVAC systems to control the water temperature. It has a mixing valve that regulates the output temperature to between 57°C and 62°C always providing hot water safely for use. This valve is durable has a Teflon-coated nickel-plated brass material and is fitted with an EPDM rubber seal. It has a flow coefficient of 3.2 Cv and an operational pressure of up to 150 PSI. Recommended for home and commercial applications, the heaters increase efficiency by limiting heat buildup and encouraging the use of hot water.
Manufacturer:
Specifications
- Type: Mixing Valve
- Approvals and Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed
- Dimensions (LxH)
- 3"x5.8"
- Adjustment Means: Handwheel
- Cold Inlet Temperature Range: 39°F to 80°F
- Flow Coefficient: 3.2 Cv
- Hot Inlet Temperature Range: 120°F to 180°F
- Number of Check Valves: 2
- Operating Pressure: 150 PSI
- Seal Material: EPDM Rubber
- Body Material: Teflon-coated, Nickel-plated Brass
- Connection Size: 1/2"
- Connection Type: NPT
- Nominal Diameter: DN15
- Number of Connections: 3
