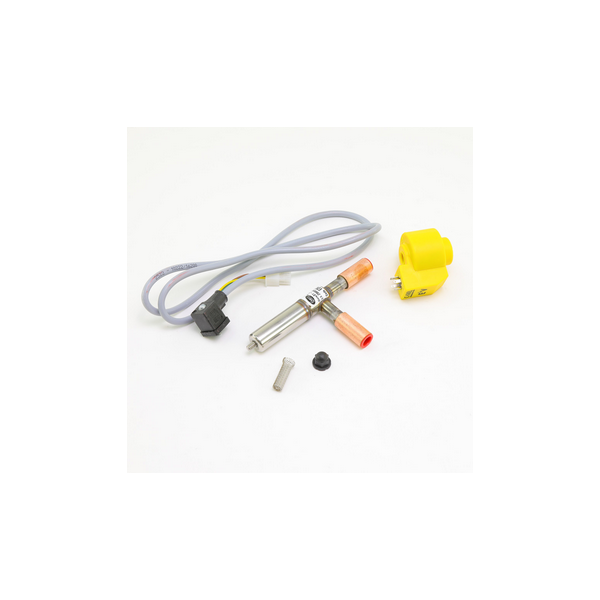

Heatcraft Refrigeration 89997806 Beacon Carel Valve Kit

Special Price $999.24 Regular Price $1,860.95
In stock
SKU
89997806

The Heatcraft Refrigeration 89997806 Beacon Carel Valve Kit is a replacement item designed for carel valves found in a variety of commercial refrigeration applications. It is a crucial component of the HVAC system, moderating refrigerant flow. The valve set directly supports the preservation of ideal system performance by guaranteeing appropriate temperature management and refrigerant circulation. This results in several advantages, such as higher productivity, lower energy usage, and longer equipment life. Taken another way, the valve kit prolongs the life of your equipment and keeps your business refrigeration system operating properly, potentially saving you money on energy expenditures.

https://www.partshnc.com/media/catalog/product/8/9/89997806_heatcraft-refrigeration_partshnc.jpg

PRODUCT OVERVIEW:
A valve kit provides a designated set of components for service, maintenance, or replacement within compatible refrigeration equipment. Heatcraft Refrigeration 89997806 Beacon Carel Valve Kit OEM is designed to support electronic expansion and fluid regulation within compatible evaporator and refrigeration systems. Installed within the Beacon Carel system assembly, it restores exact flow control functionality across system lines. Proper kit installation maintains precise superheat management, prevents temperature fluctuations, and protects connected refrigeration components from erratic refrigerant delivery.

REFRIGERANT FLOW MODULATION:
The valve kit components work together within the electronic control interface to regulate refrigerant flow based on system demand. Receiving signals from the Beacon Carel controller, the valve modulates its internal passage to adjust the volume of liquid refrigerant entering the evaporator coil. Precise mechanical response to electronic inputs ensures target superheat levels are maintained under changing thermal load conditions.

SYSTEM FLOW MANAGEMENT:
During equipment operation, varying cooling loads require continuous adjustment of internal flow passages. The components in the kit provide a sealed, low-friction assembly that responds rapidly to controller commands without binding or pressure bypass. Maintaining reliable flow regulation prevents evaporator starving during high loads and guards against liquid floodback to the compressor during low-load periods.

REPLACEMENT GUIDELINES:
Replace the valve kit when inspection confirms loss of flow regulation, erratic superheat management, mechanical binding, or active refrigerant leaks around the valve assembly. Because replacing this component requires servicing electronic expansion controls, handling pressurized refrigerant circuits, line evacuation, and leak testing, work must be performed by a qualified HVAC or refrigeration technician. The technician must safely recover system refrigerant, isolate the valve assembly, replace worn kit components, and perform post-installation leak checks and electronic control calibration. Always verify technical documentation to confirm component fitment before installation.

COMMON FAILURE SYMPTOM:
Loss of fluid flow regulation through the valve assembly.

Active fluid leakage around the valve assembly or connection points.

Unintended restriction or stoppage of fluid flow.

Visible cracking or structural damage on installed kit components.

EQUIPMENT COMPATIBILITY:
Heatcraft Refrigeration 89997806 Beacon Carel Valve Kit is intended for select Heatcraft refrigeration systems equipped with Beacon Carel electronic control assemblies. Confirm that your system uses the Beacon Carel expansion valve series. Cross-reference the equipment manufacturer, part number, and product designation against your system's original technical documentation or rating plate before purchasing.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Heatcraft Refrigeration
Part Number: 89997806
Product Type: Beacon Carel Valve Kit

Write Your Own Review
You're reviewing:Heatcraft Refrigeration 89997806 Beacon Carel Valve Kit
Your Rating
Customer Questions
What maintenance is required for the Heatcraft Refrigeration 89997806 Beacon Carel Valve Kit?

Regularly inspect the valve kit for signs of wear, corrosion, or leaks in connections. Ensure proper calibration and clean internal components to prevent blockage. Tighten fittings securely and verify electrical connections. Routine maintenance supports efficiency, ensures accurate operation, and prevents system failures.

What are common issues with the Heatcraft Refrigeration 89997806 Beacon Carel Valve Kit?

  • Valve not opening or closing properly.
  • Refrigerant flow inconsistencies.
  • Electrical control malfunctions.
  • Leakage at connection points.
  • Sensor miscommunication or inaccurate readings.
  • Pressure regulation instability.

What function does a Beacon Carel valve kit serve in a refrigeration system?

A Beacon Carel valve kit provides exact replacement components to maintain electronically controlled refrigerant metering, ensuring proper superheat management and evaporator performance.

Why is electronic expansion control critical in commercial refrigeration equipment?

Electronic control allows rapid, precise adjustments to refrigerant flow in response to changing heat loads, preventing evaporator coil freezing and protecting the compressor from liquid floodback.

Does replacing the Heatcraft Refrigeration 89997806 valve kit require a qualified technician?

Yes, replacement requires a qualified HVAC or refrigeration technician to safely manage refrigerant recovery, perform line evacuation, execute leak tests, and verify electronic control inputs.

What signs indicate that a Beacon Carel valve kit needs replacement?

Common failure signs include improper superheat readings, restricted refrigerant flow, active fluid leakage around the valve assembly, or physical component wear.

How can replacement compatibility be verified for the Heatcraft Refrigeration 89997806?

Cross-reference the equipment brand name, part number, and Beacon Carel valve designation directly against your system's official parts catalog or unit manual before purchasing.

Installation Steps

Step 1: Turn off electrical power and isolate the refrigeration system; recover refrigerant before opening any sealed components.

Step 2: Remove the existing old Carel valve assembly and clean mounting surfaces to secure contamination.

Step 3: Install the new Carel valve kit in the correct orientation per flow markings.

Step 4: Secure all fittings and electrical connections, ensuring proper torque and sealing integrity.

Step 5: Evacuate the system to remove moisture and air, then recharge with the specified refrigerant.

Step 6: Perform leak check and commissioning tests to confirm stable pressure control and proper system operation.
