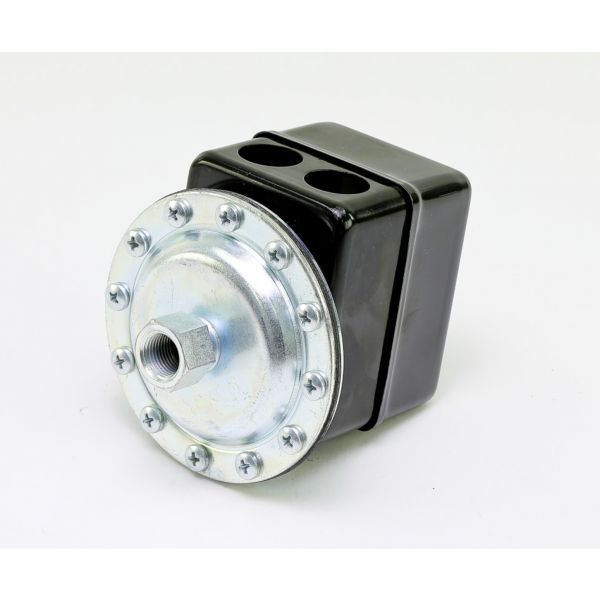

The Hubbell Industrial Controls 69HAU3Z2935 Pressure Switch 65 PSI is a dependable switch that can handle maximum pressure. This switch is equipped with a built-in valve and is used in HVAC systems, air compressors and other industrial applications to monitor and control air pressure levels. It turns the equipment on or off depending on the pressures that are set. The benefits of preventing system overpressure, energy efficiency and equipment Damage, provided by this product are consistent pressure regulation and reduced need for manual intervention.
The Hubbell Industrial Controls part number 69HAU3Z2935 is a heavy-duty pressure switch with an unloader valve. It is intended for use in industrial settings where exact pressure control is necessary. The switch has a pressure range of 29 to 35 psi and a maximum working pressure of 65 psi. The unloader valve helps to protect the pump from damage by relieving pressure when the system is not in use
Key Features:
Type: Heavy-duty pressure switch
Pressure range: 29 to 35 psi (pounds per square inch) of adjustable pressure, appropriate for a variety of pressure control applications
Setpoint and differential: Adjustable setpoint and differential (deadband) allow for precise control of the pressure at which the switch activates and deactivates.
Construction: Durable and resistant to hostile situations, reinforced internals with an aluminum housing that is tough.
Electrical connections: 1/2" NPT male threaded electrical connections for secure and leak-proof installation.
Additional features: Unloader valve (in some models) helps prevent pump cycling and prolongs its lifespan.
Applications:
The Pressure Switc 69HAU3Z2935 is commonly used in various industrial applications, including:
Pump control: Starting and stopping pumps based on pressure changes in systems like water pumps, oil pumps, and air compressors.
Pressure relief: Protecting equipment from overpressure by activating relief valves when pressure exceeds a set point.
Level control: Maintaining liquid or gas levels in tanks or vessels by activating pumps or valves based on pressure changes.
Process control: Monitoring and regulating pressure in various industrial processes like food processing, chemical manufacturing, and power generation.
Signs of a Faulty 69HAU3Z2935 Pressure Switch Hubbell Industrial Controls:
The Hubbell Industrial Controls 69HAU3Z2935 is a sturdy pressure switch, but like any equipment, it can experience issues over time. Here are some signs to watch out for that might indicate a faulty 69HAU3Z2935:
Performance Issues:
Pump not turning on or off as expected: This could be due to a faulty switch not activating or deactivating at the correct pressure setpoint.
Erratic pressure fluctuations: The switch might not maintain consistent pressure control, leading to unexpected pressure spikes or drops.
Leaks at the electrical connections: Leakage around the 1/2" NPT connections can indicate faulty seals or damage to the housing.
Unloader valve malfunction (if equipped): The unloader valve might not open or close properly, leading to pump cycling or other issues.
Unusual Behavior:
Constant buzzing or humming: This could indicate a stuck switch or internal electrical malfunction.
Excessive heat generation: If the switch feels abnormally hot to the touch, it could be overheating due to internal problems.
Visible damage: Look for cracks or dents in the housing, loose or broken wires, or any signs of physical impact.
System Consequences:
Equipment damage: Overpressure or underpressure caused by a faulty switch can damage pumps, valves, or other equipment in the system.
Production disruptions: Inconsistent pressure control can lead to production slowdowns or stoppages in industrial processes.
Safety hazards: Faulty pressure switches can create safety risks if they fail to properly control pressure in critical systems.
Remember: If you notice any of these signs, it's crucial to immediately stop the system and consult a qualified technician for diagnosis and repair. Do not attempt to fix the pressure switch yourself, especially considering the potential risks associated with industrial equipment and high-pressure systems.
Additional Tips:
Regular maintenance: Following the manufacturer's instructions for cleaning, inspection, and calibration can help prevent issues and extend the lifespan of the switch.
Proper installation: Ensure the switch is installed and wired correctly according to the manual and relevant safety regulations.
Monitor performance: Regularly check the pressure readings and system behavior to identify any potential problems early on.
