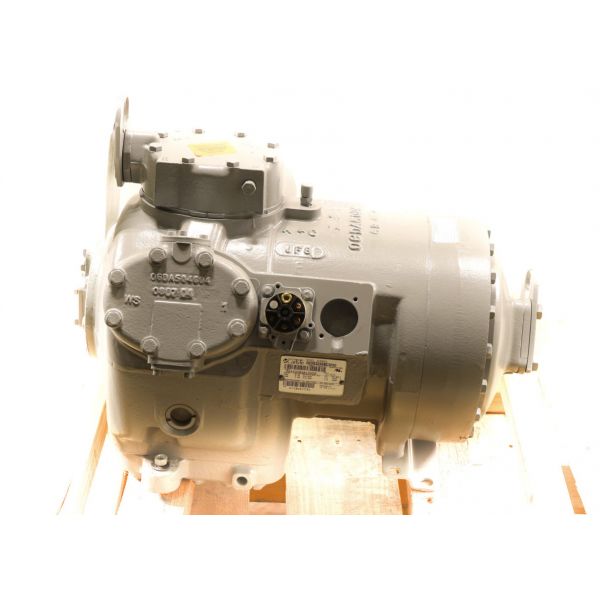

Carrier 06DS3286BC3650 Compressor 460V

Special Price $10,103.59 Regular Price $11,214.99
Out of stock
SKU
06DS3286BC3650
The Carrier 06DS3286BC3650 is among the components that are used in various commercial HVAC systems such as coolers and air conditioners. It is the core of refrigerant circulation which is the basic mechanism of heat absorption and heat rejection. This particular compressor is built for the tough tasks, it is a 460V, 3-phase power compressor. Its semi-hermetic casing gives more reliability for the uninterrupted functioning of the device. The Carrier 06DS3286BC3650 uses several refrigerants and has a standard frequency of 60 Hz. It cools with mineral or polyolester oil and it has a thermal overload protection for protection against thermal overload. This compressor is designed to circulate refrigerant in the most efficient way to ensure the right cooling in the large commercial HVAC systems.
Manufacturer:
https://www.partshnc.com/media/catalog/product/0/6/06ds3286bc3650_1.jpg

Specifications

  • Length: 25.5"
  • Width: 20"
  • Height: 23"
  • Weight: 295lbs
  • Voltage: 460V
  • Compressor Housing: Semi-Hermetic
  • Compressor Type: Reciprocating
  • Frequency: 60Hz
  • Oil Type: Mineral,Polyolester
  • Overload Type: Thermal
  • Phase: 3
  • Protection: Thermal Protection
  • Suction Line Fitting Type: Sweat or Braze
  • Refrigerant: Various

Compressors provide the pressure change needed to move refrigerant through a refrigeration system and support cooling operation. The Carrier 06DS3286BC3650 is an OEM Compressor designed for compatible air-conditioning and refrigeration equipment. It processes refrigerant vapor before the vapor continues through the system's heat-transfer components. The compressor serves as a key component in equipment that relies on a continuous refrigeration cycle.

COMPRESSOR OPERATION AND PRESSURE GENERATION:
During operation, the compressor draws in low-pressure refrigerant vapor and increases its pressure before sending it onward through the refrigeration circuit. This pressure change supports the refrigerant's movement through the system and allows the remaining components to carry out their respective roles in the cooling cycle.

ELECTRICAL OPERATION:
The compressor is specified for a 460V supply. Its motor converts electrical power into the mechanical action needed to compress refrigerant vapor. Confirming the equipment's electrical requirements before installation helps prevent selection of a compressor with an unsuitable supply rating.

REPLACEMENT GUIDELINES:
Replace the Carrier 06DS3286BC3650 when the compressor is confirmed to be faulty or when it can no longer provide the compression required for normal equipment operation. Before ordering, compare the existing compressor's complete part number with the equipment documentation and applicable replacement information.

COMMON SIGNS OF FAILURE:

  • Cooling equipment fails to maintain the required temperature.
  • The compressor does not start when operation is requested.
  • Cooling performance decreases during normal operation.
  • Electrical protection repeatedly interrupts compressor operation.
  • Unusual compressor noise or vibration develops.

EQUIPMENT COMPATIBILITY:
The Carrier 06DS3286BC3650 Compressor should be matched to equipment that identifies this OEM compressor as the applicable component. Suitability depends on the requirements of the specific air-conditioning or refrigeration system. Before purchasing, compare the equipment model and existing compressor identification with the applicable parts documentation.

TECHNICAL SPECIFICATIONS:
Part Identification:
Brand: Carrier
Part Number: 06DS3286BC3650
Product Type: Compressor
Electrical Specifications:
Voltage: 460V

Write Your Own Review
You're reviewing:Carrier 06DS3286BC3650 Compressor 460V
Your Rating
Customer Questions
What type of product is the Carrier 06DS3286BC3650?

The 06DS3286BC3650 is an OEM Compressor intended for compatible air-conditioning and refrigeration equipment.

Can the Carrier 06DS3286BC3650 replace another Carrier compressor?

Only if the equipment parts documentation identifies that compressor as an approved replacement. The Carrier brand alone does not establish interchangeability.

What should I do if the 06DS3286BC3650 does not start in the equipment?

Have the 460V supply, wiring, controls, and compressor circuit checked to identify the cause before replacing any components.

Should I replace the compressor if it repeatedly shuts down during operation?

Not without diagnosis. Repeated shutdowns may involve the compressor or another electrical or refrigeration-system issue.

What should I verify before ordering the 06DS3286BC3650?

Verify the complete part number, equipment model, and applicable electrical and compressor requirements against the equipment documentation.
