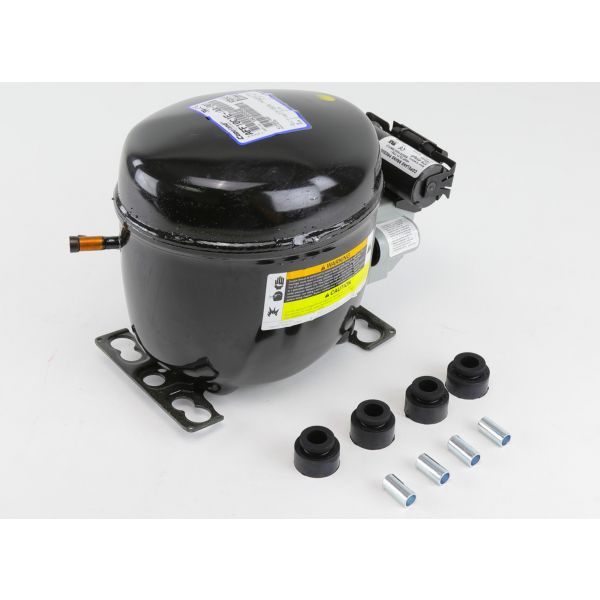

Copeland AFF10C1E-IAA-901 1,000 BTU Compressor 115V 1-Phase
Specifications
- Type: Compressor
- Phase: 1
- Voltage: 115V
- Capacity: 1000 BTU
- Frequency: 50Hz
- Refrigeration Type: R-22
- Application: Low Temperature
- Cooling Efficiency (EER): 4.1
- Weight: 26 Lbs
Loyalty ProgramRefrigeration compressors support the cooling process by circulating refrigerant through the system and enabling heat transfer. The Copeland AFF10C1E-IAA-901 is a genuine OEM compressor designed for refrigeration applications requiring a 1,000 BTU capacity. It compresses refrigerant vapor to support its movement through the refrigeration circuit. This function helps the equipment maintain its intended cooling operation when the compressor is correctly matched to the system.
REFRIGERANT COMPRESSION PROCESS:
The compressor plays a central role in the refrigeration cycle by drawing in low-pressure refrigerant vapor and increasing its pressure. The Copeland AFF10C1E-IAA-901 performs this compression function, allowing refrigerant to move toward the next stages of the cooling process. Proper compressor operation supports refrigerant circulation and the overall performance of the refrigeration system.
SUCTION AND DISCHARGE FLOW:
Refrigerant must move through the compressor in a controlled flow to support continuous cooling operation. The suction side receives refrigerant vapor from the refrigeration circuit, while the discharge side directs compressed vapor onward through the system. The Copeland AFF10C1E-IAA-901 supports this movement as part of its role in the refrigeration circuit.
REPLACEMENT GUIDELINES:
Replacement may be necessary when a confirmed compressor fault prevents the refrigeration system from operating correctly or maintaining its required cooling performance. Before ordering the Copeland AFF10C1E-IAA-901, compare the existing compressor part number with the equipment documentation. Also verify the required capacity, voltage, and phase to help avoid selecting an unsuitable replacement.
COMMON FAILURE SYMPTOMS:
EQUIPMENT COMPATIBILITY:
The Copeland AFF10C1E-IAA-901 is intended for refrigeration applications requiring a compressor with a 1,000 BTU capacity and 115V single-phase electrical characteristics. Confirm the existing compressor part number and compare the equipment manufacturer's documentation before installation. Matching the capacity and electrical requirements alone does not guarantee compatibility with every refrigeration system.
Technical Specifications:
Part Identification:
Brand: Copeland
Part Number: AFF10C1E-IAA-901
Product Type: Compressor
Capacity Performance:
Capacity: 1,000 BTU
Electrical Specifications:
Voltage: 115V
Phase: Single-phase (1PH)
