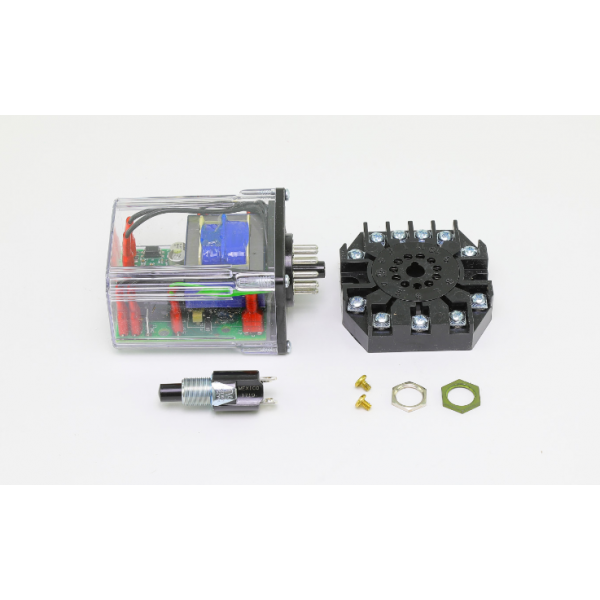

The Warrick-Gems Sensors & Controls 26NMB1A0A Liquid Level Relay operates as a flexible which detects fluid levels for different applications including HVAC systems. The part operates through a probe which detects changes in liquid levels to activate or deactivate pumps and valves and alarms according to specified thresholds. The part maintains fluid control through its monitoring system which stops both overflow situations and dry-run equipment damage. The part operates in cooling towers and condensate return systems and water treatment systems to improve system efficiency and protect equipment from failure and enhance operational safety and reliability in HVAC systems.
The 26NMB1A0A is a solid-state liquid-level relay from Warrick (Gems Sensors) belonging to their Series 26M line. These relays are renowned for their small size, adaptability, and consistent level of control across a range of uses. With its accurate liquid level monitoring and control capabilities, the 26NMB1A0A from Warrick-Gems Sensors & Controls is a dependable liquid level relay suitable for a wide range of industrial applications. This relay is built to last in harsh conditions thanks to its precise and resilient engineering.
Key features:
Function:
Monitors liquid levels in tanks, reservoirs, and vessels.
Provides two independent control outputs based on preset levels.
Liquid Level Control:
Two SPDT (Single Pole Double Throw) relays for switching pumps, alarms, or other devices.
Four level control modes: high level, low level, high-low level, and delay on/off.
Adjustable sensitivity and hysteresis for precise level detection.
Setting a time delay protects the pump against abrupt cycling.
Versatility:
Compatible with various sensors: NO/NC float switches, conductivity probes, and pressure sensors.
For flexible installation, use panel mounting or DIN rail.
Input for an external alarm to provide more control possibilities.
Solid-State Design:
Provides reliable level control without mechanical contacts.
Compact size and low maintenance requirements.
Additional Features:
LED indicators for relay status and power are mounted inside a clear Lexan casing.
Optional tamper-proof enclosure for secure operation.
UL and CSA certified for safety and reliability.
Applications:
Sump pumps and sewage ejectors
Chemical processing and storage
Food and beverage production
Boilers and steam generators
Oil and gas production
Water treatment and irrigation
Price and Availability:
Around USD 612.04.
Lead time may vary depending on the distributor.
Key Takeaways:
Versatile and reliable liquid level control in diverse applications.
Multiple control modes, adjustable settings, and sensor compatibility.
Compact, solid-state design for low maintenance and easy installation.
Rugged construction and certifications for industrial use.
Signs of faulty Liquid Level Relay 26NMB1A0A Warrick-Gems Sensors:
Level Control Issues:
Pumps or alarms activating unexpectedly: This could be due to faulty level detection by the sensor, incorrect settings, or internal relay malfunctions.
Pumps failing to activate at intended levels: This might indicate a faulty sensor connection, incorrect sensitivity settings, or relay issues.
Erratic or inconsistent level readings: This could be caused by a faulty sensor, loose connections, or internal component issues.
Relay or Output Problems:
Relays chattering or buzzing continuously: This suggests potential internal relay damage or wiring issues.
One or both relays failing to switch: This could point to individual relay failure or problems with the control circuitry.
Output voltage incorrect or fluctuating: This might indicate internal component failure or power supply issues.
Indicator and Power Issues:
LED indicators malfunctioning: Dim, flickering, or constantly lit LEDs could signify internal circuit problems.
Unit not powering on: This could be due to power supply issues, a faulty fuse, or internal component failure.
Tamper-proof enclosure showing signs of forced entry (if applicable): This could indicate unauthorized access or potential tampering with the control settings.
Additional Observations:
Unusual noises or vibrations from the unit: This might suggest internal component issues or loose connections.
Burning smell or smoke emanating from the unit: This is a serious sign and requires immediate shutdown and investigation.
Remember:
Always consult the manufacturer's instructions and troubleshooting guide for specific steps and safety precautions.
If you suspect a faulty 26NMB1A0A, immediately shut down the system and disconnect it from power.
Seek assistance from a qualified electrician or technician for diagnosis and repair.
