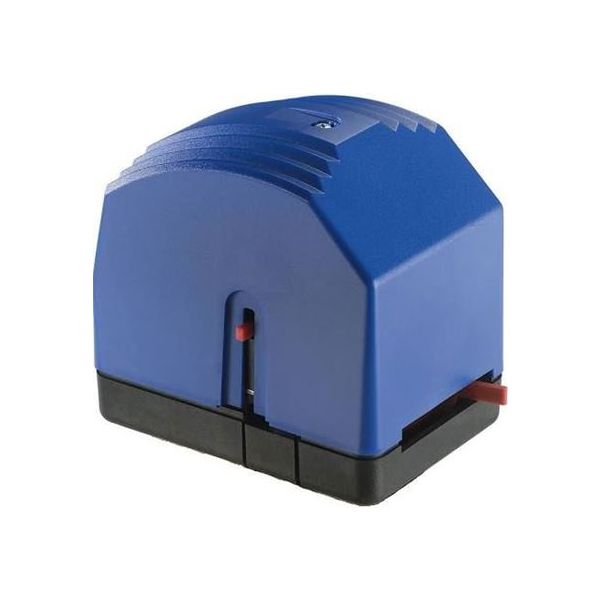

The Johnson Controls JP23A000 Electric Zone Valve Actuator is a versatile device which is used when there is need to control the flow of water in HVAC systems. It is an usually open (N/O) type of tiny device with a spring return action. When the switch is set then the water freely passes through the valve without being constricted or blocked. It becomes even more fascinating when one looks at control. The JP23A000 is a proportional control signal and can be connected with 0-10VDC or 4-20mA signal input. This means that a specific area of the HVAC system can be controlled with great accuracy regarding water flow, thus providing desired comfort levels and at the same time increasing efficiency.
The Jp23A000 Johnson Controls actuator, classified under the J Series Electric Zone Valves, stands out as a spring-return, two-position electric zone valve actuator featuring a synchronous motor. Specifically designed for HVAC applications, this component plays a crucial role in regulating the flow of saturated steam, hot water, and chilled water within coils and heat exchangers. This actuator exemplifies reliability and precision in its operation. Whether deployed in commercial or industrial settings, its efficiency ensures optimal control over temperature and fluid dynamics. The actuator's seamless integration into heating, ventilation, and air conditioning systems underscores its significance in maintaining environmental comfort and operational efficiency.
Key features:
Normally Open (N.O.): The valve remains open when de-energized, allowing for gravity flow or boiler protection.
Proportional control: The actuator can be modulated to provide precise control over the flow rate.
High close-off pressure: Suitable for demanding applications like high-rise buildings and high-pressure pumping systems.
Quick and simple actuator removal: Simplifies installation and service without requiring special tools or commissioning.
Interchangeable actuators: Allows field conversion from N.O. to normally closed (N.C.) operation without re-piping.
Bubble-tight shutoff: Ensures energy efficiency and accurate zone temperature control for improved comfort.
Choice of end connections: Provides increased versatility and replacement capability.
Signs of a Faulty Johnson Controls Acutator
Abnormal Noises:
Rattling or grinding sounds: These could indicate a worn-out motor or gear mechanism.
Hum or buzzing: This could signal electrical issues, such as a loose connection or failing capacitor.
Valve Position Issues:
Fails to open or close properly: The valve may not respond to control signals, suggesting a problem with the actuator motor or linkage.
Remains stuck in one position: This could be due to a mechanical jam or a seized motor.
Leakage:
Visible signs of fluid escaping: This could be caused by a worn seal or gasket, or a damaged valve body.
Irregular Operation:
Erratic or inconsistent control: The valve may open or close unexpectedly, indicating a faulty control circuit or sensor.
Slow or sluggish response: This could point to a weak motor or a problem with the power supply.
Electrical Problems:
Blown fuse or tripped circuit breaker: This suggests an electrical fault within the actuator or its wiring.
Burning smell: This could signal overheating or a short circuit.
