Lennox 20W14 22" 3-Blade Fan 1/2" Bore Counter Clock Wise
Special Price $97.55 Regular Price $112.18
In stock
SKU
20W14

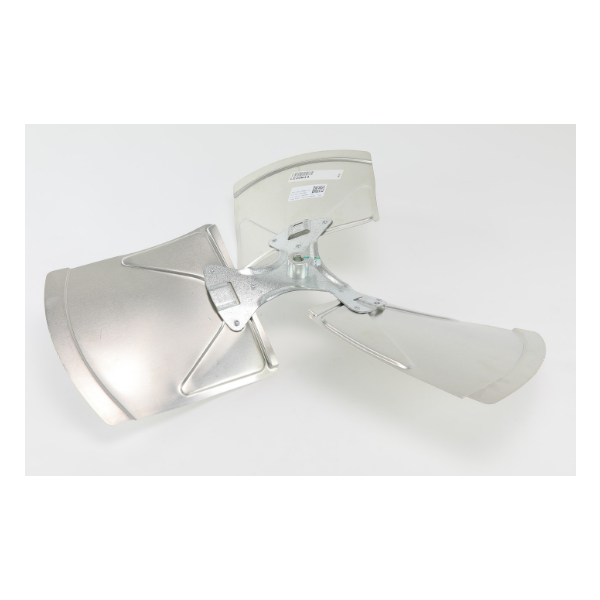

The Lennox 20W14 is a 22-inch, 3-blade condenser fan blade for Lennox HVAC equipment. It also cools the heat within a system, which is a vital role towards ensuring that a system runs optimally. The fan rotates counterclockwise the air flows in through the condenser coil area. The blade pitch of 27 degrees is designed to provide the better airflow. The riveted propeller is strong and can move air effectively due to the structure of the design. The Lennox 20W14 allows fresh air on to the hot condenser coils by driving its fan blade and thereby optimizing heat exchange and liberation of heat from the refrigerant.
Manufacturer:
Specifications
- Diameter: 22 Inch
- Bore Diameter: 1/2 Inch
- Measure: Unit
- Weight: 3.9lbs
- Pitch Degrees: 27 Deg
- Number of Fan Blades: 3
- Rotation: CCW Facing Discharge
- Hub: Opposite Discharge Side
- Hub Type: Fixed
- Type: Riveted Propeller Condenser Fan Blade
