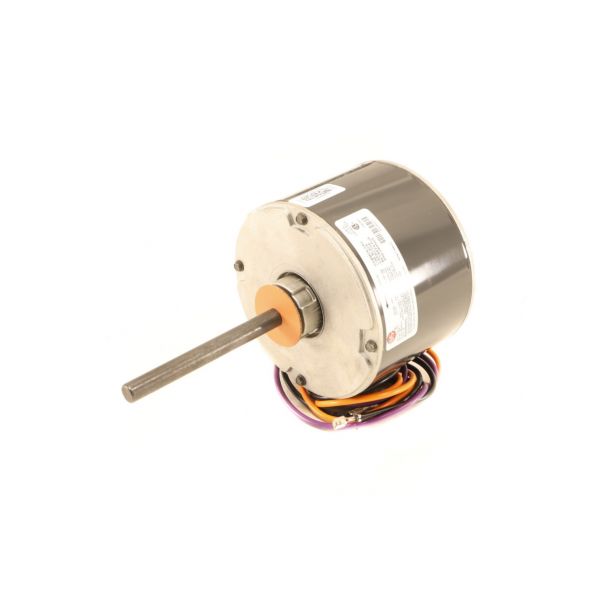

Lennox 65G60 Motor 208-230V 1/6HP 825RPM
Special Price $244.19 Regular Price $271.05
In stock
SKU
65G60
The Lennox 65G60 is a single-speed condenser fan motor made and intended for use in Lennox make of HVAC systems. It is an evaporative cooler blower that is used to direct air over the condenser coils, a vital operation in heat rejection. This 1/6 HP motor has a sleeve bearing and produces 825 RPM. It operates at 208-230 volts and it is recommended for use in a single-phase electrical supply system. A well-working motor means that the airflow is also proper, thus, the heat is dissipated efficiently, the efficiency is increased, and the energy bills may be reduced.
Manufacturer:
Specifications
- Measure: Units
- Horsepower: 1/6 HP
- AMPerage: 1.1A
- Type of Bearing: Sleeve
- Frequency: 60 Hz
- Number of Phases: 1 Phase
- Length of Shaft: 2.5 Inch
- Number of Speeds: 1 Speed
- Voltage: 208/230V
- NEMA Frame Size: 48
- Rotation: CCW from lead end
- Diameter of Shaft: 0.5 Inch
- Type of Motor: PSC
- RPM: 825 RPM
- Speeds: 1 Speed
- Frame Size: 48
- Position of Motor Mounting: Vertical
- Type Motor Mounting: Belly Band
- Shaft Size: 1/2 Inch x 2.5 Inch
- Capacitor Value: 5 MFD 370 VAC
- Rotation: CCWLE
- Type of Bearing: Sleeve
- Weight: 10.23lbs
