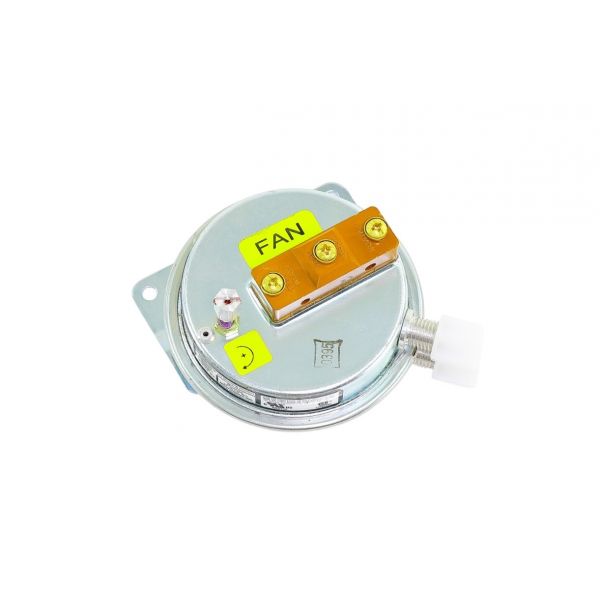

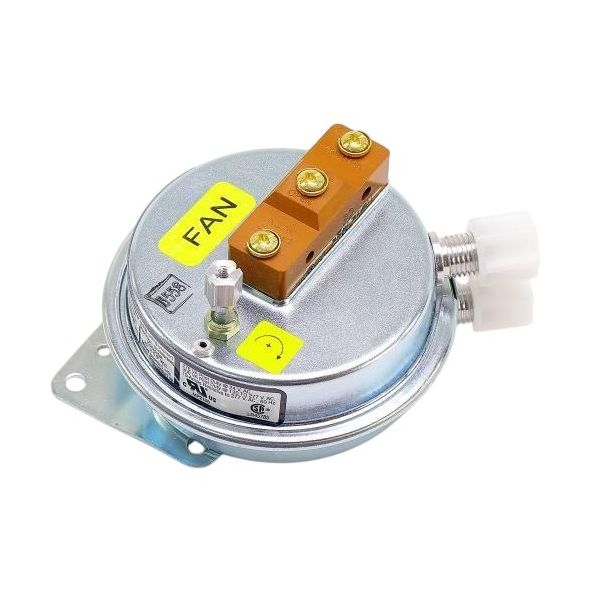

Fulton Boiler 2-30-000232 Fan Proving Switch

Rating:
5 5 9
9  Reviews Add Your Review
Special Price $184.55 Regular Price $212.23
In stock
SKU
2-30-000232

The Fulton Boiler Fan Proving Switch, Part 2-30-000232, is a key component meant to ensure the safe and efficient functioning of HVAC equipment and is specifically specialized for Fulton boilers. This switch is an important safety element that assures airflow before commencing the ignition sequence.  Working based on pressure differential, this senses the airflow produced by the boiler's fan and only then notifies the control system to start the ignition process. This switch helps reduce the possibility of possible problems like gas accumulation or overheating by halting the ignition in the absence of adequate airflow, improving both operational safety and equipment longevity. This dependable performance not only protects the boiler but also helps with energy efficiency and overall system performance.

Add to Wish List
Circulating Fan, HVAC Controls_Home
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/-/2-30-000232_1.jpg

Boiler operation depends on control components that monitor operating conditions before the system proceeds through its sequence. The Fulton Boiler 2-30-000232 Fan Proving Switch monitors the condition associated with fan operation and provides a switching response to the connected control circuit. This allows the boiler control system to receive the required fan-proving status during operation.

Fan Proving Switch Operation:
The switch responds to the condition associated with fan operation by changing its electrical state when the required condition is established. This switching response supplies the status signal used by the associated control circuit.

Switching Response and Control Interface:
The switch acts as an electrical interface between the fan-proving condition and the boiler's control circuit. Its changing switch state communicates whether the required fan condition has been established, allowing the control circuit to respond to that status.

Replacement Guidelines:
Replacement may be appropriate when the existing switch no longer changes state as required or develops a condition that prevents the expected switching response. For the Fulton Boiler 2-30-000232, replacement should be considered when the switch can no longer provide the required fan-proving status during operation.

Common Failure Symptoms:

  • The switch fails to change state when the required fan condition is established.
  • The switch remains in the same state when the fan condition changes.
  • Intermittent switching occurs during operation.
  • The switch provides inconsistent fan-proving status during operation.
  • The expected fan-proving status is not provided to the control sequence.

Equipment Compatibility:
The Fulton Boiler 2-30-000232 Fan Proving Switch should be selected for boiler applications requiring the corresponding fan-proving switch configuration. Before purchasing, confirm the existing component's part number, fan-proving configuration, and applicable boiler system requirements.

Technical Specifications:
Brand: Fulton Boiler
Part Number: 2-30-000232
Product Type: Fan Proving Switch

Reviews 9
Write Your Own Review
You're reviewing:Fulton Boiler 2-30-000232 Fan Proving Switch
Your Rating
Related Posts
  1. Replacing Furnace Blower Motors: DIY Tutorial
Product Questions (10)
Customer Questions
How often should I check or replace my Boiler Air Switch?

Regular maintenance checks, typically performed annually, should include inspecting the Boiler Air Switch. If it fails to function correctly, it should be replaced immediately.

Read More
Can I install a Boiler Air Switch myself?

Installation of a Boiler Air Switch should be carried out by a qualified technician. Don't compromise the safety and functionality of your heating system.

What are the signs that my Boiler Air Switch might be faulty?

Signs of a faulty Boiler Air Switch include frequent shutdowns, failure to ignite, or unusual noises during operation. If you notice any of these issues, it's essential to have the switch inspected and replaced.

What maintenance is required for the Fulton Boiler 2-30-000232 Fan Proving Switch?

Regularly inspect the switch for dust, corrosion, or loose wiring. Test the switch periodically to ensure it properly detects fan operation. Clean the surrounding area to prevent obstruction. Routine maintenance ensures safe boiler operation and prevents ignition issues.

What are common issues with the Fulton Boiler 2-30-000232 Fan Proving Switch?

  • Failure to detect fan operation.
  • Intermittent or inconsistent switching.
  • Corrosion or damage to terminals.
  • Loose or faulty wiring connections affecting performance.

What type of component is the Fulton Boiler 2-30-000232?

The Fulton Boiler 2-30-000232 is a fan proving switch used within a boiler fan-control circuit.

What condition does the 2-30-000232 respond to?

The switch responds to the condition associated with fan operation and changes its electrical state when the required condition is established.

How does the 2-30-000232 communicate with the control circuit?

Its switch-state change provides an electrical status signal to the associated boiler control circuit.

Where is the Fulton Boiler 2-30-000232 used?

The switch is used in the associated boiler fan-control circuit as part of the system's operating arrangement.

What should be checked before selecting the 2-30-000232?

Check the existing 2-30-000232 part number, fan-proving configuration, and applicable boiler system requirements against the original equipment documentation.

Installation Steps

Step1: Ensure the appliance powered off and fuel supply is shut.

Step2: Remove the access panel to locate the existing fan proving switch.

Step3: Disconnect all wiring carefully, labeling connections for accurate reinstallation.

Step4: Unscrew and remove the old switch from its mounting.

Step5: Install the new switch and secure it with screws.

Step6: Reconnect wiring according to labels and manufacturer diagram.

Step7: Replace the access panel and restore power and fuel supply.

Step8: Test the switch for proper operation, ensuring the fan operates safely.
