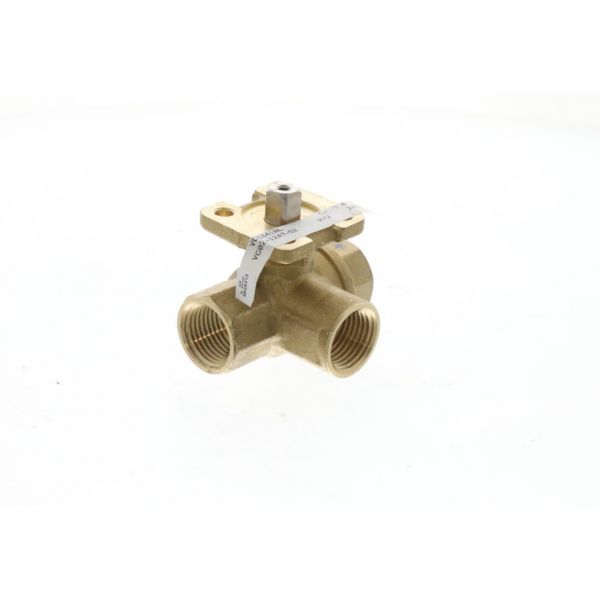

Johnson Controls VG1841AL 3-Way Ball Valve 1/2" 7.4Cv

Special Price $87.01 Regular Price $100.07
In stock
SKU
VG1841AL
The Johnson Controls VG1841AL is a three-way, 1/2-inch ball valve for the regulation of water or air in HVAC systems. It has a forged brass body for a pressure of 580 psig which makes it ideal for use in hydronic and pneumatic systems. Chrome-plated brass ball and stem assembly intended for installation in water systems that provide water at temperatures ranging from -5°F to 95°F (-5°C to 35°C) for both chilled and hot water systems. The three-way design of the valve enables it to control the flow direction and switch or blend the fluids in the system as required. It operates with the Cv number of 7.4, which means that it is designed to work with a certain amount of fluid.
Manufacturer:
https://www.partshnc.com/media/catalog/product/v/g/vg1841al.jpg

Specifications

  • Size: 1/2"
  • Weight: 0.85lbs
  • Cv Range: 7.4Cv
  • Type: Ball Valve
  • Connection: NPT
  • Pattern: 3-Way
  • Material: Brass
  • Actuator Type: Electric
Manufacturer Name: Johnson Controls
Product Number: VG1841AL
OEM Part Number: VG1841AL
Product Description: 1/2" 3Way 7.4Cv Ball Valve
Weight:0.85lbs/385.55g
