Conbraco Industries 12-206-08 2.5" Steam Relief Valve 15 PSI 3529 PPH

Conbraco Industries 12-206-08 Steam Relief

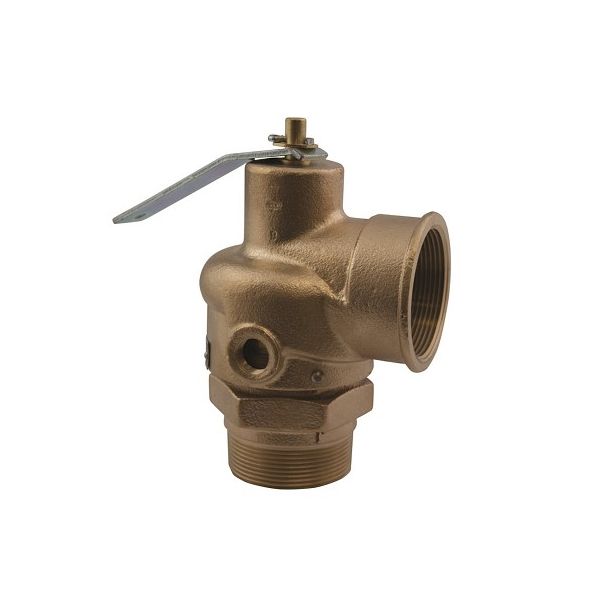

This 2.5" 15 steam relief valve from Conbraco Industries has an O-ring seat seal covered in PTFE. Its maximum capacity of 3,529 lbs/hr is intended for low-pressure steam boilers running at up to 15 psi. The trim is stainless steel, while the valve body is cast bronze. It features a 3/8" NPT side tap in addition to 2-1/2" MNPT inlet and output connections. A medium-capacity cast bronze safety relief valve, the Conbraco 12-206-08 is intended to guard against overpressure in medium-pressure steam boilers and other steam systems. It has ASME certification, a sturdy build, and dependable performance.

Key features:

Safety and Durability:

• ASME Section IV Certified: Meets strict safety standards for pressure relief valves in steam systems.
• Cast Bronze Body: Offers exceptional strength and durability in harsh steam environments.
• PTFE-Coated O-Ring Seat Seal: Ensures leak-proof sealing for reliable operation.
• Rust-proofed steel Spring: Resists corrosion and ensures consistent performance.

Performance and Capacity:

• Multiple Pressure Settings: Choose from various options (5-15 psi) to match your specific system requirements.
• Top-guided, High-Capacity Design: Enables consistent and accurate pressure relief even in demanding situations.
• Brass or Stainless Steel Nozzle: Ensures efficient and reliable discharge of relieved steam.

Convenience and Functionality:

• 3/8" NPT Side Tapping: Allows for easy connection of a drain line.
• Easy-to-Read Pressure Setting Stamp: Identifies the valve's designated pressure limit.
• Durable Handle Assembly: Provides convenient operation and control.

Convenience and User-Friendliness:

• Easy-to-Read Pressure Setting Stamp: Clear identification of the valve's designated pressure limit for safety and reference.
• Durable Handle Assembly: Provides convenient operation and control.
• Standard NPT Connections: Simplifies installation process.

Benefits:

• Enhanced Safety: Protects valuable equipment and personnel from overpressure situations, maintaining system integrity and operator safety.
• Reliable Performance: Delivers consistent and accurate pressure relief at the designated setting, preventing potential damage.
• Durable Construction: Built to withstand demanding steam environments with robust materials and corrosion-resistant features.
• High Capacity: successfully manages modest steam flow volumes, even under conditions of high pressure.
• Versatile Pressure Options: Available in various pressure settings to cater to diverse system requirements.
• Easy Installation and Maintenance: Standard NPT connections and accessible features simplify installation and maintenance processes.

Additional Features:

• Available with brass or stainless steel nozzles depending on the model.
• A wide range of pressure settings cater to diverse system requirements.
• Standard NPT connections simplify installation and maintenance.

Signs of faulty Steam Relief 12-206-08 Conbraco Industries:

Leaks:

• External leaks: Visible steam or water leaking from the valve body, bonnet, or connections. This could indicate a damaged seal, loose packing, or a cracked body.
• Internal leaks: Steam leaking past the valve seat, even when the valve is closed. This can lead to reduced boiler efficiency and safety concerns.

Pressure Issues:

• Frequent pressure relief: If the valve opens and releases steam more often than usual, it might be a sign of overpressure in your system or a problem with the valve itself, such as a weak spring or incorrect setting.
• Failure to relieve pressure: If the valve doesn't open at the designated pressure setting, it's a serious safety concern and indicates a malfunction that needs immediate attention.

Unusual noises:

• Chattering: The valve opens and closes rapidly, causing a chattering sound. This could indicate worn or damaged internal components.
• Sticking: When the valve is closed or open, it remains stuck. This could be due to corrosion, debris buildup, or a damaged spring.

Performance issues:

• Failing to open under pressure: The valve does not open when the boiler pressure reaches the set point. This is a critical safety failure and needs immediate attention.
• Not relieving enough pressure: The valve not releasing enough pressure to prevent the boiler from exceeding its safe operating pressure. This could be due to a partially blocked valve or improper sizing.

Other warning signs:

• Visible damage: Cracks, dents, or corrosion on the valve body or trim.
• Excessive vibration: The valve vibrates excessively during operation. This could indicate internal damage or improper installation.
• Failure to meet safety certifications: If the valve has not been properly maintained or serviced, it may no longer meet ASME, UL, or CSA safety standards.

Additional Considerations:

• Age of the valve: While the Steam Relief 12-206-08 is built to last, safety valves have a lifespan, and replacing them proactively based on manufacturer recommendations is crucial.
• Regular maintenance: Regular inspection and maintenance as per the manufacturer's guidelines help identify minor issues before they turn into significant problems.

Remember: If you experience any of these symptoms, do not attempt to repair the valve yourself. Contact a qualified HVAC technician or steam system professional immediately to diagnose the problem and ensure the safety of your system and personnel. They can advise on repair or replacement depending on the severity of the issue.
