The Nidec-US Motors 6653 is an Electronically Commutated Motor (ECM) designed to deliver superior efficiency and control in HVAC equipment compared to traditional AC motors. Unlike AC motors that use fixed speeds, the 6653 utilizes a permanent magnet rotor and variable frequency drive. This allows the motor speed to be precisely adjusted based on heating or cooling needs. In HVAC systems, the 6653 ECM motor is used to drive blower fans. By precisely controlling the fan speed, the system can adjust airflow to match the demand. This translates to significant energy savings compared to fixed-speed AC motors, as less energy is wasted on unnecessary airflow. The 6653 is a versatile motor with a wide voltage range of 115V/208-230V, making it compatible with various electrical configurations. It delivers a horsepower of 1 horsepower (HP) and operates at a speed of 1075 RPM. Additionally, it can function at both 50Hz and 60Hz frequencies, further enhancing its adaptability.

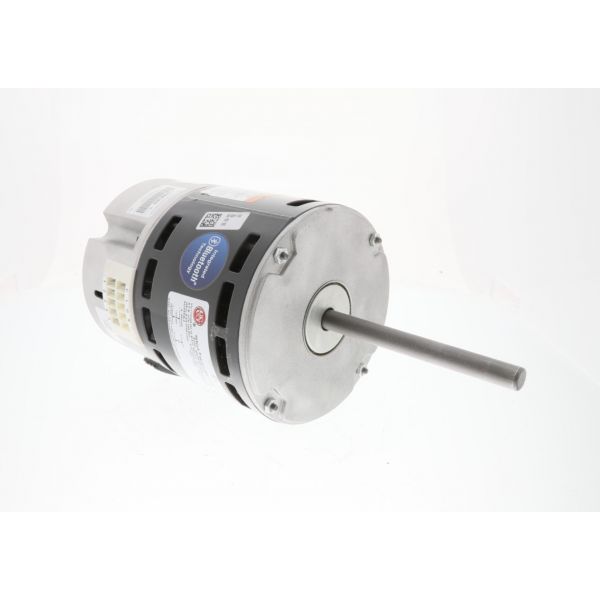

Electronically commutated motor 6653 Nidec-Us Motors
The Nidec-US Motors 6653 is a high-performance, energy-efficient Electronically Commutated Motor (ECM) designed for various HVAC applications. It's known for its reliability, quiet operation, and improved system efficiency. It is a popular choice for many applications, particularly in the HVACR industry. It boasts a powerful 1-horsepower rating, making it ideal for tasks requiring significant torque and speed. The Nidec-US Motors Part #6653 is a 1 HP electronically commutated motor (ECM) that is widely used in HVAC applications. It is a direct replacement for the obsolete Trane MOT12702 and MOT12283 motors. The 6653 is a 48Y frame motor with a base speed of 1075 RPM and a maximum speed of 1200 RPM. It is also dual voltage, meaning it can be operated on either 115V or 208-230V power.
Key features:
Performance:
1 HP output: Drives moderate-sized HVAC equipment and industrial machinery.
1150 RPM (single-phase) or 1725 RPM (three-phase) speed: Efficient operation for various applications.
Single-phase 115V/208-230V or three-phase 200-230V/460V compatibility: Adapts to different power supply configurations.
Improved energy efficiency with Nidec technology: Potentially lowers operating costs.
Direct drive capability: Simplifies installation and eliminates belts/pulleys in some applications.
Technical Specifications:
Standard NEMA frame 56: Fits existing equipment and facilitates easy replacement.
High-temperature resistant Class B or F insulation: Suitable for demanding environments.
Continuous duty cycle: Operates uninterrupted for extended periods.
Enhanced durability: Optional sealed bearings extend lifespan in harsh environments.
Applications:
Versatility: Suitable for various HVAC equipment like blower motors, condenser fan motors, evaporator fan motors, and pump motors.
Beyond HVAC: Applicable in other industrial and commercial settings requiring a 1 HP single-phase or three-phase motor.
Additional Features:
Built-in thermal overload protection: This prolongs the motor's life by preventing overheating and burning out.
Ball bearings: These ensure smooth and quiet operation, reducing noise and vibration.
TEFC (Totally Enclosed Fan-cooled) design: This protects the motor from dust and moisture, making it suitable for harsh environments.
CSA certified: This certification ensures that the motor meets safety and reliability standards.
Easy to install and maintain: You'll save time and money with the motor's easy installation and maintenance design.
Compact and lightweight design: This makes it easy to integrate the motor into tight spaces.
Optional variable speed control: This allows you to adjust the motor's speed for precise airflow management, improving system efficiency.
Low vibration: This minimizes noise and discomfort, making the motor ideal for use in residential and commercial settings.
Long service life: With proper care and maintenance, the Nidec-US Motors Part #6653 can provide years of reliable service.
Meets or exceeds all relevant industry standards: You can be confident that the motor is built to high-quality standards.
Remember:
Depending on the model, different features and specifications apply (single-phase or three-phase).
For comprehensive details and compatibility with the application you wish to use, refer to the manufacturer's documentation.
Signs of faulty Nidec-Us Motors 6653 electronically commutated motor:
Performance Issues:
Reduced airflow or water flow: The equipment driven by the motor may not perform as expected, with decreased air circulation in HVAC systems or lower water pressure in pumps.
Overheating: The motor itself may feel hot to the touch, indicating internal issues or overload.
Unusual noises: Loud humming, grinding, or knocking sounds coming from the motor can signal worn bearings, misalignment, or internal damage.
Vibrations: Uneven loads during operation may be the result of worn components, unbalance, or incorrect mounting.
Burning smell: A burning smell emanating from the motor could indicate electrical malfunction or overheating, requiring immediate attention.
Operational Issues:
Frequent starting and stopping: The motor may cycle on and off more frequently than usual, suggesting potential problems with starting components or the load it's driving.
Loss of power: The motor may completely stop functioning, causing equipment failure and requiring immediate troubleshooting.
Electrical Issues:
Tripped circuit breaker: Frequent tripping of the circuit breaker connected to the motor could indicate electrical overload or short circuits.
Sparks or arcing: Visible sparks or arcing around the motor connections suggest electrical problems and potential safety hazards.
Additional Observations:
Increased energy consumption: Higher electricity bills due to the motor running inefficiently or needing to start more frequently.
Reduced system performance: Lower cooling or heating capacity in HVAC systems, or decreased water pressure in pump applications.
Remember:
Early detection of these signs can help prevent extensive damage and potentially costly repairs.
If you suspect a problem with your Electronically commutated motor 6653, it's crucial to consult a qualified electrician or HVAC technician for proper diagnosis and repair. Do not attempt to fix the motor yourself due to potential electrical hazards.
Here are some additional tips for identifying a faulty motor:
Monitor system performance: Track airflow, water flow, temperatures, noise levels, and vibrations to identify any changes.
Perform regular maintenance: Regularly clean ventilation systems, check for loose connections, and listen for unusual noises.
Consult the manufacturer's manual: The manual may provide specific troubleshooting tips for your motor and equipment.
