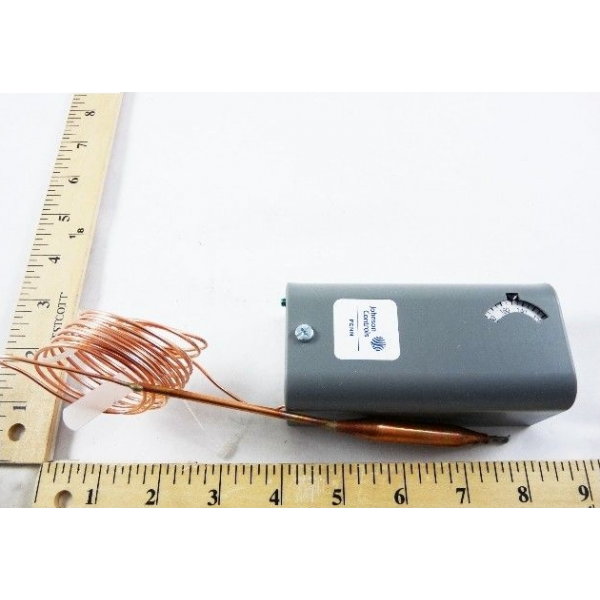

Johnson Controls A19ADC-42 Temperature Control 100 to 240°F W/6" Capillary

Special Price $194.69 Regular Price $223.89
Out of stock
SKU
A19ADC-42
The Johnson Controls A19ADC-42 is a temperature management unit designed to manage heating ventilation, and air conditioning systems. It can maintain temperature within a scale of 100°F to 240°F making it ideal for many heating and cooling processes. This remote bulb control comes with a 6-foot capillary tube with a sensor at the end of it. This sensor measures the temperature from a distance and sends a signal to a central control that can either turn the HVAC on or off depending on the temperature it wants to maintain. It is a single-stage control, which means that it switches the HVAC system to either high or low depending on the amount of difference between the set temperature and the sensed temperature.
https://www.partshnc.com/media/catalog/product/a/1/a19adc-42_partshnc.jpg

Specifications

  • Temperature: 100°F/240°F
  • Weight: 1.01lbs
  • Type: Remote Bulb
  • Stages: Single
  • Differential Type: Adjustable
  • Size: 6"

PRODUCT OVERVIEW:
Regulates temperature by controlling an electrical circuit in response to sensed temperature changes. The Johnson Controls A19ADC-42 Temperature Control is an OEM temperature-control component designed for compatible equipment applications. It features an adjustable temperature range of 100°F–240°F and a 6-inch capillary sensing element for temperature monitoring.

TEMPERATURE SENSING AND INTERNAL SWITCHING:
The capillary sensing element responds to temperature changes and transmits the resulting pressure change to the control mechanism. When the sensed temperature reaches the selected setting, the internal switching mechanism changes the electrical contact state. This action opens or closes the control circuit according to the thermostat's switching configuration.

EQUIPMENT CONTROL INTEGRATION:
The temperature control connects to a compatible equipment circuit so its switching action can regulate an associated operation. Depending on the system design, the changed contact state can initiate or interrupt a heating, cooling, or other temperature-dependent function. The control provides the switching input, the connected equipment performs the resulting operation.

REPLACEMENT GUIDELINES:
The Johnson Controls A19ADC-42 Temperature Control may require replacement when the existing unit is physically damaged or its essential functions no longer operate as intended. Replacement may be appropriate when temperature sensing or electrical switching can no longer be performed reliably.

COMMON FAILURE SYMPTOMS:

  • Equipment does not respond when the selected temperature is reached.
  • Connected heating or cooling functions operate inconsistently.
  • Temperature control does not maintain the intended operating temperature.
  • Electrical contacts fail to switch as expected.
  • Capillary tubing shows visible damage.
  • Temperature settings produce inconsistent control responses.

EQUIPMENT COMPATIBILITY:
The Johnson Controls A19ADC-42 Temperature Control is an OEM replacement component intended for compatible equipment requiring an A19ADC-42 temperature control. Before ordering, verify the existing control's part number, temperature range, capillary configuration, electrical contact requirements, and installation arrangement. Specific compatible equipment model numbers have not been confirmed.

TECHNICAL SPECIFICATIONS:
Brand: Johnson Controls
Part Number: A19ADC-42
Product Type: Temperature Control
Temperature Range: 100°F–240°F
Capillary Length: 6 inches
