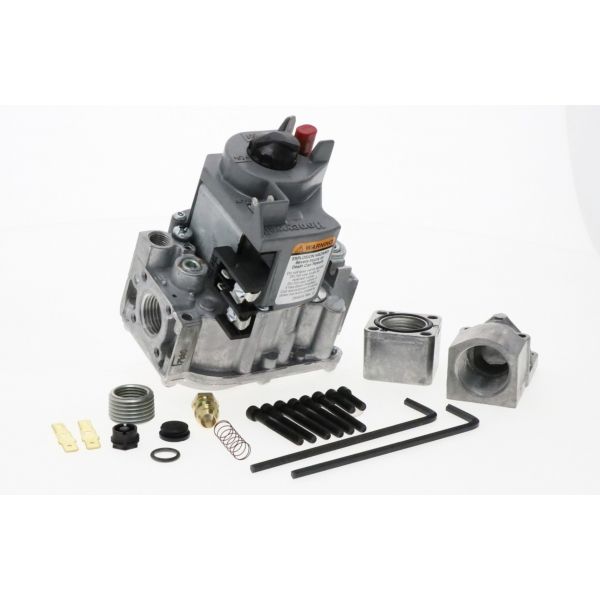

Resideo VR8200A2744 Single Stage Standing Pilot Valve 1/2" 24V 130CFH
Special Price $144.98 Regular Price $166.73
In stock
SKU
VR8200A2744
The Resideo VR8200A2744 is a gas control valve designed to be used in single-stage heating applications. It uses a standing pilot ignition method for the purpose of flame onset. This valve is compatible with natural gas and liquid propane with the help of the given conversion set. It employs an ordinary regulator to ensure a steady supply of the gas and operates on a 24 volt electrical supply system. The valve is designed for heating systems with natural gas input from 20,000 to 200,000 BTU/h. It has a small size with straight-through valve body to make installation easier. This valve is used in many occasions and mostly in furnaces, boilers and all other methods of heating that use direct gas.
Manufacturer:
Specifications
- Type: Standing Pilot Valve
- Application: Single Stage
- Ignition Type: Standing Pilot
- Type of Fuel: Natural Gas, LP with included conversion kit
- Regulator: Standard
- Capacity Range: 20,000-200,000 BTU/h Natural Gas
- Voltage: 24 VAC
- Inlet/Outlet Connection Size: 1/2"
- Regulation Type: Standard Opening
- Pressure Rating: 1/2 PSI
- Product Features: Lite-Rite (OFF-PILOT-ON) lighting sequence
- Valve Body Pattern: Straight Through
- Temperature Range: 0°F to 175°F
- Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International- 112395, Australian Gas Association 4752
- Color: Black, Gray
- Frequency: 60 Hz
- Pilot Gas Outlet: Compression Fitting for 1/4" OD Tubing
- Height: 5.38"
- Width: 4.06"
