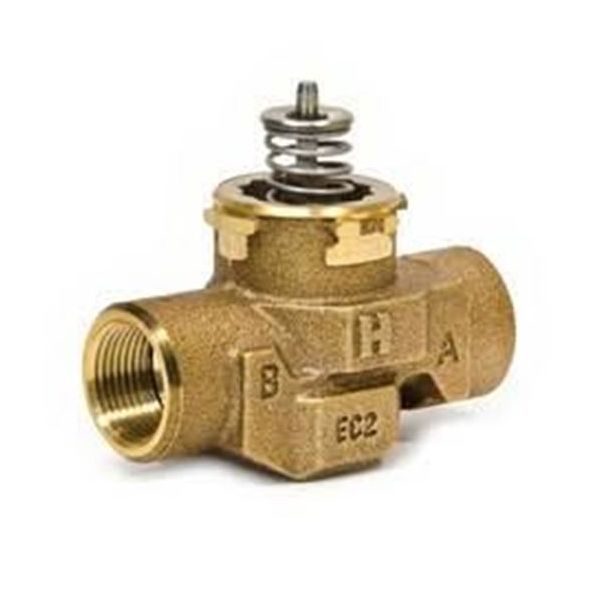

Resideo VCZBD3100 2-Way Valve Assembly 8Cv 1-1/14" NPT Linear
Special Price $154.64 Regular Price $177.83
In stock
SKU
VCZBD3100
The Resideo VCZBD3100 is a 2-way valve assembly with a 1-1/4" NPT connection for fine control in HVAC applications. It has a flow coefficient of 8.0 Cv that is used to regulate the flow of water in heating and cooling systems. The body of the valve is cast bronze while the valve stem is made of stainless steel to ensure that the valve serves the user for a long time at high pressure of up to 300 PSI. It has operating temperatures of between 32°F and 150°F making it appropriate for most residential and commercial HVAC applications.
Manufacturer:
Specifications
- Type: Valve Assembly
- Cartridge Material: Ryton and Noryl Plastic
- Approvals and Standards: CSA Certified
- Temperature Range: 32°F to 150°F
- Connection Type: Female: NPT
- Flow Coefficient: 8.0Cv
- Operating Pressure: 300 PSI
- Seal Material: EPDM Rubber
- Pressure Rating: 300 PSI
- Body Material: Bronze
- Seat Material: EPDM O-ring seals on Noryl piston
- Stem Material: Stainless Steel
