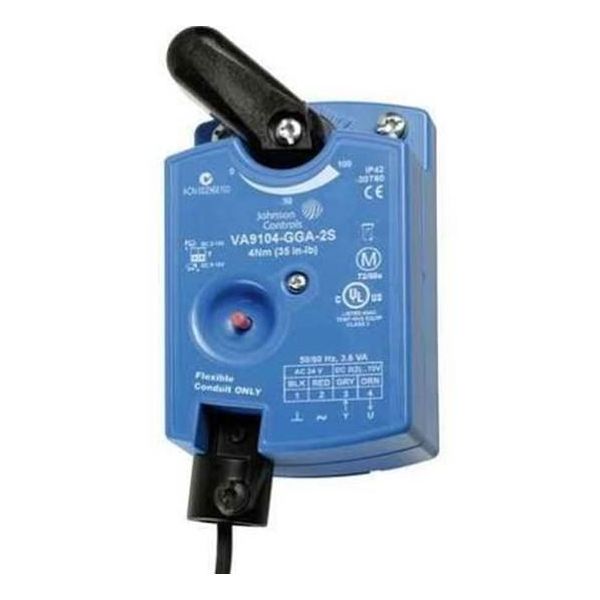

Johnson Controls VA9104-GGA-2S Electric Valve Actuator NSR W/500 Ohm Resistor 24V 0-10V/4-20mA

Rating:
5 5 1
1  Review Add Your Review
Special Price $192.35 Regular Price $221.20
In stock
SKU
VA9104-GGA-2S
The Johnson Controls VA9104-GGA-2S is a top-of-the-range electronic actuator that is tailored to offer a high degree of control in HVAC systems. This has an output signal that can be configured to either 0-10V or 4-20mA could be easily interfaced with many control systems and is powered by 24V. To achieve the best performance of the system, the included 500-ohm resistor serves to enhance the signal quality and as feedback. This actuator is reliable and does not have any ill effects on any sort of environment since it is made of stainless steel. Since it can be coupled with a damper or a valve to control airflow adequately, it is best suited for application in modulating dampers and valves since this will improve the quality of indoor air and energy.
Add to Wish List
Manufacturer:

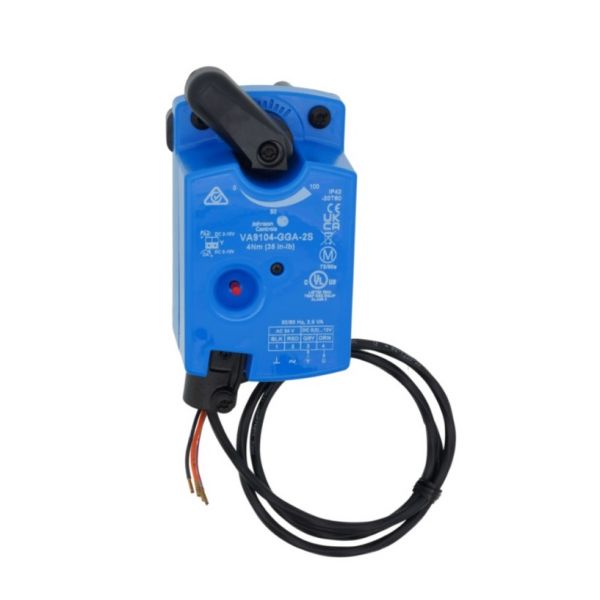

https://www.partshnc.com/media/catalog/product/v/a/va9104-gga-2s_1.jpg

Specifications

  • Type: Electronic Actuator
  • Material: Stainless Steel
  • Voltage: 24V
  • Resistance: 500 Ohm
  • Weight: 1.85lbs
Manufacturer Name: Johnson Controls
Product Number: VA9104-GGA-2S
OEM Part Number: VA9104-GGA-2S
Product Description: 24V 0-10V/4-20Ma W/500Ohm Res
Weight:1.85lbs/839.15g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:Johnson Controls VA9104-GGA-2S Electric Valve Actuator NSR W/500 Ohm Resistor 24V 0-10V/4-20mA
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Johnson Controls VA9104-GGA-2S Electric Valve Actuator?

Regularly inspect the actuator for proper operation and ensure electrical connections are secure and free from corrosion. Keep the unit clean and free of dust or debris. Periodically test movement and response to control signals. Always disconnect power before servicing for safety.

What are common issues with the Johnson Controls VA9104-GGA-2S Electric Valve Actuator?

  • Failure to respond to control signals.
  • Erratic or slow actuator movement.
  • Electrical connection faults or short circuits.
  • Overheating during operation.
  • Gear wear or internal mechanical resistance.

Installation Steps

Step 1: Isolate power supply and depressurize the valve system.

Step 2: Verify actuator compatibility and valve stem position, confirm voltage rating before installation.

Step 3: Mount actuator onto valve bracket, align coupling carefully, ensure correct orientation.

Step 4: Secure mounting screws and ensure tight mechanical fit, tighten to manufacturer torque specification.

Step 5: Connect wiring per manufacturer diagram, follow wiring diagram, ensure proper insulation and isolate control circuit.

Step 6: Restore power, test operation, check smooth movement and leaks, verify calibration and safety checks.
