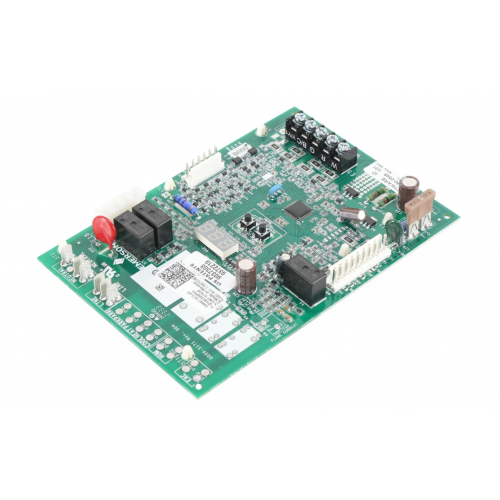

The main control board printed circuit board for HVAC systems is the Trane BRD5765. This board, which functions as the HVAC system's central control unit, supervises and plans the operation of its many parts. The BRD5765 a printed circuit board that is installed in air conditioners, heat pumps, and furnaces, functions by taking in signals from sensors and thermostats, processing the information, and then issuing commands to devices that control things like compressors, motors, and valves. This control board makes sure that HVAC equipment runs efficiently by controlling system parameters including temperature, ventilation, and humidity. Better system performance, more energy efficiency, and fewer maintenance requirements are a few benefits of the Trane BRD5765 Printed Circuit Boards which eventually translate into increased comfort, lower operating costs, and an extended HVAC system lifespan.
Manufacturer Name:Trane Product Number: BRD5765 OEM Part Number: BRD5765 Product Description: The PCB Main Control Board BRD5765 for an HVAC system is the central intelligence behind climate control in both residential and commercial settings. Its design revolves around creating the ideal indoor environment while optimizing energy efficiency. The heart of the board is a microcontroller or processor, which manages the overall operation of the HVAC system. This control board is typically equipped with a powerful microcontroller or processor responsible for processing data from various sensors and making real-time decisions. The control board's I/O ports connect to essential components such as the thermostat, allowing users to set temperature preferences and operating modes. Relay outputs enable the control of HVAC components, including compressors, fans, and dampers. Diagnostic features and error logs assist technicians in identifying and resolving issues swiftly. Communication ports may also be present for integration into larger building management systems. The PCB Main Control Board for an HVAC system is a sophisticated controller that manages temperature, humidity, and airflow to provide comfort and energy efficiency. Its features are tailored to the unique requirements of HVAC systems, ensuring precise control, safety, and reliability. The HVAC PCB Main Control Board BRD5765 is the core controller of heating and cooling systems. It monitors environmental data, manages components, and often offers user-friendly interfaces.
Weight:0.32lbs/145.15g
Choose the best HVAC equipment parts and supplies from PartsHnC!
How to install an expansion valve for refrigeration?
Thermostatic expansion valves are an integral part of your refrigeration unit. They are responsible for ensuring the right dosage of refrigerant is entering the cooling coil to ensure maximum efficiency in the air conditioning of the system.
These special expansion valves come with a temperature sensor that is mounted at the end of the evaporator coil. They incorporate signals from this sensor to maintain the required temperature of the HVAC system. The thermostatic expansion valve works like a precision device that can regulate the measurements of the liquid refrigerant that flows into the evaporator of your system. This regulation in the flow of the refrigerant is essential to prevent the reverse flow of the refrigerant into the compressor of your system.
Through this mechanism, the thermostatic expansion valve successfully separates the high and low pressure sides of the refrigeration/air conditioning system. The liquid refrigerant enters the expansion ...
What is a PCB in an HVAC system?
Printed Circuit Board, in an HVAC system is an essential component that controls and manages various functions of the system, such as temperature regulation, fan speed, and safety features.
Are PCBs for HVAC systems universal, or do they vary by model?
PCBs are not universal; they vary by model of HVAC systems. It's crucial to ensure that you purchase a PCB that is compatible with your specific HVAC unit.
Are there any maintenance tips to prolong the life of the PCB in my HVAC system?
Keeping your HVAC system clean and having regular maintenance checks can help extend the life of the PCB. Also, voltage stabilizers can protect it from power surges
