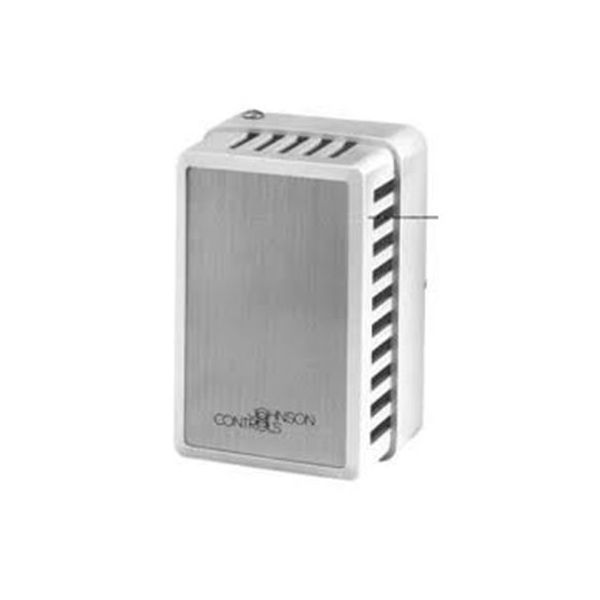

Johnson Controls T-5002-201 Room Temperature Transmitter 50°F-100°F

Special Price $488.28 Regular Price $541.99
Out of stock
SKU
T-5002-201

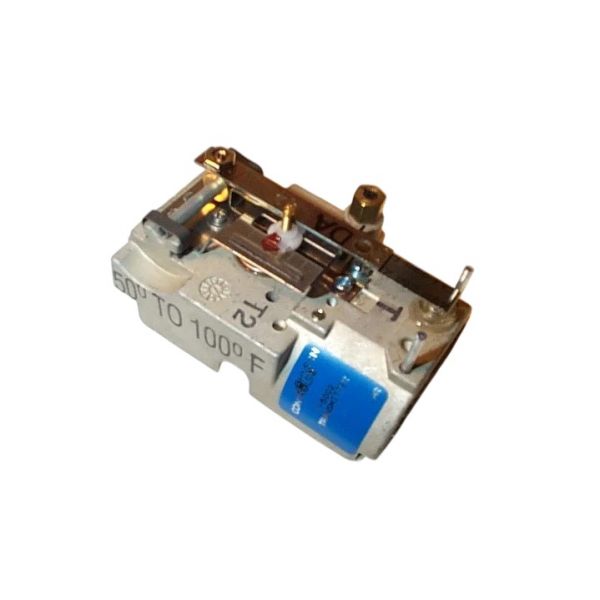

The Johnson Controls T-5002-201 is a room-temperature transmitter that measures and transmits air temperature within a particular range. It directly measures space temperature with a remote sensor and translates this into a proportional air pressure signal of 3-15 PSI. This signal is then sent to other compatible HVAC apparatus for the automatic regulation of heating and cooling. Generally mounted on the wall or in the room, It works through a direct-acting mechanism within a certain range. It directly measures space temperature with a remote sensor and then produces an equivalent air pressure signal of 3-15 PSI. This signal is then sent to other compatible HVAC equipment to give automatic control of heating and cooling equipment.
https://www.partshnc.com/media/catalog/product/t/-/t-5002-201.jpg

Specifications

  • Temperature: 50°F-100°F
  • Weight: 0.38lbs
  • Type: Direct Acting
  • Pressure Range: 3-15 PSI

PRODUCT OVERVIEW:
Maintaining precise environmental control in commercial pneumatic HVAC systems relies on accurate temperature sensing. The Johnson Controls T-5002-201 Room Temperature Transmitter is a genuine OEM pneumatic instrument designed to measure space temperatures between 50°F and 100°F. Operating with direct-acting control, it converts ambient thermal changes into a proportional pneumatic air signal for receiver-controllers and actuators.

OPERATIONAL CONTROL PROCESS:
Powered by a 20 psig clean air supply, this transmitter modulates branch line pressure as space temperatures shift. Its internal liquid-filled sensing element expands and contracts with ambient thermal changes, actuating a nozzle-flapper mechanism to vary air exhaust and produce a proportional output pressure of 3 to 15 psig. The unit operates at an air consumption rate of 20 SCIM and delivers an output flow capacity of 400 SCIM to rapidly position downstream controls.

REPLACEMENT GUIDELINES:
Replace the Johnson Controls T-5002-201 when the device fails to alter branch pressure, suffers internal air leaks, or displays physical element damage. Always depressurize and bleed pneumatic supply lines prior to servicing. Installation should be performed by a qualified HVAC technician to ensure clean, dry instrument air connections and proper line calibration.

COMMON FAILURE SYMPTOMS:

  • The output pressure stays fixed at 3 psig or 15 psig regardless of space temperature shifts.
  • Connected pneumatic valves or dampers fail to adjust due to incorrect signal pressures.
  • Excessive continuous air venting occurs from clogged internal orifices or worn diaphragms.
  • The transmitter responds sluggishly to rapid room temperature changes.

EQUIPMENT COMPATIBILITY:
The T-5002-201 pneumatic room temperature transmitter is designed for commercial pneumatic control systems, receiver-controllers, and pneumatic receiver-gauges calibrated for a 3 to 15 psig signal input. Always verify your equipment model number, system operating pressure, and schematic specifications against official manufacturer documentation prior to purchase to confirm component compatibility.

TECHNICAL SPECIFICATIONS:
Brand: Johnson Controls
Part Number: T-5002-201
Product Type: Room Temperature Transmitter
Application: Space Temperature Sensing
Action Type: Direct Acting
Temperature Range: 50°F to 100°F

Write Your Own Review
You're reviewing:Johnson Controls T-5002-201 Room Temperature Transmitter 50°F-100°F
Your Rating
Customer Questions
What is the main function of the Johnson Controls T-5002-201 transmitter?

The T-5002-201 measures room temperature and translates it into a 3 to 15 psig pneumatic control signal for HVAC actuators and controllers.

How does direct-acting operation work on this transmitter?

In a direct-acting configuration, an increase in space temperature causes a proportional increase in output air pressure across the 3 to 15 psig range.

Does replacing this transmitter require a licensed technician?

Yes, replacement should be conducted by a qualified HVAC technician familiar with pneumatic calibration and clean air supply requirements.

What causes a pneumatic temperature transmitter to fail?

Failures are commonly caused by oil or moisture contamination in the compressed air supply, clogged internal nozzles, or physical wear of internal diaphragms.

How can I verify if the T-5002-201 is compatible with my system?

Check your original control schematics to confirm a 50°F–100°F temperature scale, a 20 psig air supply requirement, and a 3–15 psig output range.
