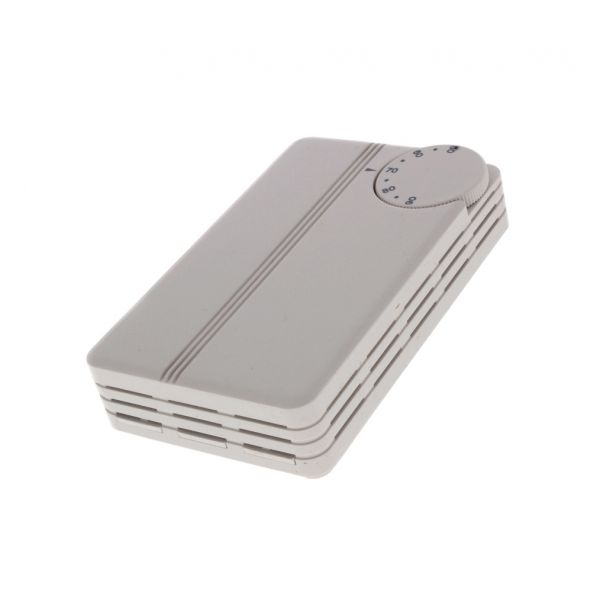

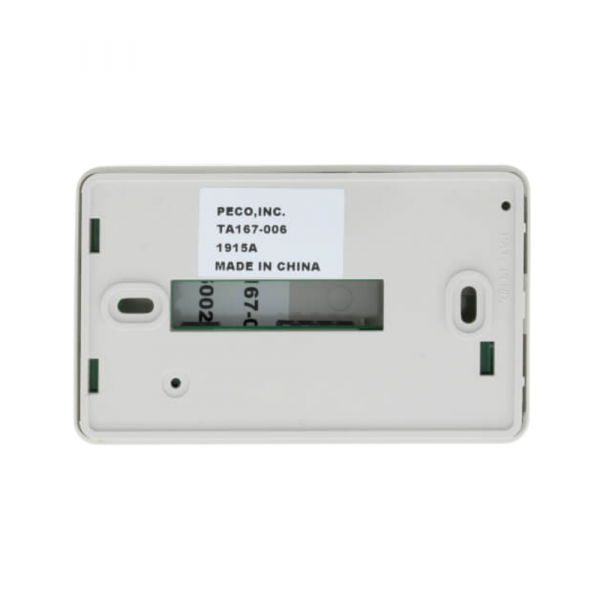

Peco Controls TA167-006 Electronic Thermostat Proportional Control 0-10 VDC
Specifications
- Type: Proportional Control
- Voltage: 0-10 VDC
Loyalty ProgramProduct Overview:
Maintaining consistent indoor temperatures in HVAC systems requires electronic controls that communicate changing temperature demands to connected equipment. The Peco Controls TA167-006 Electronic Thermostat Control provides proportional temperature regulation through a 0–10 VDC output, using a variable analog voltage signal to communicate heating and cooling demands to control devices. this thermostat supports proportional temperature control applications. Its primary role is to communicate changing heating or cooling demands to connected equipment through a variable 0–10 VDC output.
Proportional Control Operation:
Regulates HVAC temperature by translating the difference between the room temperature and the selected setpoint into a proportional control signal. This signal allows modulating valves and dampers to adjust their operation according to the thermostat's demand rather than depending entirely on simple on/off commands. The thermostat therefore serves as the temperature-sensing and demand-control interface between the occupied space and the connected equipment.
Automatic Changeover Control:
Serves as the control interface for systems requiring both heating and cooling operation. Its automatic-changeover function supports the transition between heating and cooling demands according to the thermostat's control configuration. During operation, it communicates the required proportional demand to connected equipment, allowing the respective heating or cooling devices to respond to changing room temperature conditions.
Replacement Guidelines:
Replacement of the Peco Controls TA167-006 may be necessary when the thermostat fails to regulate room temperature accurately, produces an inconsistent 0–10 VDC output, becomes unresponsive to temperature adjustments, or fails to support automatic heating and cooling changeover. A qualified HVAC technician should verify the 24 VAC power supply, examine the terminal connections, and check the control wiring before installing the replacement.
Common Failure Symptoms:
Equipment Compatibility:
The Peco Controls TA167-006 is intended for HVAC heating and cooling applications that use compatible 0–10 VDC proportional control devices. Its automatic-changeover configuration is relevant to systems designed for proportional temperature regulation through connected modulating equipment. For sourcing a Peco Controls OEM replacement, the original part number provides an important product identification reference. Verify the original part number and manufacturer documentation before ordering.
Technical Specifications:
Brand: Peco Controls
Part Number: TA167-006
Product Type: Electronic Proportional Thermostat
Control Output: 0–10 VDC
Step 1: Turn off and isolate power to the HVAC system.
Step 2: Mount the thermostat securely on a suitable wall or panel.
Step 3: Connect control wires to the correct terminals, ensuring polarity.
Step 4: Wire power supply according to manufacturer's diagram.
Step 5: Configure proportional control settings and calibration.
Step 6: Restore power and test output signal operation.
