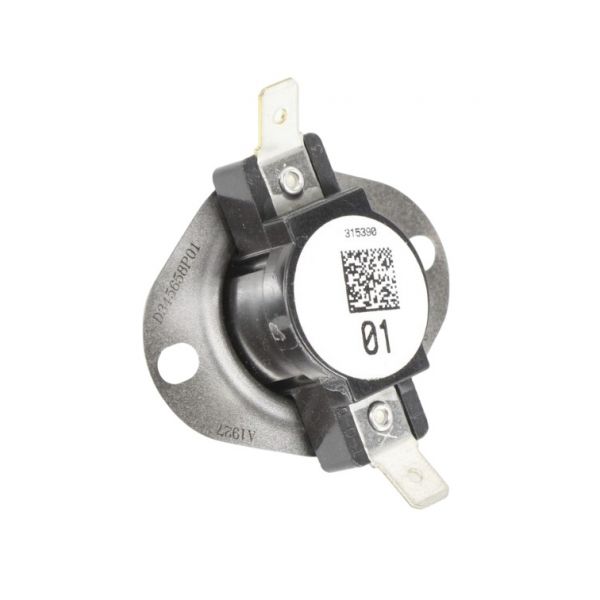

Trane SWT3937 Thermal Switch Open 125°F/Close 95°F
Special Price $48.71 Regular Price $63.32
In stock
SKU
SWT3937
The Trane SWT3937 Thermal Switch as well is an essential component connected in the HVAC systems that helps in monitoring temperature to avoid overheating. This switch has an enclosed disc and quick-connect terminals and is designed in an SPST configuration, with 5.8 FLA and 34.8 LRA at 120 VAC. It has an auto reset that cycles the temperature between open and close positions of 125°F and 95°F respectively with a variation of ± 5°F. With the power rating of 125 VA and the life cycle of 100,000 operations, the device guarantees its efficiency and durability.
Manufacturer:
Specifications
- Length: 1"
- Current Rating: 5.8 FLA
- Life Cycle: 100000
- Mount: Airstream Mount
- Number of Poles: 1
- Power Rating: 125 VA at 120 to 240 VAC
- Temperature Rating: 135°F
- Terminal Type: Quick Connect
- Voltage: 120 VAC
- Height: 2.29"
- Width: 2"
- Contact Arrangement: SPST
- Current Rating: 5.8 FLA, 34.8 LRA at 120 VAC
- Enclosure Type: Enclosed Disc
- Function: Auto Reset
- Locked Rotor Current: 34.8A
- Open Temperature: 125°F
- Reset Temperature: 95°F
- Switch Tolerance (°F): ±5 Open
- ±5 Close
- Terminal Material: Tin Plated Brass
- Type: Thermal Limit Switch
- Weight: 0.1lb
